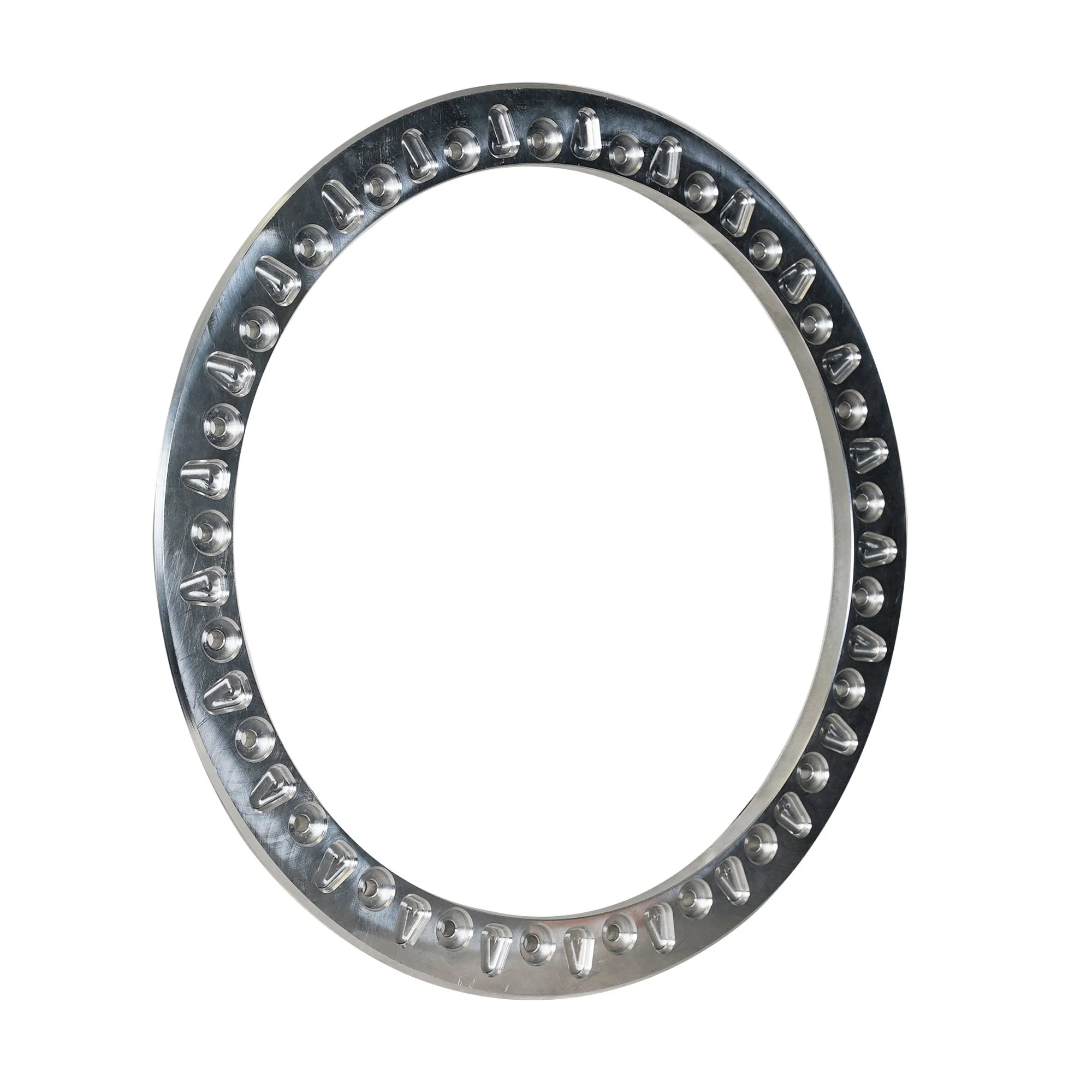

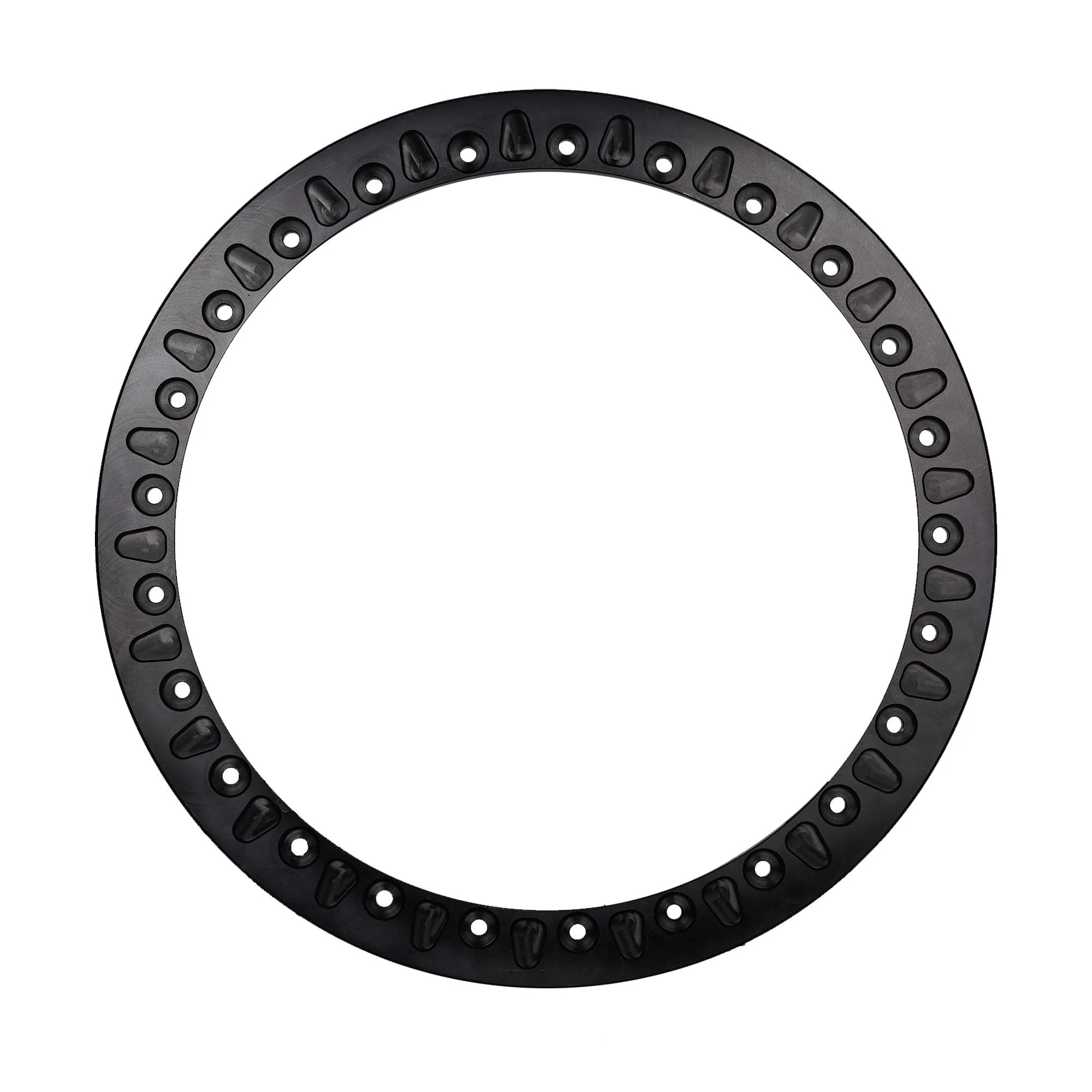

RRW True Functional Beadlock Rings - 6061-T6 Machined Billet

Take your off-road capability to the next level with the RRW True Functional Beadlock Rings, precision machined from 6061-T6 billet aluminum for serious trail performance. Designed specifically for RRW Hybrid 17 Inch (-H) wheels, these functional beadlock rings allow you to securely clamp your tire bead for extreme off-road conditions where airing down is essential.

Built for strength, durability, and aggressive styling, these rings transform your RRW hybrid wheels into true beadlock wheels for maximum traction on demanding terrain.

⚠️ Important: These beadlock rings are for OFF-ROAD USE ONLY and are NOT DOT approved for highway use.

Features

• True Functional Beadlock Design: Converts RRW hybrid (-H) wheels into true beadlock wheels for maximum tire retention when running low tire pressure.
• 6061-T6 Billet Construction: Machined from aircraft-grade aluminum for exceptional strength and durability in harsh off-road environments.
• Knurled Tire Bite Surface (V2 Design): Improves grip between the ring and tire bead to help prevent tire slip under extreme conditions.
• Precision CNC Machining: Tight tolerances ensure proper fitment and consistent clamping force.
• 5/8" Thick Construction: Heavy-duty design built to withstand aggressive off-road use.
• Multiple Finish Options: Available in raw billet aluminum or black anodized finishes.
• Complete Hardware Included: Includes high-strength Grade 10.9 hardware for secure installation.

Specifications

• Material: 6061-T6 Billet Aluminum
• Thickness: 5/8"
• Manufacturing: CNC machined
• Surface: Knurled bead contact surface (V2 design)
• Finish Options:

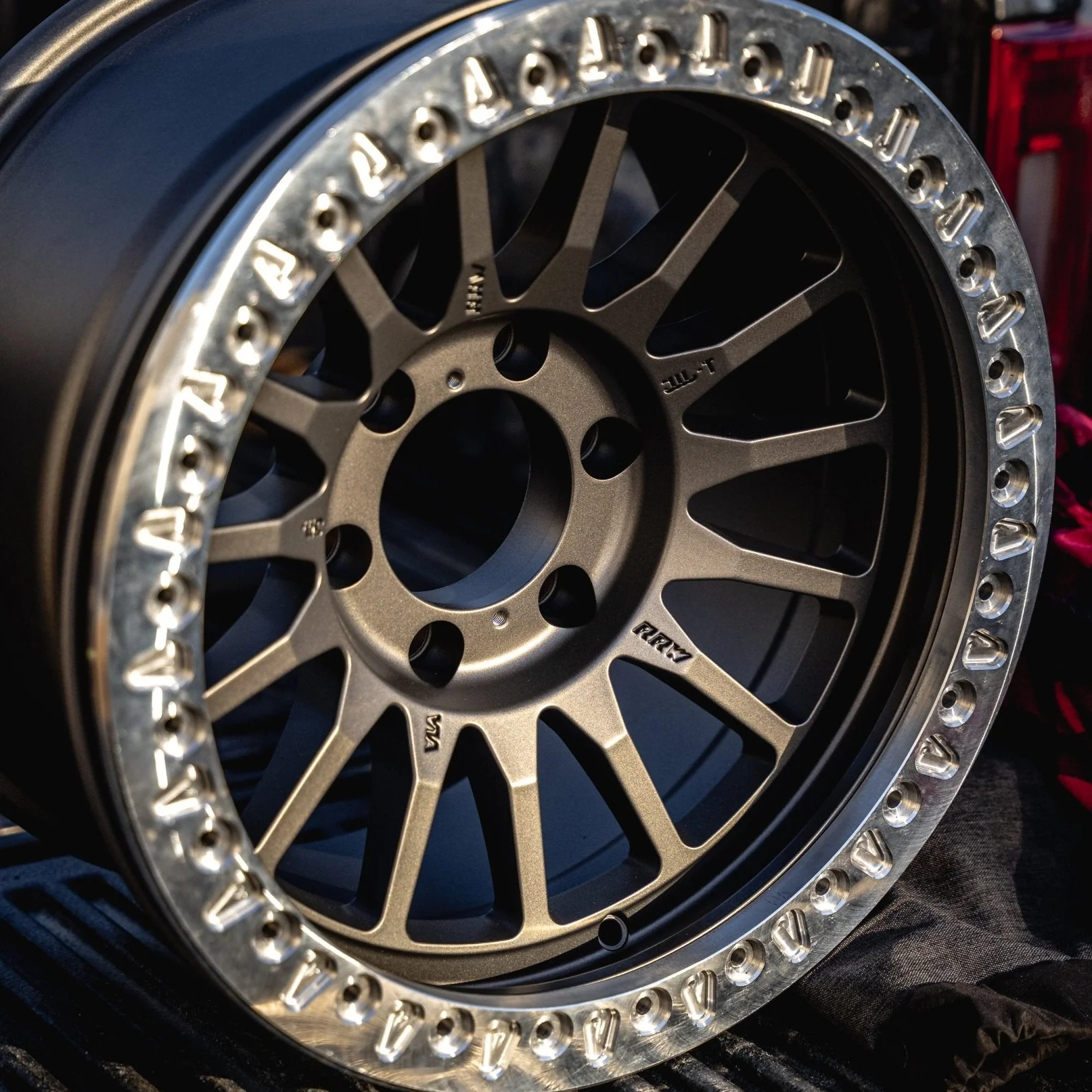

  • Raw Billet

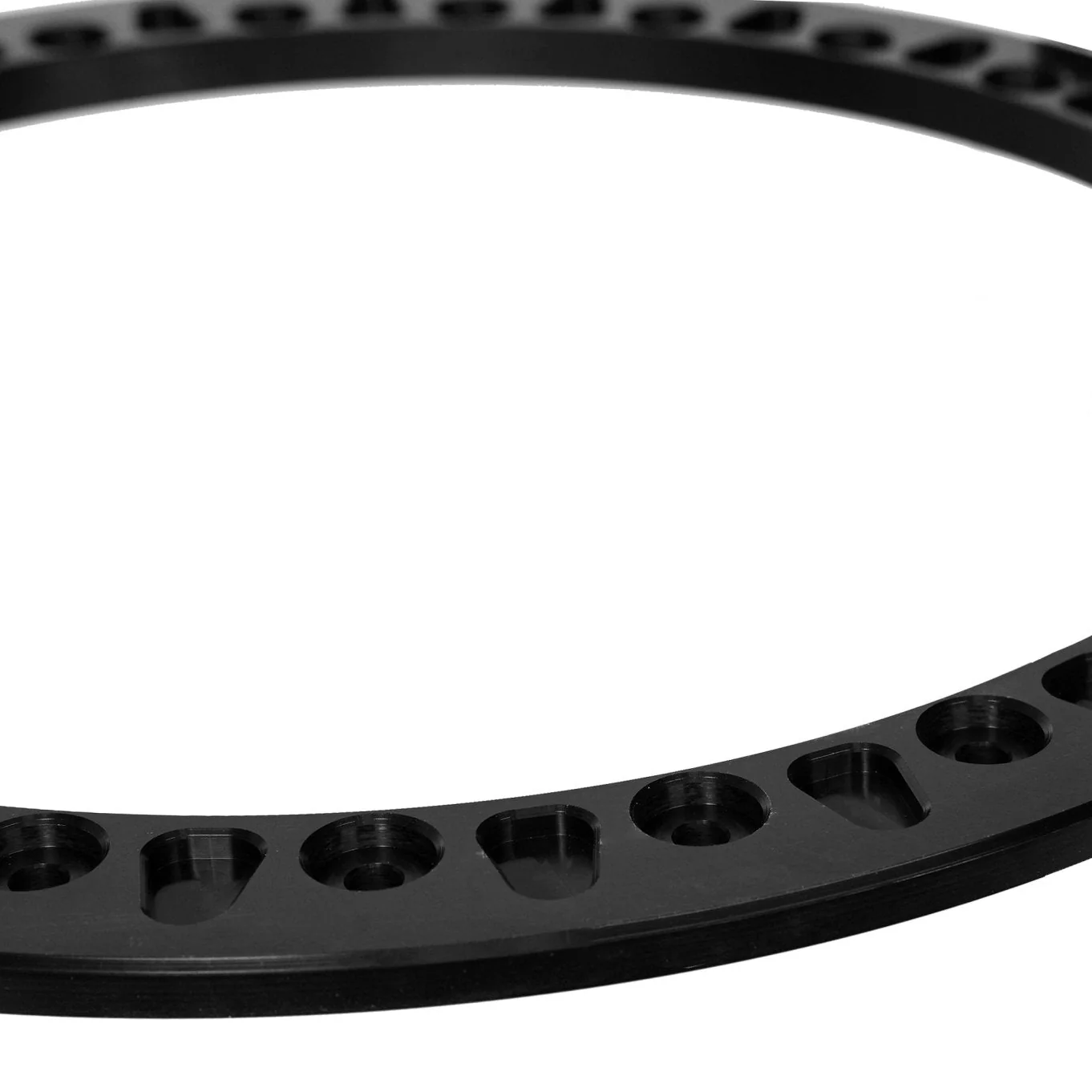

  • Black Anodized
• Hardware Included:
  • (25) M8 Grade 10.9 bolts
  • Gold or black zinc finish
• Weight: Approx. 3 lbs 10 oz (without hardware)
• Sold: Individually

• Fits all of RRW 17" -H (hybrid lip) wheels

Wheel Compatibility

Designed exclusively for RRW Hybrid 17 Inch (-H) wheels:

• RRW RR2-H
• RRW RR5-H
• RRW RR6-H
• RRW RR7-H
• RRW Hybrid MonoForged wheels

(Not compatible with non-RRW wheels.)

Installation Requirements

Installation Notes:

• Torque bolts in a star pattern
• First pass torque to 7 ft-lbs
• Final torque to 14 ft-lbs
• DO NOT over-torque
• Improper torque may damage threads or hardware

Professional installation recommended for beadlock applications.

Important Safety Information

⚠️ FOR OFF-ROAD USE ONLY
These beadlock rings are NOT DOT approved and are not intended for highway use.

Use only in off-road environments where beadlock wheels are permitted. Always verify local regulations before installation.

Includes

• (1) RRW True Beadlock Ring
• (25) M8 Grade 10.9 mounting bolts

Why Run True Beadlocks?

True beadlocks allow you to safely run lower tire pressures off-road, increasing traction and ride comfort on difficult terrain.

Benefits include:

• Improved traction when aired down
• Reduced risk of debeading tires
• Better performance on rocks, sand, and technical trails
• Increased sidewall flex for off-road grip

Summary

The RRW True Functional Beadlock Rings are the ultimate upgrade for serious off-road enthusiasts looking to maximize traction and durability. With billet aluminum construction, precision engineering, and true beadlock functionality, these rings are built for drivers who demand real performance from their equipment.

Ring Comparison Guide

RRW Hybrid (-H) wheels allow you to customize your setup depending on how you use your vehicle. Below is a quick comparison to help you choose the right ring for your build.

Feature	Protection Ring V1	Protection Ring V2	True Beadlock Ring
Primary Purpose	Wheel lip protection	Wheel lip protection	True beadlock functionality
Off-Road Protection	Yes	Yes	Yes
Street Legal	Yes	Yes	No (Off-road only)
Material	Steel or Aluminum	6061-T6 Billet Aluminum	6061-T6 Billet Aluminum
Tire Clamping	No	No	Yes
Replaceable	Yes	Yes	Yes
Hardware Included	Yes	Yes	Yes
Best For	Daily drivers & trail rigs	Premium protection & style	Serious off-road use
DOT Approved	Yes	Yes	No



Which RRW Ring Should You Choose?

Protection Rings (V1 or V2):
Best for customers who want:

• Wheel protection from rocks and trail damage
• Beadlock styling without beadlock function
• Daily driving and overland builds
• Replaceable wear protection

True Beadlock Rings:
Best for customers who:

• Air down tires for serious off-road use
• Rock crawl or run difficult trails
• Want maximum tire retention
• Have a dedicated off-road vehicle

⚠️ True beadlock rings are not DOT approved and should only be used off-road.

Aspire Recommendation

For most daily driven Tacoma, 4Runner, GX, and Bronco builds, we recommend Protection Rings.

For dedicated trail rigs or extreme off-road use, True Beadlock Rings provide maximum performance.
