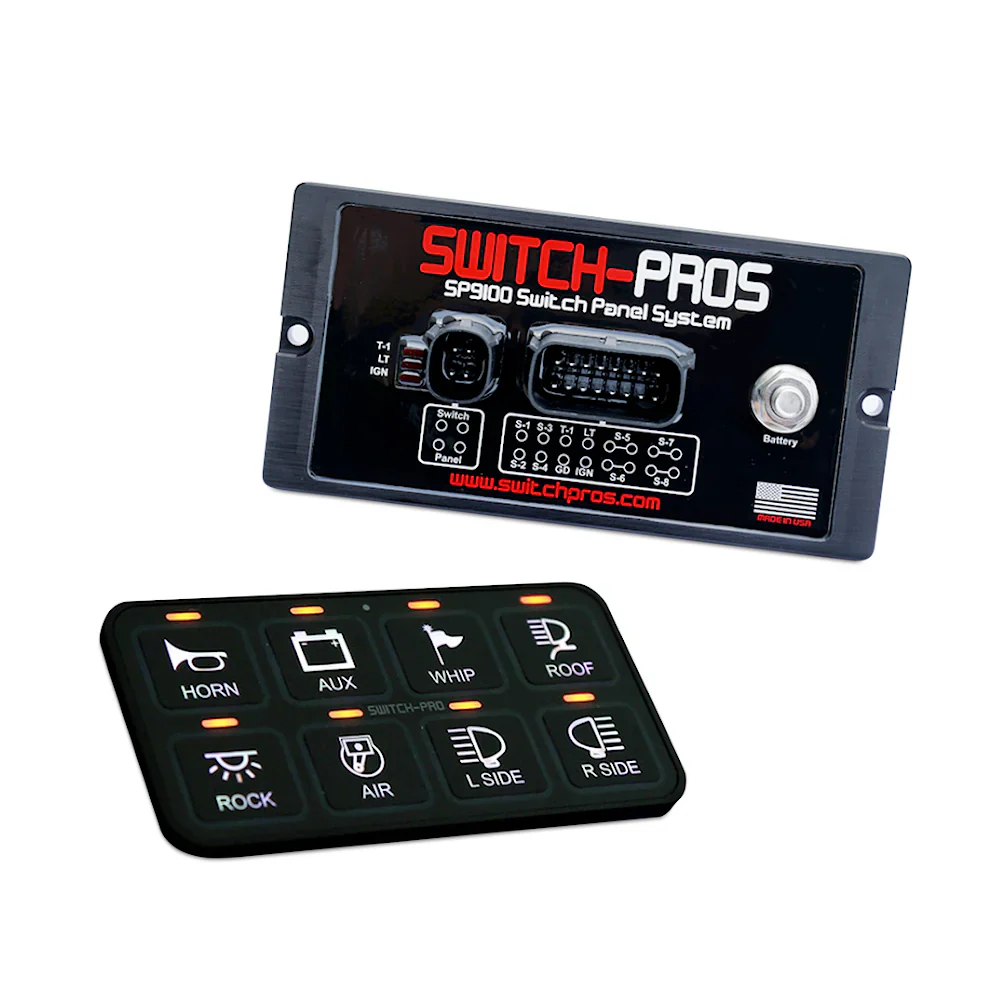

Switch-Pros SP9100 Switch Panel Power System

Introducing the Switch Pros SP9100 Switch Panel Power System – a rugged, high-performance solution engineered to keep your electrical operations smooth and reliable no matter the terrain or conditions. Designed with both functionality and ease-of-use in mind, this comprehensive system combines a feature-packed Switch Panel with a robust Power Module to bring you unparalleled control and customization in vehicular and off-road applications.

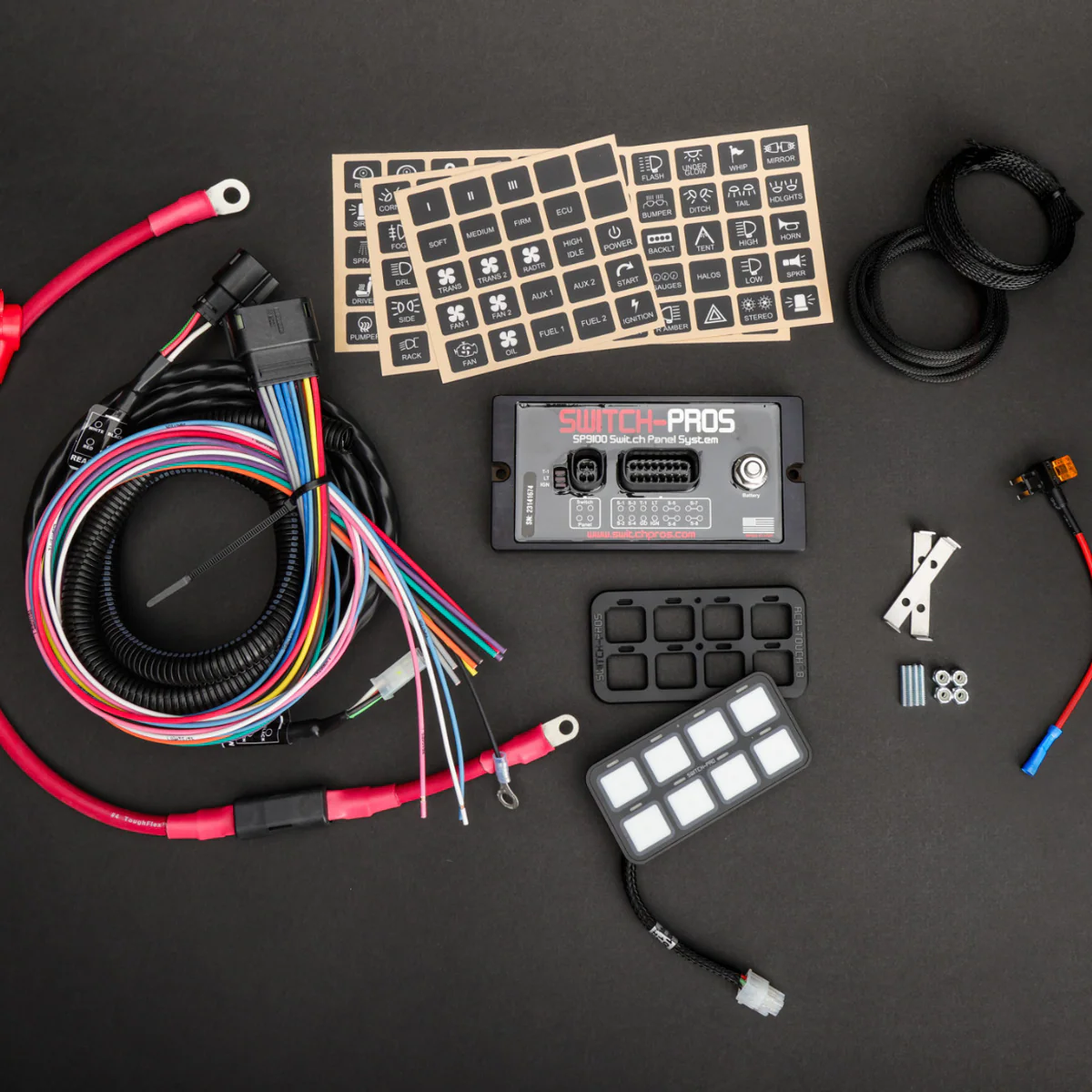

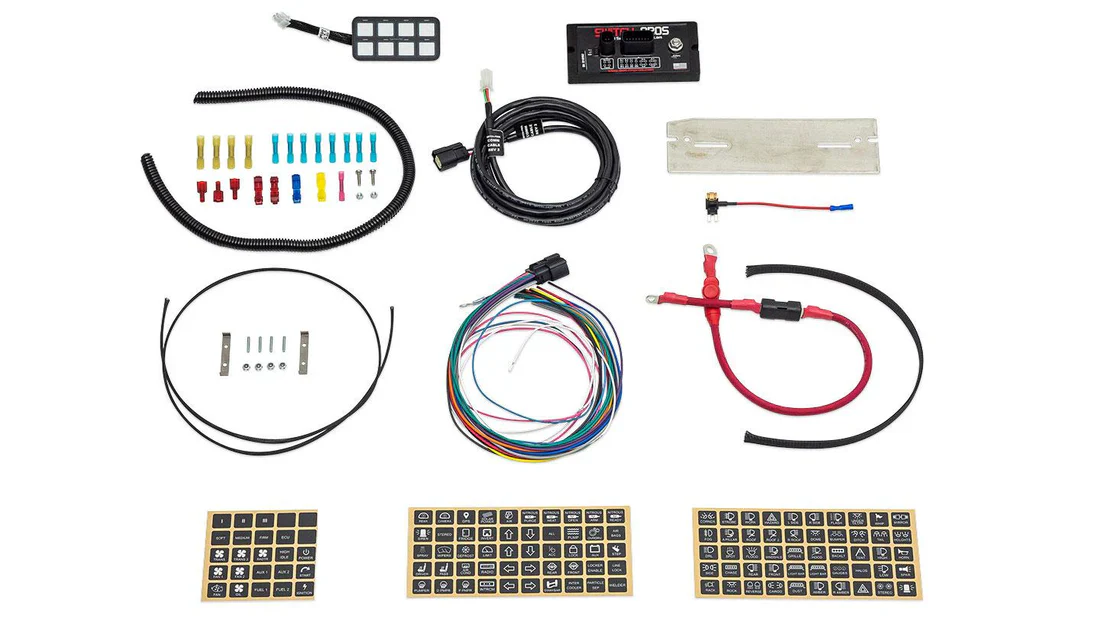

Includes

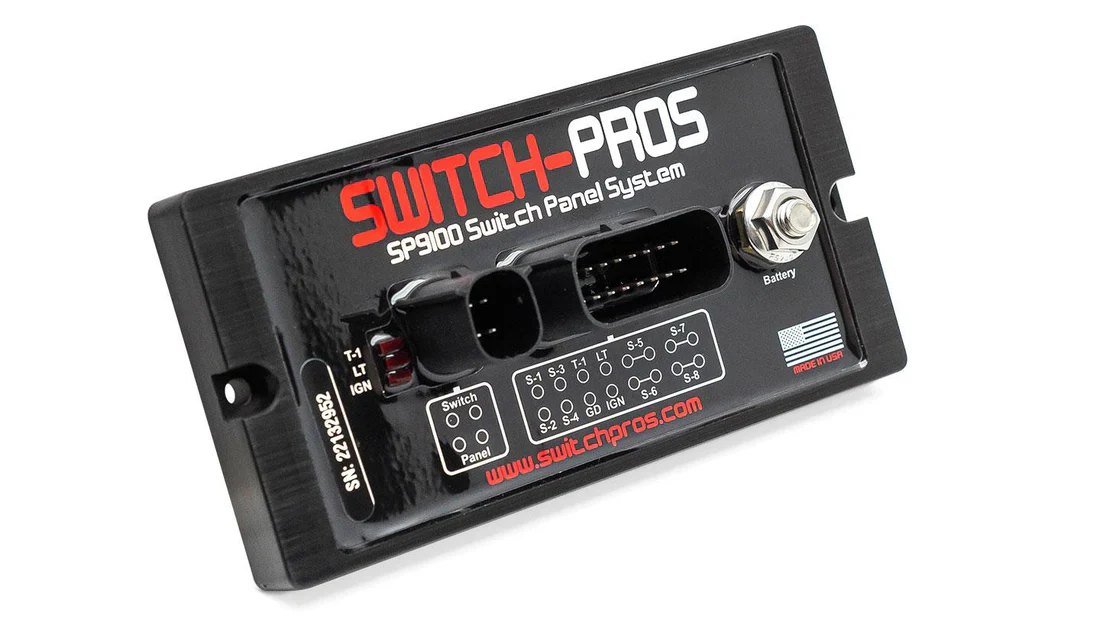

• Switch Panel and Power Module: The core of your system, built to handle demanding electrical loads.

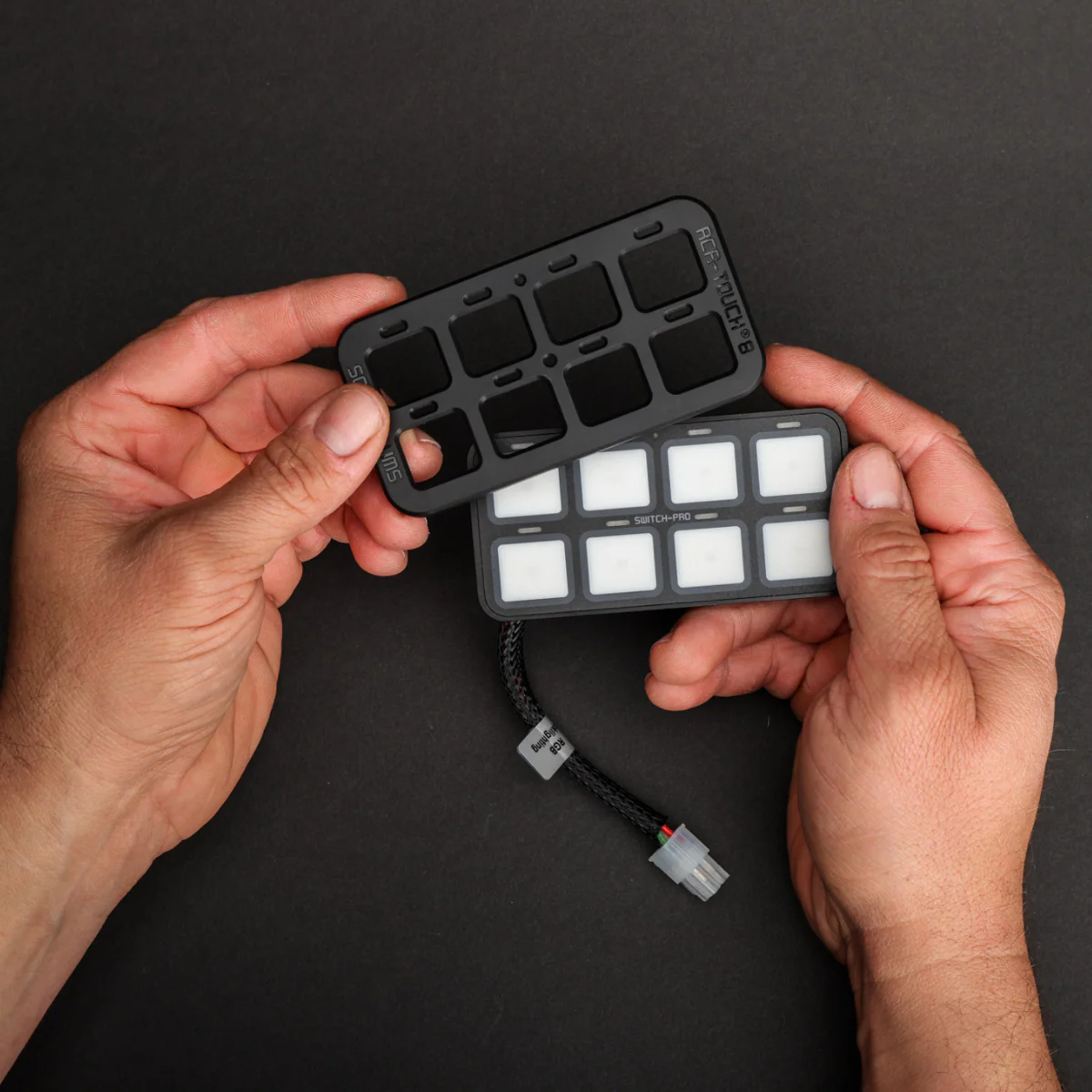

• RCR-Touch®8 Cover: Specially designed cover that snaps on for ease of switch selection, even when wearing gloves or riding in rough conditions. (United States Design Patent No. US D922,969 S)

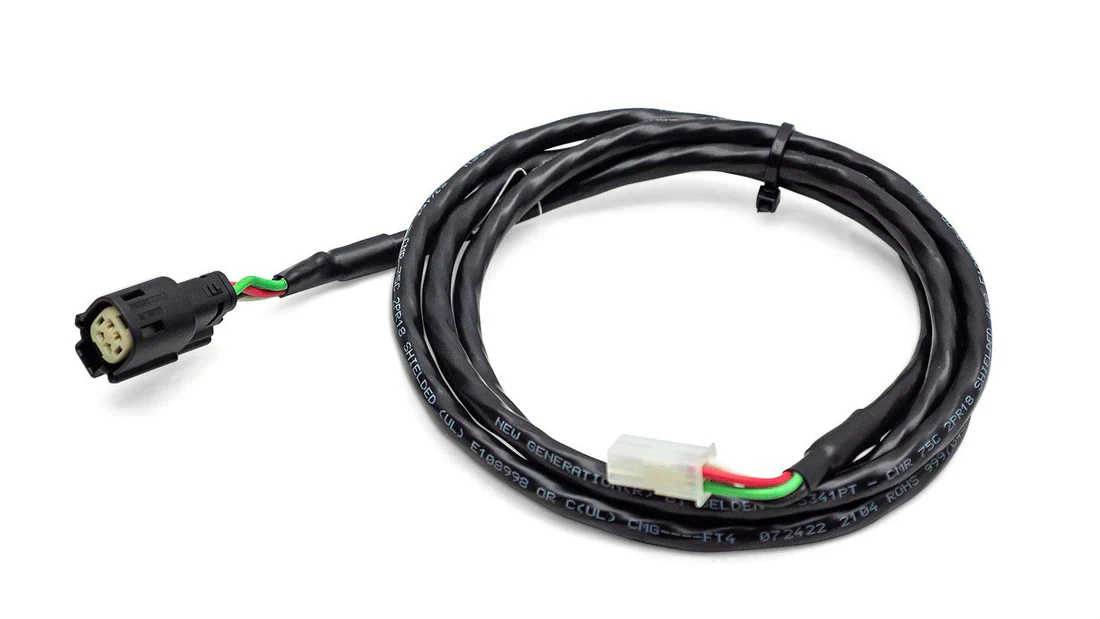

• 11’ Communication Cable: Ensures a secure and reliable connection between the Switch Panel and the Power Module.
• Power Cable with 125A Inline Fuse: Provides robust power delivery with built-in protection.

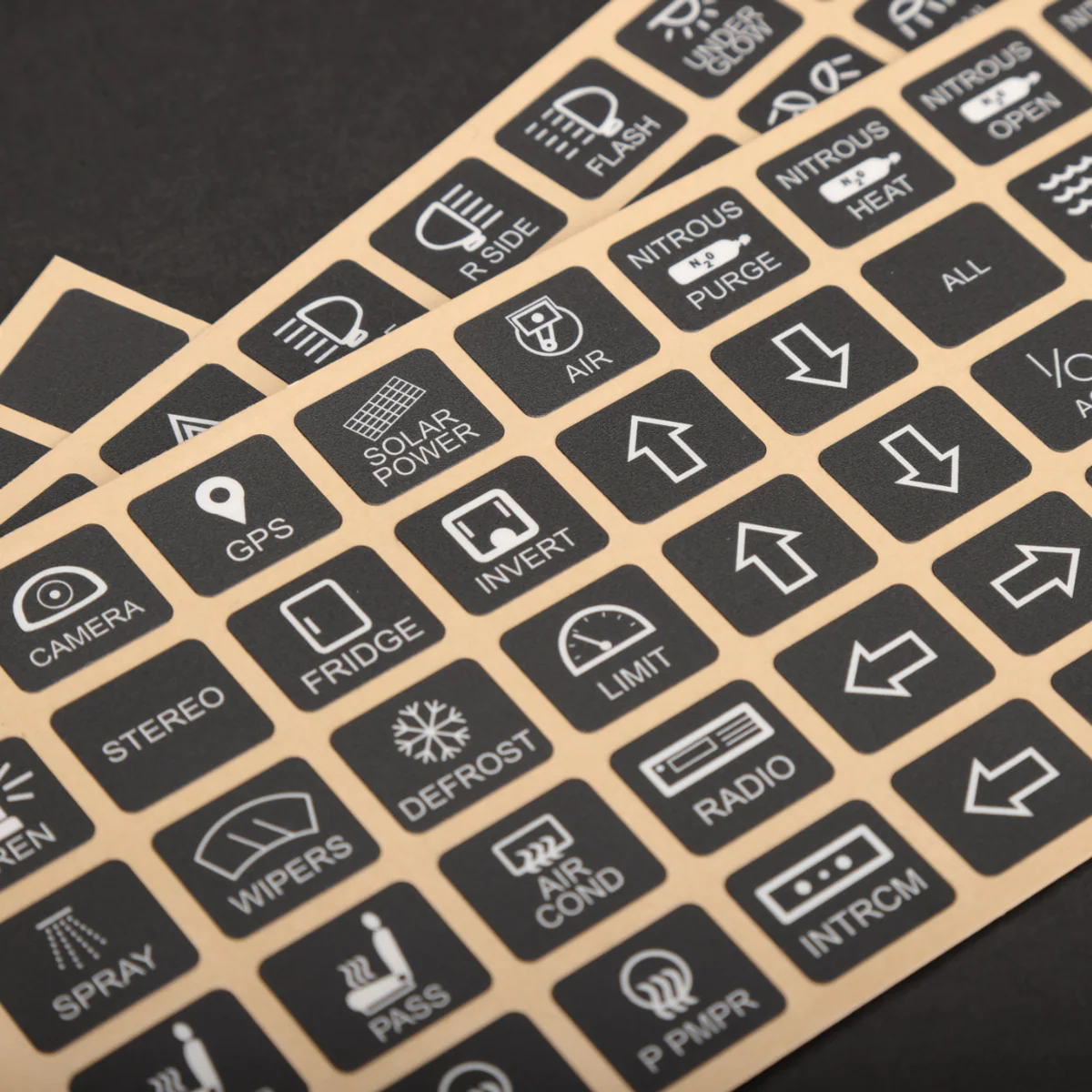

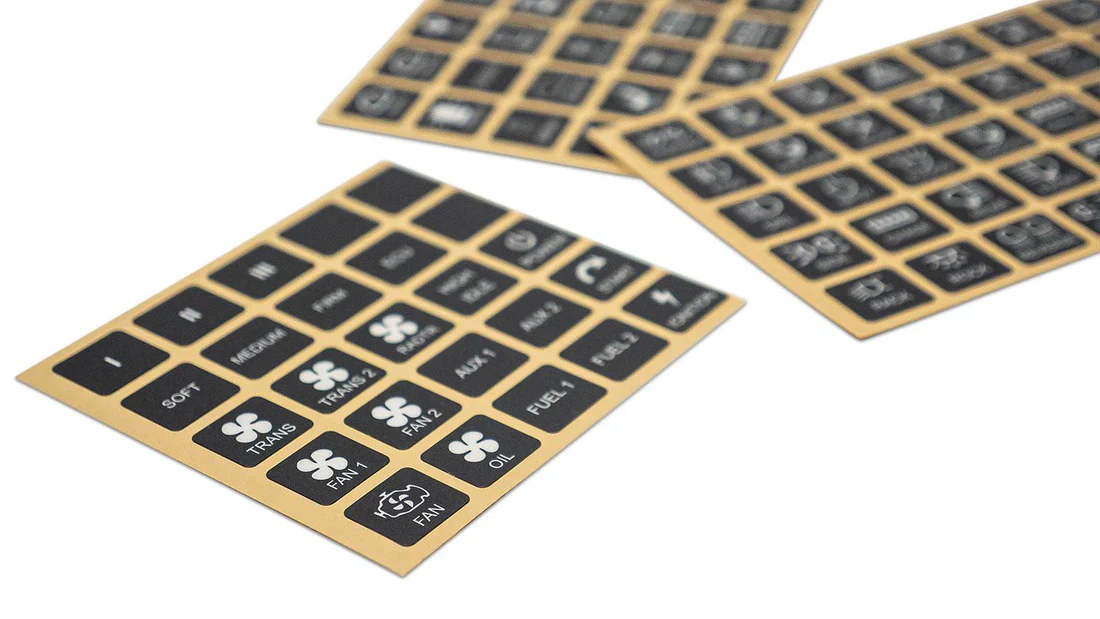

• 125 User Selectable Legends (Horizontal Orientation): Customize the display for quick reference.

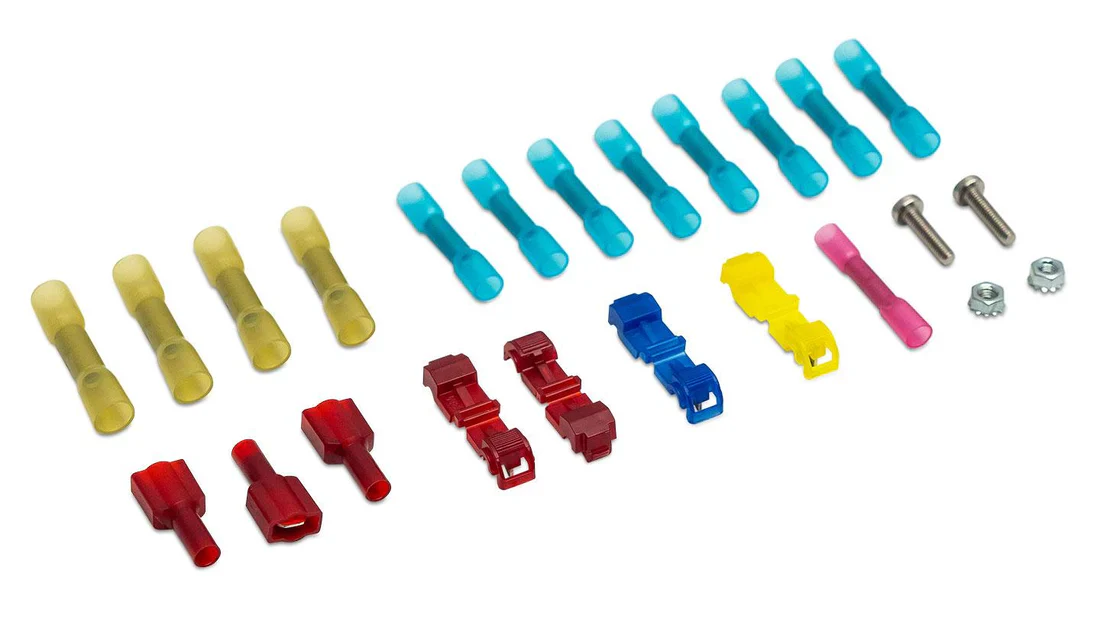

• Installation Brackets and Hardware: Everything you need for a straightforward installation.

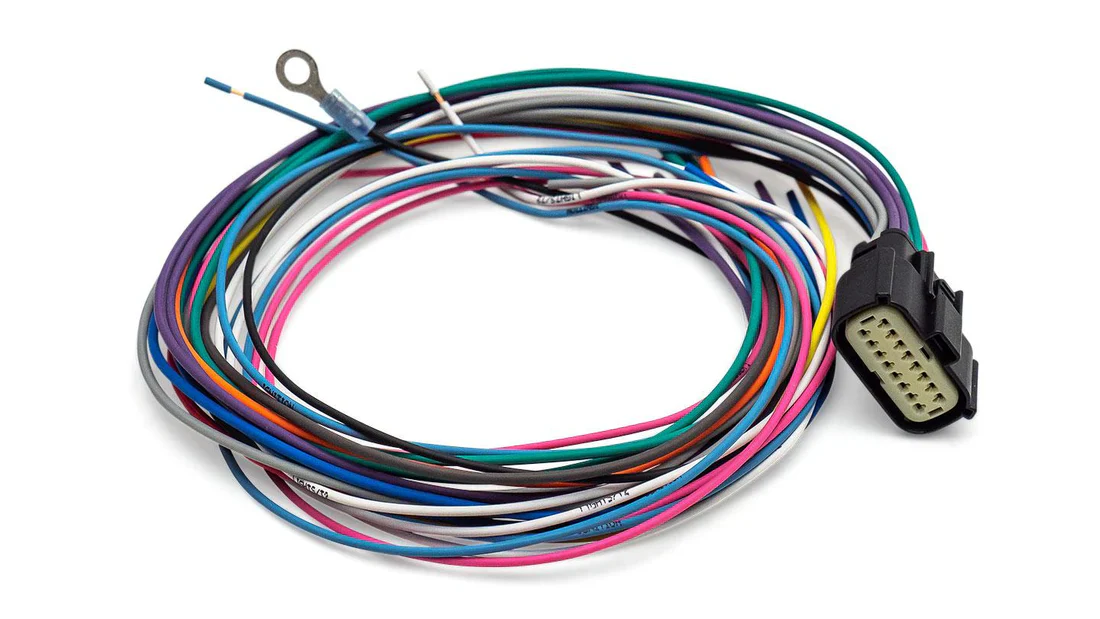

• 16-Pin Color Coded Output Harness: Simplifies wiring and enhances system organization.
• Detailed Installation Guide: Step-by-step instructions to ensure correct and easy setup.

Features

• RGB Backlighting: Illuminate your panel with vibrant colors for improved visibility and style.
• Built-in Bluetooth Module: Seamlessly connect with the free Switch-Pros App to program and operate your panel from any iOS or Android device.
• Battery Voltage Readout: Monitor your battery’s performance directly from the app.
• Enhanced LED Indicators:
  • Orange LED Switch Indicators: Quickly verify your switch status.
  • LED Input Status Indicators: Streamline troubleshooting directly on the power module.
• Versatile Control Options:
  • Master Mode: Enable one-touch activation to control up to 7 other switches simultaneously.
  • Switch Configurations: Choose between On/Off or Momentary modes, along with ignition or battery input.
• Preset Dimming Function with Memory: Effortlessly adjust brightness from 100% down to 10% with memory recall for consistent settings.
• Flash or Strobe Options: Select from user-customizable strobe patterns for quick signaling.
• Automatic Power-Up: System automatically activates upon vehicle start up for convenience.
• Time Delay Off and Low Voltage Disconnect: Enhance the system’s reliability and protect your equipment.
• No Bulky Relay Box: The sleek design ensures installation is streamlined and space-efficient.
• Dual External Trigger Inputs: Each trigger can activate up to four outputs with configurable Active High or Active Low settings.
• Daisy Chain Capability: Connect up to 3 Switch Panels to a single Power Module for expanded control.
• Rugged & Ready for the Elements:

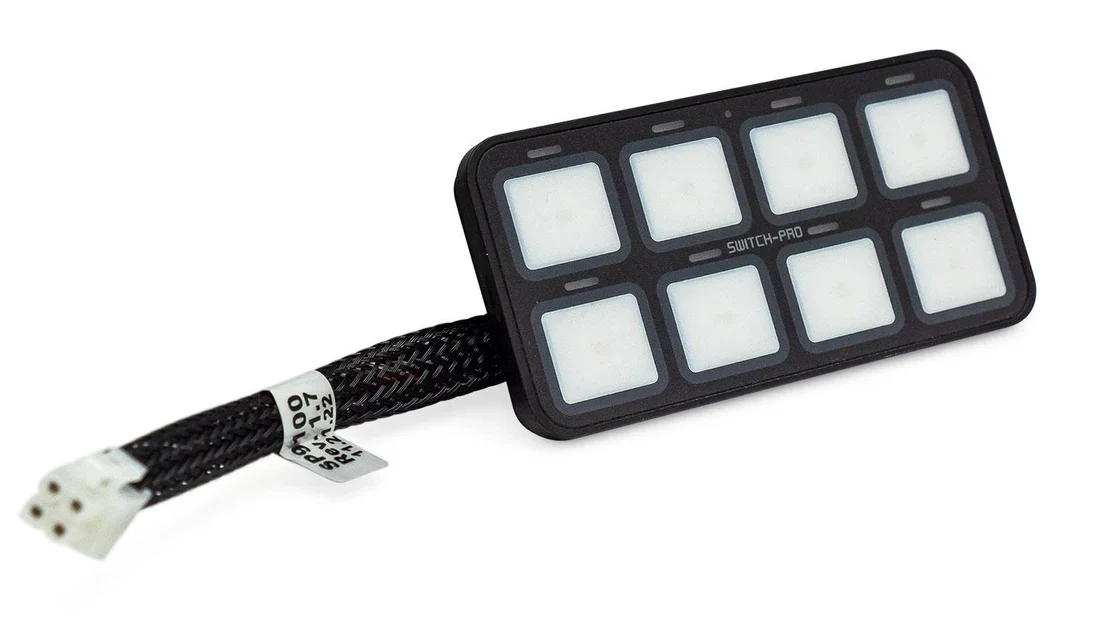

  • Switch Panel: Measures 4” L x 2” W x 0.375” H.

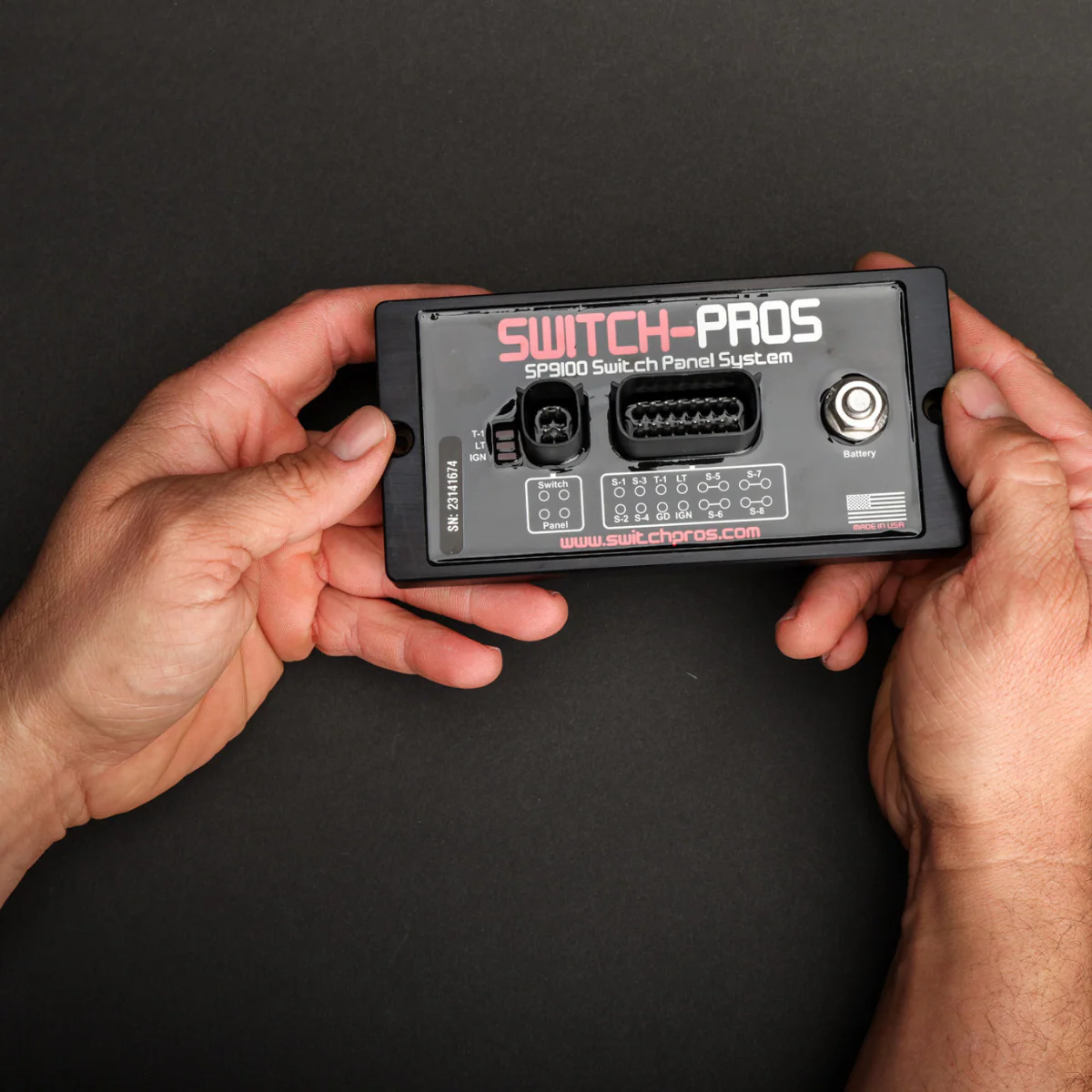

  • Power Module: Compact design at 6” L x 3” W x 0.5” H (excluding connectors) with an under-hood operating range from -40°C to 125°C.
  • Waterproof Rating of IP67: Both the Switch Panel and Power Module are sealed to protect against harsh weather and operating conditions.

Proudly manufactured in the United States, the SP9100 Switch Panel Power System exemplifies robust design, precision engineering, and the durability required for professional and recreational applications alike.

Whether you’re outfitting a high-performance vehicle, an off-road rig, or any custom setup requiring powerful, customizable switching control, the Switch Pros SP9100 offers an all-in-one solution that doesn’t compromise on quality or functionality.

Experience the next level in switch panel technology – where rugged reliability meets innovative control, all in one compact, versatile package.
