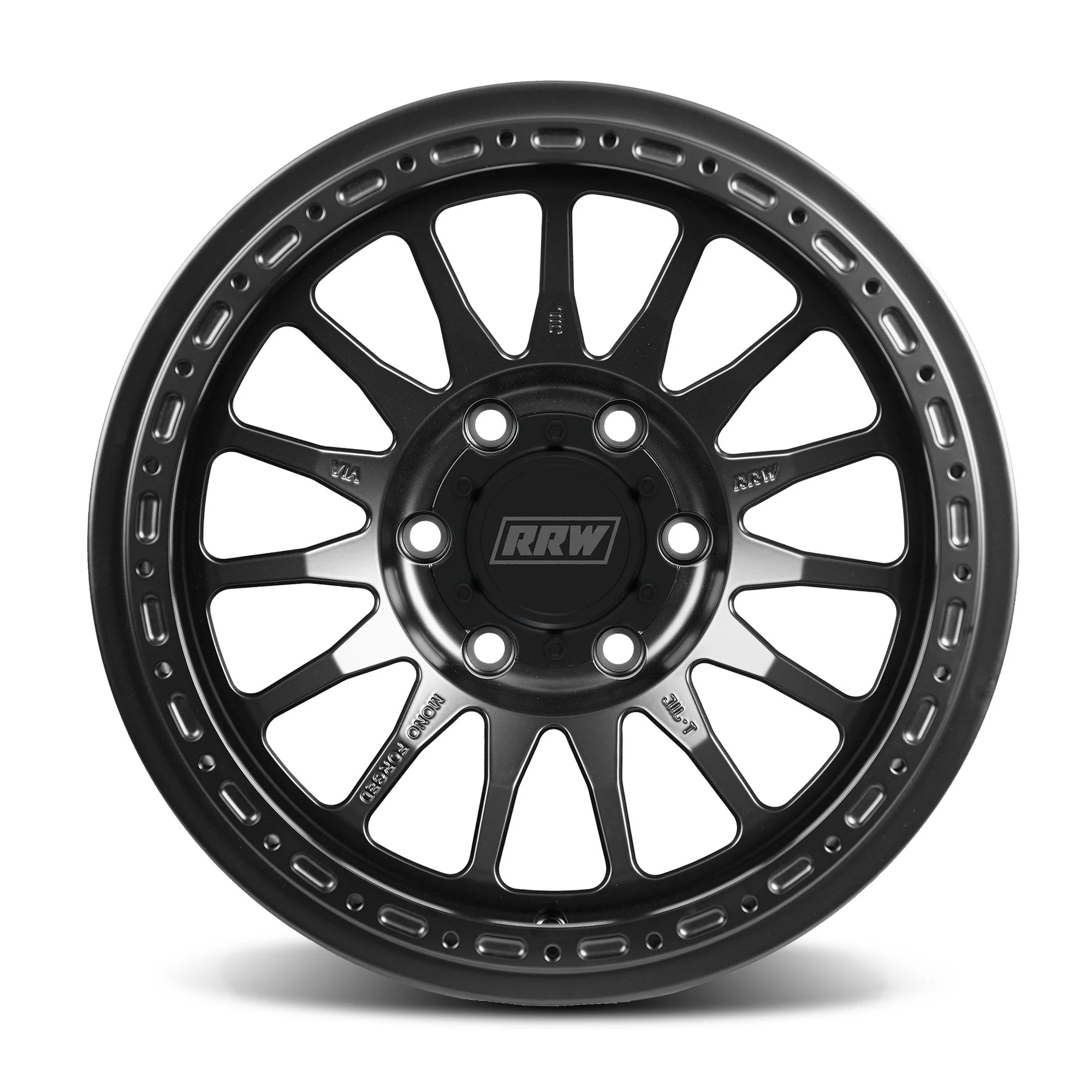

RRW RS7-H Hybrid Monoforged Wheel - Matte Black

Upgrade your truck or SUV with the RRW RS7-H Hybrid Monoforged Wheel in Matte Black, a premium forged wheel designed to deliver maximum strength, reduced weight, and aggressive off-road styling. Built from aerospace-grade 6061-T6 aluminum, the RS7-H delivers the durability expected from a forged wheel while maintaining a lightweight design that improves handling and performance.

Designed around RRW’s Hybrid (-H) platform, this wheel allows you to run a clean street setup or upgrade with protection rings or true beadlock rings depending on your off-road needs.

Features

• True Monoforged Construction: Manufactured from forged 6061-T6 aerospace-grade aluminum for superior strength compared to traditional cast wheels.
• Hybrid Beadlock System: Deep stepped lip allows compatibility with RRW Protection Rings, Billet Protection Rings, or True Beadlock Rings.
• Lightweight Performance: Approximately 15–20% lighter than comparable cast wheels, helping improve suspension response and vehicle dynamics.
• Enhanced Thread Engagement: Hybrid (-H) design features deeper lug pockets providing approximately 50% more thread engagement for safer installation.
• Trail-Ready Strength: Engineered with a 2,500 lb load rating capable of supporting fully built off-road and overland vehicles.
• Optimized Structural Design: Refined chamfering and FEA-tested design improves load distribution and durability.
• Durable Matte Black Finish: A clean, aggressive finish designed to withstand off-road use while maintaining a stealth appearance.
• Multi-Platform Fitment: Available in multiple bolt patterns and offsets to support Toyota, Ford, and GM applications.
• TPMS Compatible: Designed to work with most factory TPMS sensors.
• RRW ET Lug Compatible: Designed for use with RRW Extended Thread lug nuts for maximum stud engagement.
• ABS Embossed Center Caps Included: RRW branded center caps included with every wheel.

Specifications

Available Sizes & Bolt Patterns:

5x150

• 17x8.5 +0

6x135

• 17x8.5 +0

6x139.7

• 17x8 +12 / +18
• 17x8.5 +25 / -25
• 18x8.5 +25

Center Bore:

• 110.1mm (5x150 – Toyota Tundra 2nd Gen)
• 87.1mm (6x135 – Ford F150 / Raptor)
• 95.1mm (+12 / +18 / +25 – 2024+ Toyota platforms)
• 106.1mm (-25 – Tacoma / 4Runner / GX470)

Additional Specs:

• Material: Forged 6061-T6 aluminum
• Load Rating: 2,500 lbs
• Certification: JWL / VIA certified
• TPMS Compatible: Yes
• Finish: Matte Black

Vehicle Fitment

5x150 Fitment:

• Toyota Tundra (2007-2021)

6x135 Fitment:

• Ford F150
• Ford Raptor

6x139.7 (+12 / +18 / +25):

• Toyota Tacoma (2024+)
• Toyota Tundra (2022+)
• Toyota 4Runner (2024+)
• Toyota Land Cruiser 250
• Lexus GX550
• Ford Ranger
• Ford Bronco

6x139.7 (-25):

• Toyota Tacoma (2005-2023)
• Toyota 4Runner (2010-2024)
• Chevy Silverado
• Lexus GX470

(Fitment depends on tire size, suspension setup, and offset choice.)

Customization Options

RRW Hybrid wheels allow multiple configurations depending on your build:

• Run as a standard wheel
• Add RRW accessory bolts (black or gold)
• Add RRW Protection Rings for wheel lip protection
• Upgrade to RRW True Beadlock Rings (off-road use only)

Protection rings can be replaced after heavy trail use to help protect your wheels from damage.

Lug Nut Requirements

RRW wheels require aftermarket 60° conical seat lug nuts. Factory lug nuts are not compatible.

We recommend RRW ET (Extended Thread) spline lug nuts to ensure proper seating and maximum thread engagement, especially important for Toyota applications with shorter factory studs.

Closed-end lug nuts are recommended for most daily driven and off-road vehicles.

What's Included

• RRW RS7-H Hybrid Monoforged Wheel
• RRW ABS Center Cap

Shipping Information

All RRW wheels ship via FedEx or UPS Ground and are carefully packaged to ensure safe delivery.

Important Notes

⚠️ Wheels equipped with True Beadlock Rings are for OFF-ROAD USE ONLY and are not DOT approved for highway use.

Product photos may show optional accessories sold separately.

Summary

The RRW RS7-H Hybrid Monoforged Wheel in Matte Black delivers forged strength, lightweight performance, and modular off-road capability in a clean, aggressive design. Built for Toyota, Ford, and GM platforms, this wheel is ideal for daily drivers, overland builds, and serious trail rigs.
