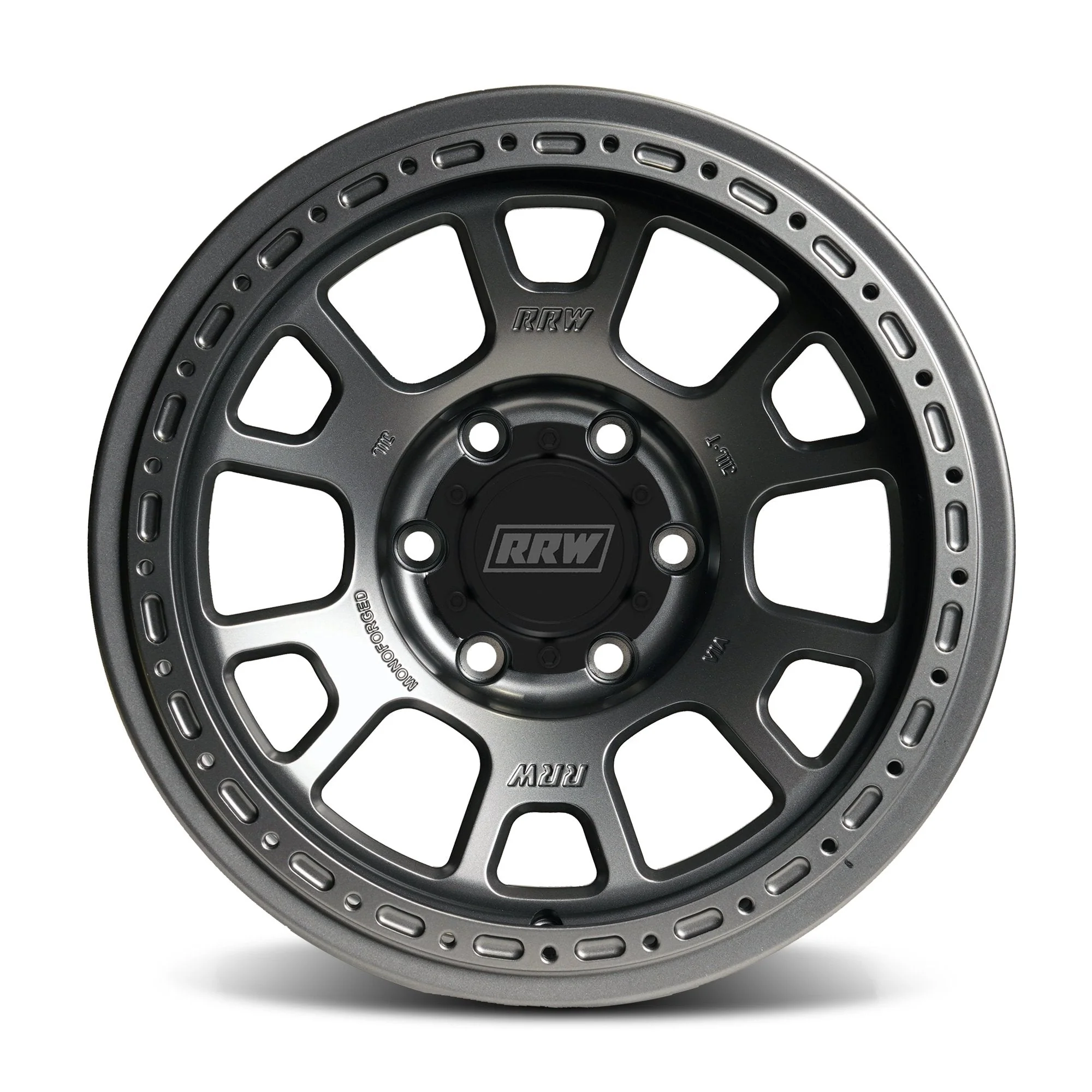

RRW RS5-H Hybrid Monoforged Wheel - Matte Gunmetal

Upgrade your Tacoma, 4Runner, or GX build with the RRW RS5-H Hybrid Monoforged Wheel in Matte Gunmetal, a premium forged wheel designed to deliver exceptional strength, reduced weight, and aggressive off-road styling. Manufactured from aerospace-grade 6061-T6 aluminum, this wheel offers superior durability while remaining significantly lighter than traditional cast wheels.

Built on RRW’s Hybrid (-H) platform, the RS5-H allows you to run a clean street setup or upgrade with protection rings or true beadlock rings depending on your off-road goals.

Features

• True Monoforged Construction: Manufactured from forged 6061-T6 aerospace-grade aluminum for superior durability and strength compared to cast wheels.
• Hybrid Beadlock Compatibility: Deep stepped lip allows installation of RRW Protection Rings, Billet Protection Rings, or True Beadlock Rings.
• Lightweight Forged Performance: Approximately 15–20% lighter than comparable cast wheels, improving handling and suspension performance.
• Enhanced Thread Engagement: Hybrid (-H) design features deeper lug holes providing approximately 50% more thread engagement for improved installation safety.
• Trail-Ready Strength: Engineered to a 2,500 lb load rating suitable for fully built overland and off-road vehicles.
• Optimized Structural Design: Larger chamfers and FEA-tested geometry improve load distribution and durability.
• Matte Gunmetal Finish: Durable off-road inspired finish that delivers a modern aggressive appearance while resisting wear.
• TPMS Compatible: Designed to work with most factory tire pressure monitoring systems.
• RRW ET Lug Compatible: Designed for use with RRW Extended Thread lug nuts for maximum thread engagement.
• ABS Embossed Center Caps Included: RRW branded center caps included as standard equipment.

Specifications

• Wheel Size: 17x8.5
• Bolt Pattern: 6x5.5 / 6x139.7
• Center Bore: 106.1mm (Toyota hub-centric)
• Material: Forged 6061-T6 aluminum
• Load Rating: 2,500 lbs
• Finish: Matte Gunmetal
• Certification: JWL / VIA certified
• TPMS Compatible: Yes

Vehicle Fitment

Designed for:

• Toyota Tacoma (2005–2023)
• Toyota 4Runner (2010–2024)
• Toyota FJ Cruiser
• Lexus GX470
• Chevy Silverado 1500

(Fitment depends on suspension, tire size, and offset configuration.)

Customization Options

RRW Hybrid wheels allow multiple configurations depending on your build:

• Run as a standard wheel
• Add RRW accessory bolts (black or gold)
• Add RRW Protection Rings for wheel lip protection
• Upgrade to RRW True Beadlock Rings (off-road use only)

Protection rings can be replaced after heavy trail use to help protect your wheels.

Lug Nut Requirements

RRW wheels require aftermarket 60° conical seat lug nuts. Factory Toyota lug nuts are not compatible.

We recommend RRW ET (Extended Thread) spline lug nuts to ensure proper seating and maximum thread engagement, especially important for Toyota applications with shorter wheel studs.

Closed-end lug nuts are recommended for most daily driven and off-road builds.

What's Included

• RRW RS5-H Monoforged Wheel
• RRW ABS Center Cap

Shipping Information

All RRW wheels ship via FedEx or UPS Ground and are securely packaged to ensure safe delivery.

Important Notes

⚠️ Wheels equipped with True Beadlock Rings are for OFF-ROAD USE ONLY and are not DOT approved for highway use.

Product images may show optional accessories sold separately.

Summary

The RRW RS5-H Hybrid Monoforged Wheel in Matte Gunmetal delivers forged strength, lightweight performance, and modular off-road capability in a clean, aggressive design. Built for Tacoma, 4Runner, and GX platforms, this wheel is ideal for daily drivers, overland builds, and serious trail rigs.
