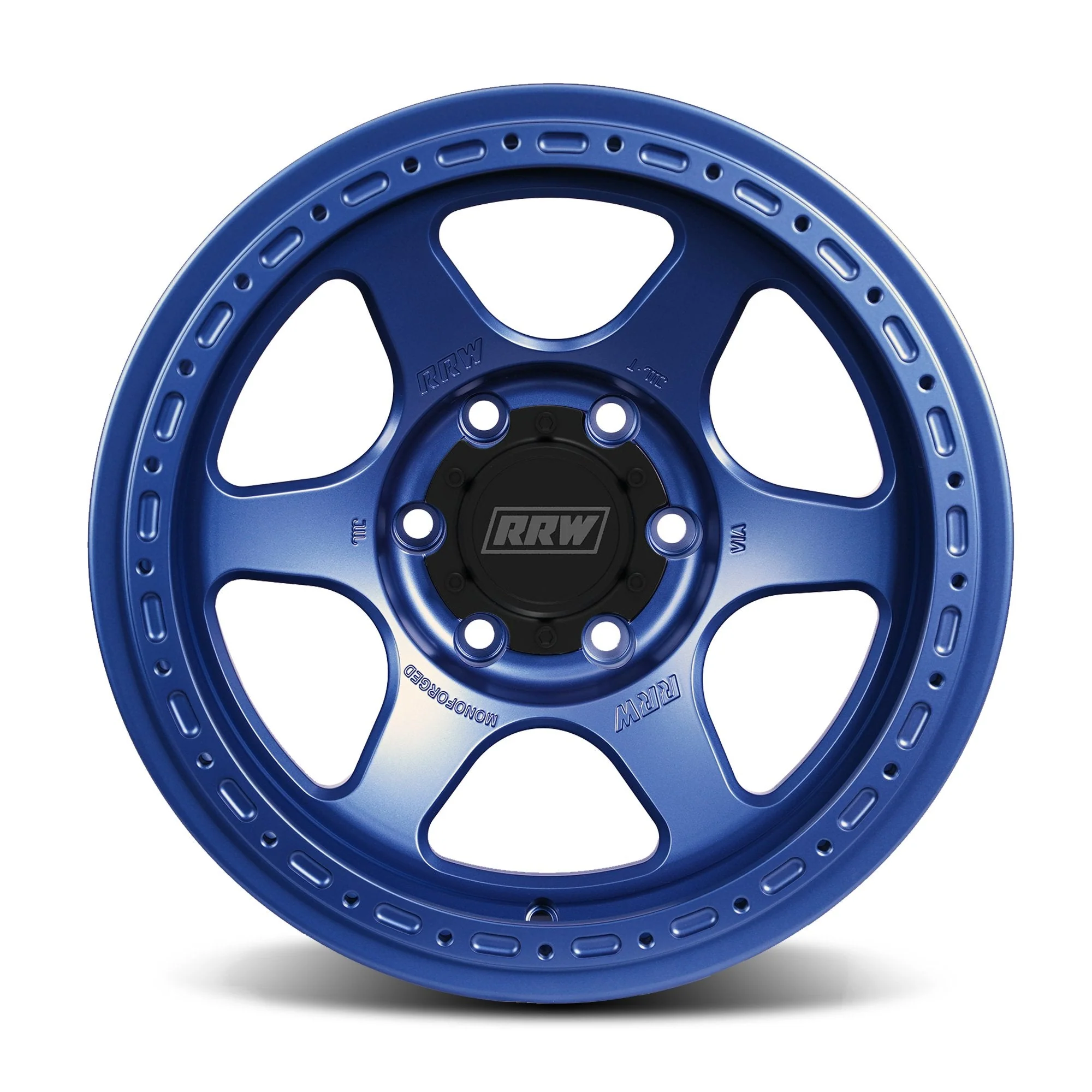

RRW RS2-H Hybrid Monoforged Wheel - Graphite Blue

Upgrade your Tacoma, 4Runner, or GX build with the RRW RS2-H Hybrid Monoforged Wheel in Graphite Blue, a premium forged wheel engineered for maximum strength, lightweight performance, and modern off-road styling. Constructed from aerospace-grade 6061-T6 aluminum, this wheel delivers superior durability while remaining significantly lighter than traditional cast wheels.

Built around RRW’s Hybrid (-H) platform, the RS2-H allows you to run a clean street setup or upgrade with protection rings or true beadlock rings depending on your off-road needs.

Features

• True Monoforged Construction: Manufactured from forged 6061-T6 aerospace-grade aluminum for superior durability and strength compared to cast wheels.
• Hybrid Beadlock Compatibility: Deep stepped lip allows installation of RRW Protection Rings, Billet Protection Rings, or True Beadlock Rings.
• Lightweight Forged Performance: Approximately 15–20% lighter than comparable cast wheels, improving handling and suspension performance.
• Enhanced Thread Engagement: Hybrid (-H) design features deeper lug holes with approximately 50% more thread engagement for improved installation safety.
• Trail-Ready Strength: Engineered to a 2,500 lb load rating suitable for fully equipped overland and off-road vehicles.
• Optimized Structural Design: Larger chamfers and FEA-tested spoke geometry improve load distribution and wheel strength.
• Graphite Blue Finish: Unique premium finish that stands out from traditional wheel colors while maintaining off-road durability.
• TPMS Compatible: Designed to work with most factory tire pressure monitoring systems.
• RRW ET Lug Compatible: Designed for use with RRW Extended Thread lug nuts for maximum stud engagement.
• ABS Embossed Center Cap: RRW branded center cap included as standard equipment.

Specifications

• Wheel Size: 17x8.5
• Bolt Pattern: 6x5.5 / 6x139.7
• Center Bore: 106.1mm (Toyota hub-centric)
• Material: Forged 6061-T6 aluminum
• Load Rating: 2,500 lbs
• Finish: Graphite Blue
• Certification: JWL / VIA certified
• TPMS Compatible: Yes

Vehicle Fitment

Designed for:

• Toyota Tacoma (2005-2023)
• Toyota 4Runner (2010-2024)
• Toyota FJ Cruiser
• Lexus GX470
• Chevy Silverado 1500

(Fitment may vary depending on suspension, tire size, and vehicle modifications.)

Customization Options

RRW Hybrid wheels allow multiple configurations depending on your build:

• Run as a standard wheel
• Add RRW accessory bolts (black or gold)
• Add RRW Protection Rings for wheel lip protection
• Upgrade to RRW True Beadlock Rings (off-road use only)

Protection rings can be replaced after heavy trail use to help protect your wheels.

Lug Nut Requirements

RRW wheels require aftermarket 60° conical seat lug nuts. Factory Toyota lug nuts are not compatible.

We recommend RRW ET (Extended Thread) spline lug nuts to ensure proper seating and maximum thread engagement, especially important on Toyota applications with shorter wheel studs.

Closed-end lug nuts are recommended for most daily driven and off-road builds.

What's Included

• RRW RS2-H Monoforged Wheel
• RRW ABS Center Cap

Shipping Information

All RRW wheels ship via FedEx or UPS Ground and are carefully packaged to ensure safe delivery.

Important Notes

⚠️ Wheels equipped with True Beadlock Rings are for OFF-ROAD USE ONLY and are not DOT approved for highway use.

Product images may show optional accessories sold separately.

Summary

The RRW RS2-H Hybrid Monoforged Wheel in Graphite Blue delivers forged strength, lightweight performance, and modular off-road capability in a unique premium finish. Designed for Tacoma, 4Runner, and GX platforms, this wheel is an excellent choice for daily drivers, overland builds, and serious trail rigs.
