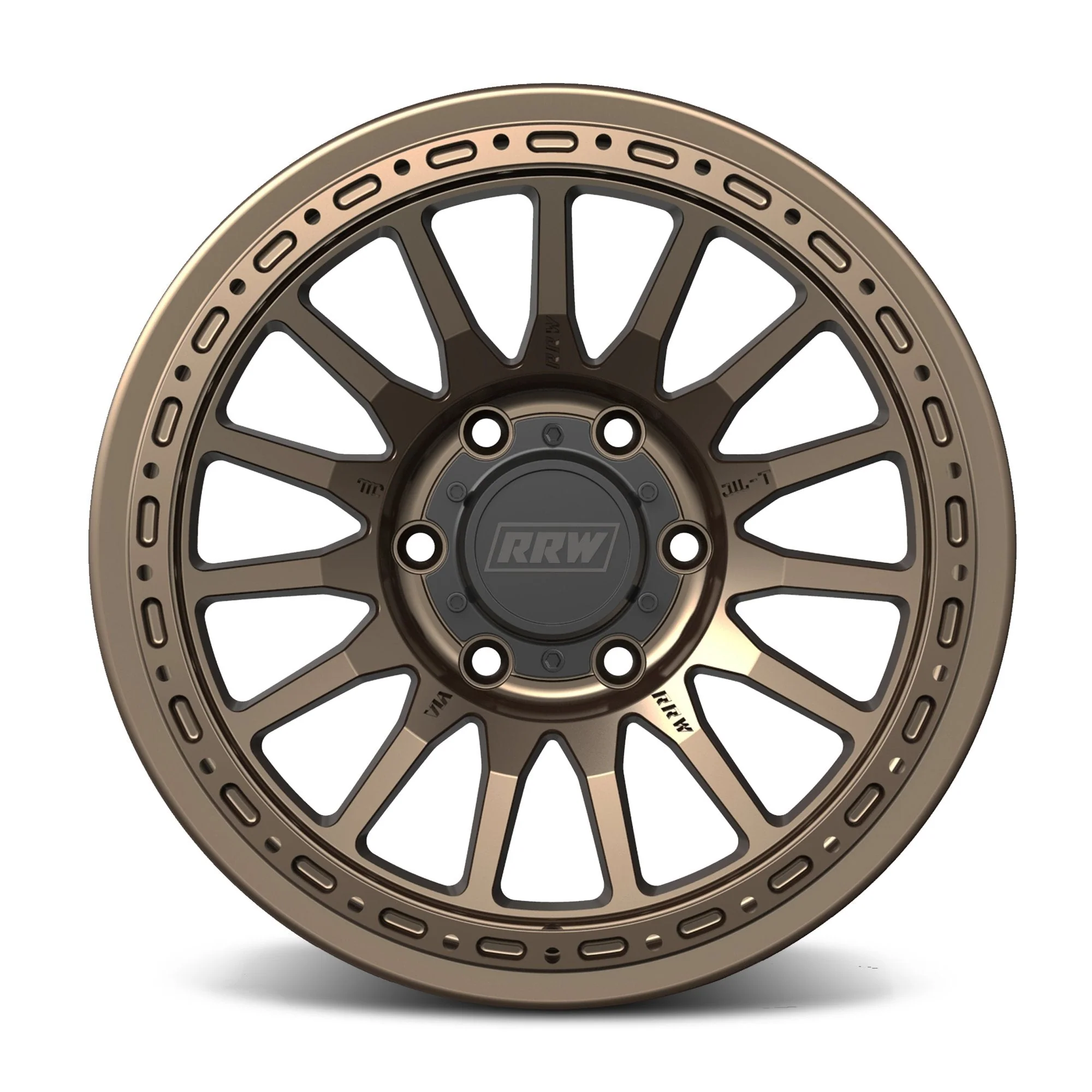

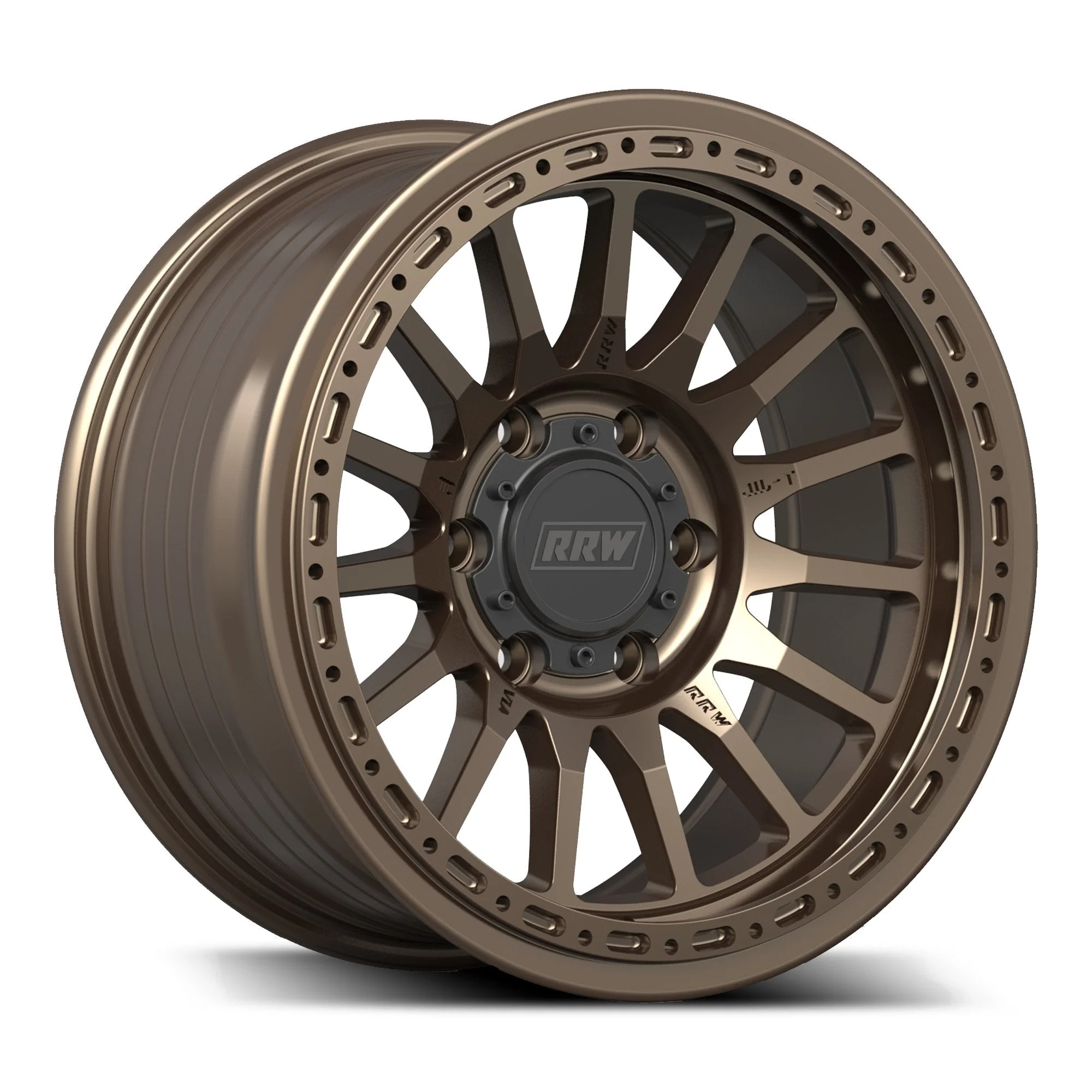

RRW RR7-H Flow Formed Hybrid Beadlock Wheel - Matte Bronze

The RRW RR7-H Flow Formed Hybrid Beadlock Wheel – Matte Bronze (6x139.7) is engineered for off-road enthusiasts who want lightweight performance, exceptional strength, and aggressive styling. Built using advanced flow-forming technology, the RR7-H offers increased structural strength while reducing weight compared to traditional cast wheels, making it an excellent upgrade for both daily driving and demanding trail use.

The RR7-H features a hybrid beadlock design that allows you to run the wheel as-is for a clean street setup or upgrade with protection rings or forged beadlock rings for more serious off-road use. Finished in a premium matte bronze, this wheel gives your truck a bold, race-inspired appearance while maintaining the durability RRW is known for.

Features

• Flow Formed Construction: Manufactured under high pressure and heat to improve strength while reducing weight for improved durability and performance.
• Hybrid Beadlock Design: Provides aggressive beadlock styling with optional protection rings or forged beadlock ring upgrades.
• Lightweight Performance: Reduced unsprung weight improves acceleration, braking performance, and handling responsiveness.
• High Load Rating: Rated at 2,500 lbs to support overland builds, armor, rooftop tents, and recovery gear.
• Multiple Offset Options: Available in +25, +12, +0, -12, and -25 offsets to support both stock and aggressive fitment setups.
• Hub-Centric Fitment Options: Available with 106.1mm or 95.1mm center bore depending on vehicle application.
• Customizable Setup: Run without rings or upgrade with accessory bolts, protection rings, or forged beadlock rings.
• Durable Matte Bronze Finish: Corrosion-resistant finish designed to withstand harsh environments while delivering a premium off-road appearance.
• TPMS Compatible: Designed to work with OEM TPMS sensors.
• ET Lug Compatible: Designed for use with Extended Thread spline lug nuts.
• Center Caps Included: Includes RRW ABS embossed center caps.

Specifications

• Wheel Size: 17x8.5
• Bolt Pattern: 6x139.7 (6x5.5)
• Load Rating: 2500 lbs
• Finish: Matte Bronze
• TPMS Compatible: Yes

Offset / Weight / Backspacing

• +25 — ~24 lbs — 5.73" backspacing — 95.1mm CB
• +12 — ~24 lbs — varies — 95.1mm CB
• +0 — ~23.5 lbs — 4.75" backspacing — 106.1mm CB
• -12 — ~23.8 lbs — 4.28" backspacing — 106.1mm CB
• -25 — ~27.6 lbs — 3.77" backspacing — 106.1mm CB

Measurements are approximate.

Vehicle Fitment

6x139.7 (+0, -12, -25):

• Toyota Tacoma (2005-2023)
• Toyota 4Runner (2010-2024)
• Toyota FJ Cruiser
• Lexus GX470
• Chevy Silverado (6-lug)

6x139.7 (+12, +25):

• Toyota Tacoma (2024+)
• Toyota 4Runner (2025+)
• Toyota Tundra (2022+)
• Lexus GX550
• Ford Ranger
• Ford Bronco

Includes

• RRW RR7-H Flow Formed Hybrid Beadlock Wheel
• RRW ABS Embossed Center Cap
• TPMS compatible design

Note: Aftermarket conical seat lug nuts are required and sold separately.

Summary

The RRW RR7-H Hybrid Beadlock Wheel is a perfect balance of strength, lightweight performance, and aggressive styling. With multiple offsets, hub-centric fitment options, and customization flexibility, it’s a proven upgrade whether you're building a daily driven truck, overland rig, or serious trail vehicle. If you're looking for a premium wheel that delivers both performance and style, the RR7-H is an excellent choice.

Fitment Guide

Do I need aftermarket lug nuts?

Yes. Aftermarket conical seat lug nuts are required. Factory OEM lug nuts will not work.

Why RRW Recommends ET (Extended Thread) Lug Nuts

RRW wheels feature deep lug pockets and thicker mounting pads, which is why ET (Extended Thread) lug nuts are recommended. ET lug nuts extend further into the wheel to provide improved thread engagement, proper seating, and maximum clamping force compared to standard lug nuts.

This results in:

• Improved safety: Increased thread contact for secure wheel mounting
• Better fitment: Designed specifically for RRW wheel lug bores
• Off-road reliability: Stronger clamping force for demanding trail use
• Clean appearance: Sits properly within the wheel lug pocket

Closed vs Open End Lug Nuts

Closed End Lug Nuts (Recommended for most builds):

• Protects wheel studs from dirt, mud, and corrosion
• Provides a clean finished appearance
• Ideal for daily driving and overland vehicles

Open End Lug Nuts (For specialty setups):

• Recommended for extended wheel studs or wheel spacers
• Common for race applications
• Allows visual confirmation of thread engagement

Recommendation:
For most Tacoma, 4Runner, GX, Bronco, and Ranger builds, RRW closed-end ET spline lug nuts are the best choice.

Will OEM TPMS work?

Yes. Factory TPMS sensors are compatible.

Can I run the wheels without rings?

Yes. Hybrid wheels can be run without rings. Rings are optional and can be added later.

Are these wheels street legal?

Yes. Wheels are DOT compliant when used normally.

Note: True beadlock setups are intended for off-road use only.

Are these wheels hub-centric?

Yes.

106.1mm fits:
Tacoma (≤2023), 5G 4Runner, GX470

95.1mm fits:
2024+ Tacoma, 6G 4Runner, 3G Tundra, GX550

What offset should I choose?

+25 / +12: Best for newer trucks and stock setups
+0: Balanced stance for most builds
-12 / -25: Aggressive stance, may require trimming

If unsure, Aspire Auto Accessories can help confirm fitment before ordering.

Tire Fitment Recommendations

Common tire sizes that pair well with 17x8.5 RRW RR7-H wheels:

Stock Friendly (minimal or no modifications):

• 265/65R17
• 265/70R17

These sizes typically fit most stock Tacomas and similar trucks without major modifications.

Popular Upgrade Sizes (may require minor trimming depending on offset and vehicle):

• 275/70R17
• 255/80R17

Aggressive Off-Road Sizes (lift and trimming typically required):

• 285/70R17
• 295/70R17 (advanced setups)

A 17x8.5 wheel width is commonly recommended because it properly supports tires in the 265–285 width range, making it one of the most versatile off-road wheel sizes.

Fitment depends on:

• Suspension height
• Offset selection
• Alignment
• Fender clearance
• Body mount clearance

Every vehicle setup is different. Contact Aspire Auto Accessories if you want help choosing the best tire size for your build.
