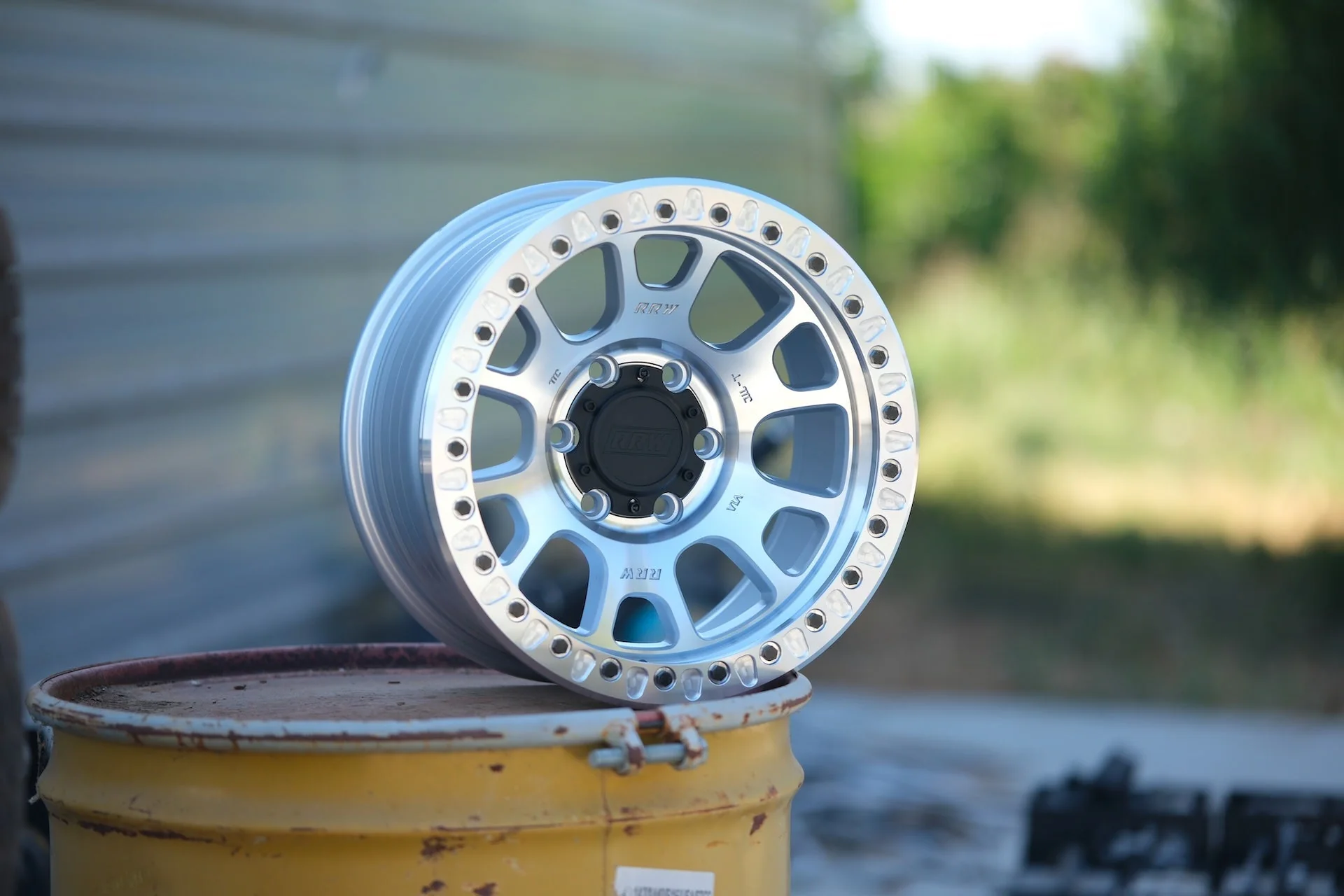

RRW RR5-H Flow Formed Hybrid Beadlock - Brushed Aluminum

Upgrade your Tacoma, 4Runner, GX, Tundra, or Bronco with the RRW RR5-H Flow Formed Hybrid Beadlock Wheel in Brushed Aluminum, a performance-driven wheel engineered for strength, reduced weight, and modular off-road capability. Built using advanced flow-forming technology, the RR5-H provides the perfect balance of durability and performance while maintaining RRW’s signature hybrid beadlock styling.

Designed around RRW’s Hybrid (-H) platform, this wheel allows you to run a clean street setup or upgrade with protection rings or true beadlock rings depending on your off-road goals.

Features

• Flow Formed Strength: Manufactured using high pressure and heat to strengthen the wheel barrel, creating a stronger and lighter wheel compared to traditional cast designs.
• Hybrid Beadlock System: Deep stepped lip allows compatibility with RRW Protection Rings, Billet Protection Rings, and True Beadlock Rings.
• Lightweight Performance: Reduced unsprung weight helps improve vehicle handling, braking response, and suspension performance.
• Trail-Ready Durability: Engineered to handle harsh off-road environments while remaining perfectly suited for daily driving.
• Optimized Brake Cooling: Wheel design promotes airflow to help manage brake temperatures during demanding use.

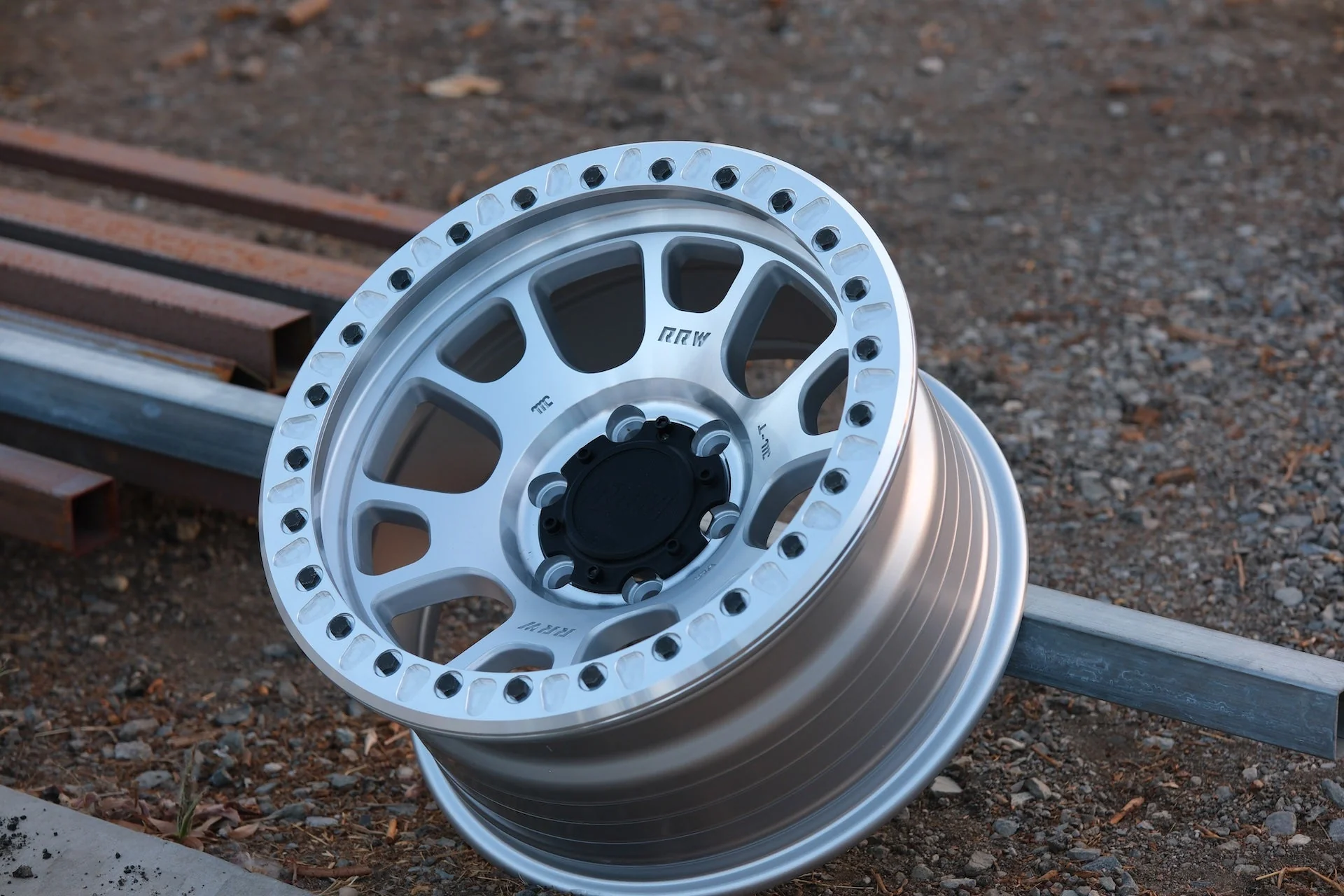

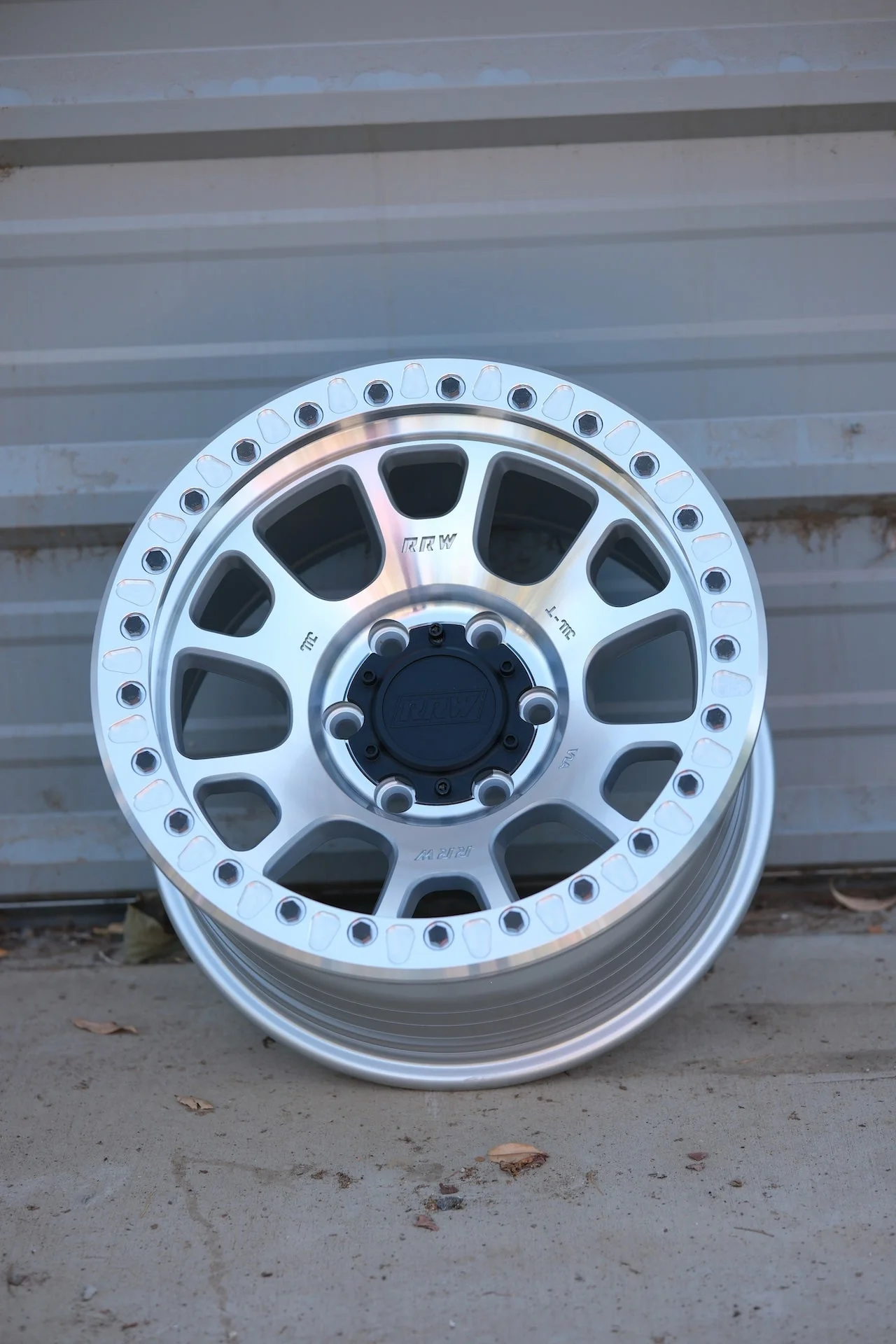

• Brushed Aluminum Finish: Premium motorsport-inspired finish that highlights the wheel’s machining while providing a clean, high-end appearance.
• TPMS Compatible: Designed to work with most factory tire pressure monitoring systems.
• RRW ET Lug Compatible: Designed for use with RRW Extended Thread lug nuts for maximum stud engagement.
• ABS Embossed Center Caps Included: RRW branded center caps included with every wheel.

Specifications

• Wheel Size: 17x8.5
• Offset Options: -12, +25
• Bolt Pattern: 6x5.5 / 6x139.7
• Center Bore:
  • 106.1mm (-12 – hub-centric for Toyota trucks and GX)
  • 95.2mm (+25 – hub-centric for 2024+ Toyota platforms)
• Backspacing:
  • -12 offset: 4.28"
  • +25 offset: 5.73"
• Weight:
  • -12: ~24.6 lbs
  • +25: ~25.3 lbs
• Load Rating: 2,500 lbs
• Construction: Flow formed aluminum
• Certification: JWL / VIA certified
• TPMS Compatible: Yes

Vehicle Fitment

-12 Offset Fitment:

• Toyota Tacoma (2005-2023)
• Toyota 4Runner (2010-2024)
• Toyota FJ Cruiser
• Lexus GX470

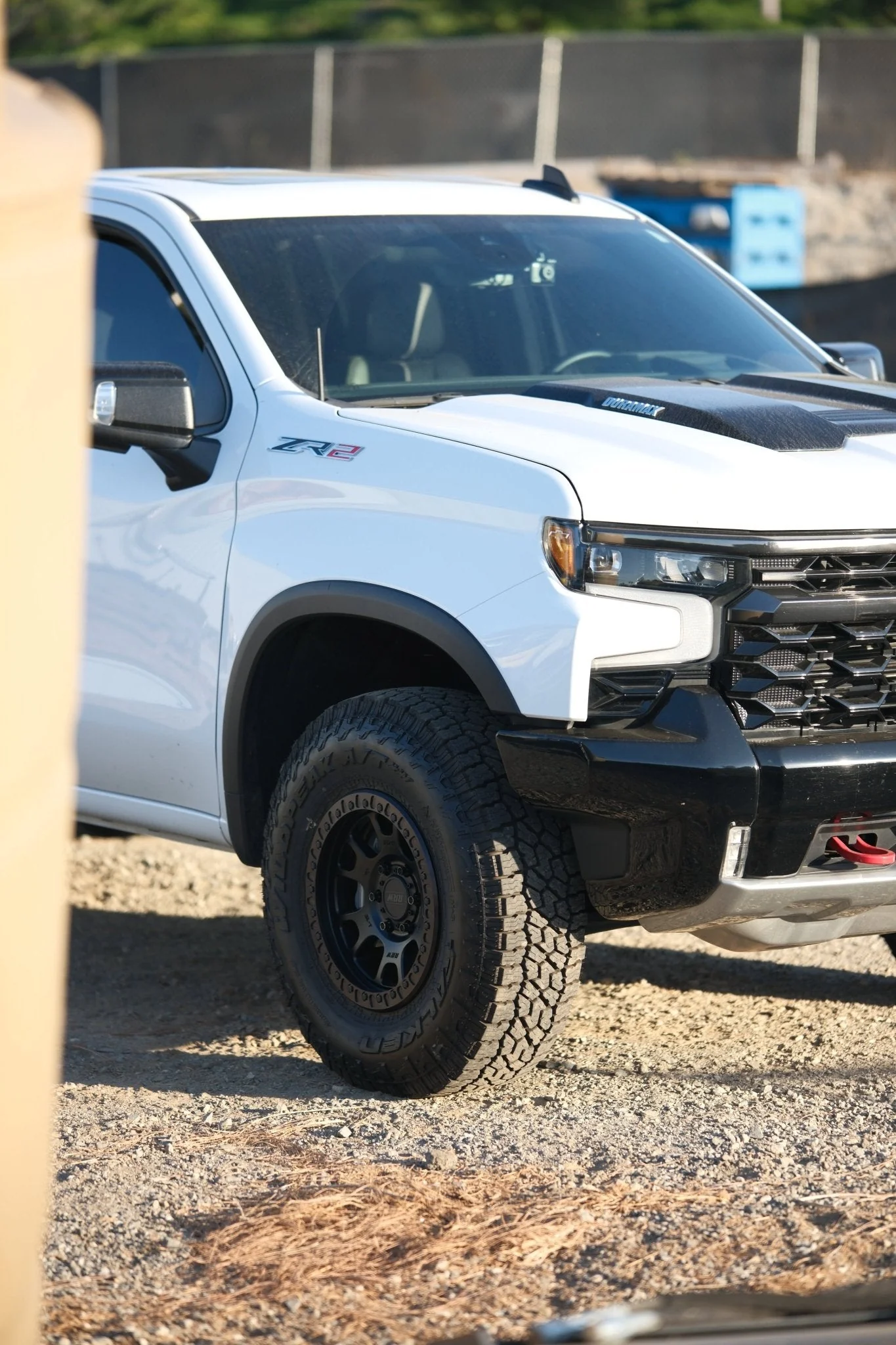

• Chevy Silverado

+25 Offset Fitment:

• Toyota Tacoma (2024+)
• Toyota Tundra (2022+)
• Toyota 4Runner (2024+)
• Toyota Land Cruiser 250
• Lexus GX550
• Ford Ranger
• Ford Bronco

(Fitment depends on tire size, suspension setup, and offset selection.)

Customization Options

RRW Hybrid wheels allow multiple configurations depending on your build:

• Run wheel without rings for a clean street appearance
• Add RRW accessory bolts (black or gold)
• Add RRW Protection Rings for wheel lip protection
• Upgrade to RRW True Beadlock Rings (off-road use only)

Protection rings can be replaced after heavy trail use to help protect your wheel investment.

Lug Nut Requirements

RRW wheels require aftermarket 60° conical seat lug nuts. Factory lug nuts are not compatible.

We recommend RRW ET (Extended Thread) spline lug nuts to ensure proper seating and maximum thread engagement, especially important for Toyota applications with shorter factory wheel studs.

Closed-end lug nuts are recommended for most daily driven and off-road vehicles.

What's Included

• RRW RR5-H Flow Formed Wheel
• RRW ABS Center Cap

Shipping Information

All RRW wheels ship via FedEx or UPS Ground and are carefully packaged to ensure safe delivery.

Important Notes

⚠️ Wheels equipped with True Beadlock Rings are for OFF-ROAD USE ONLY and are not DOT approved for highway use.

⚠️ Product photos may show optional protection rings and hardware which are sold separately.

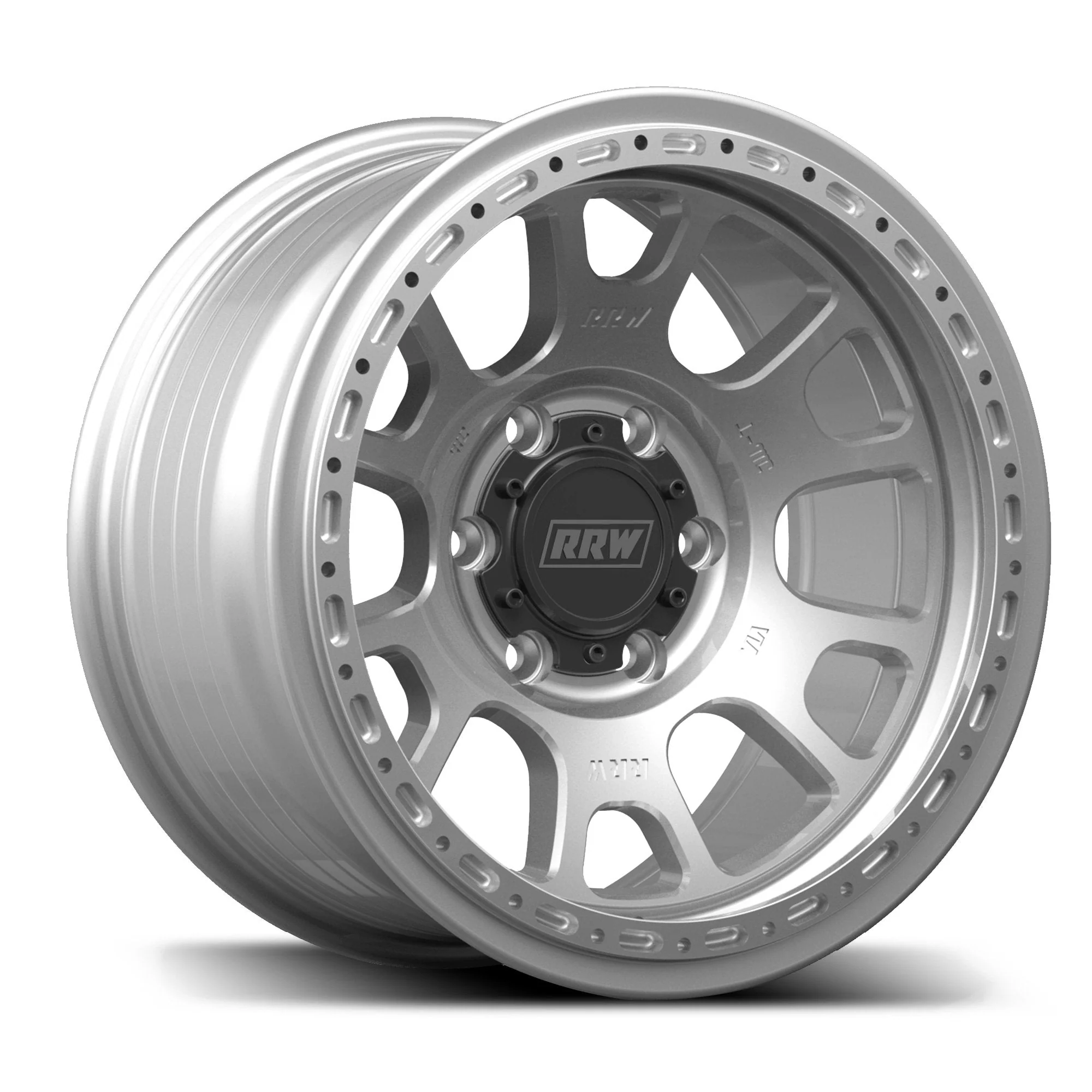

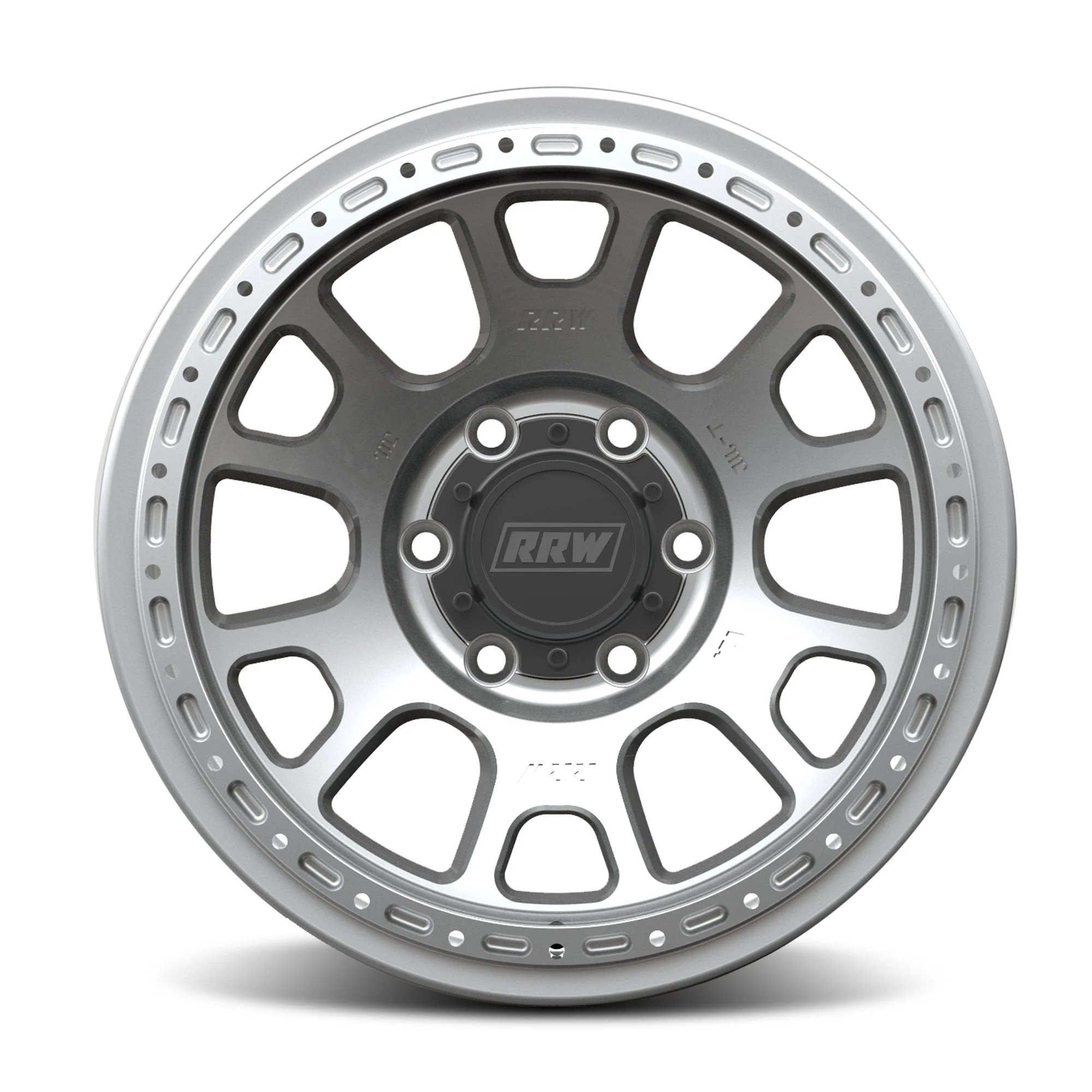

Renders are for reference only.

Summary

The RRW RR5-H Flow Formed Hybrid Beadlock Wheel in Brushed Aluminum delivers lightweight performance, trail-ready durability, and RRW’s modular hybrid beadlock versatility. Whether you're building a daily driver or a fully equipped overland rig, this wheel delivers the strength and flexibility serious off-road enthusiasts demand.
