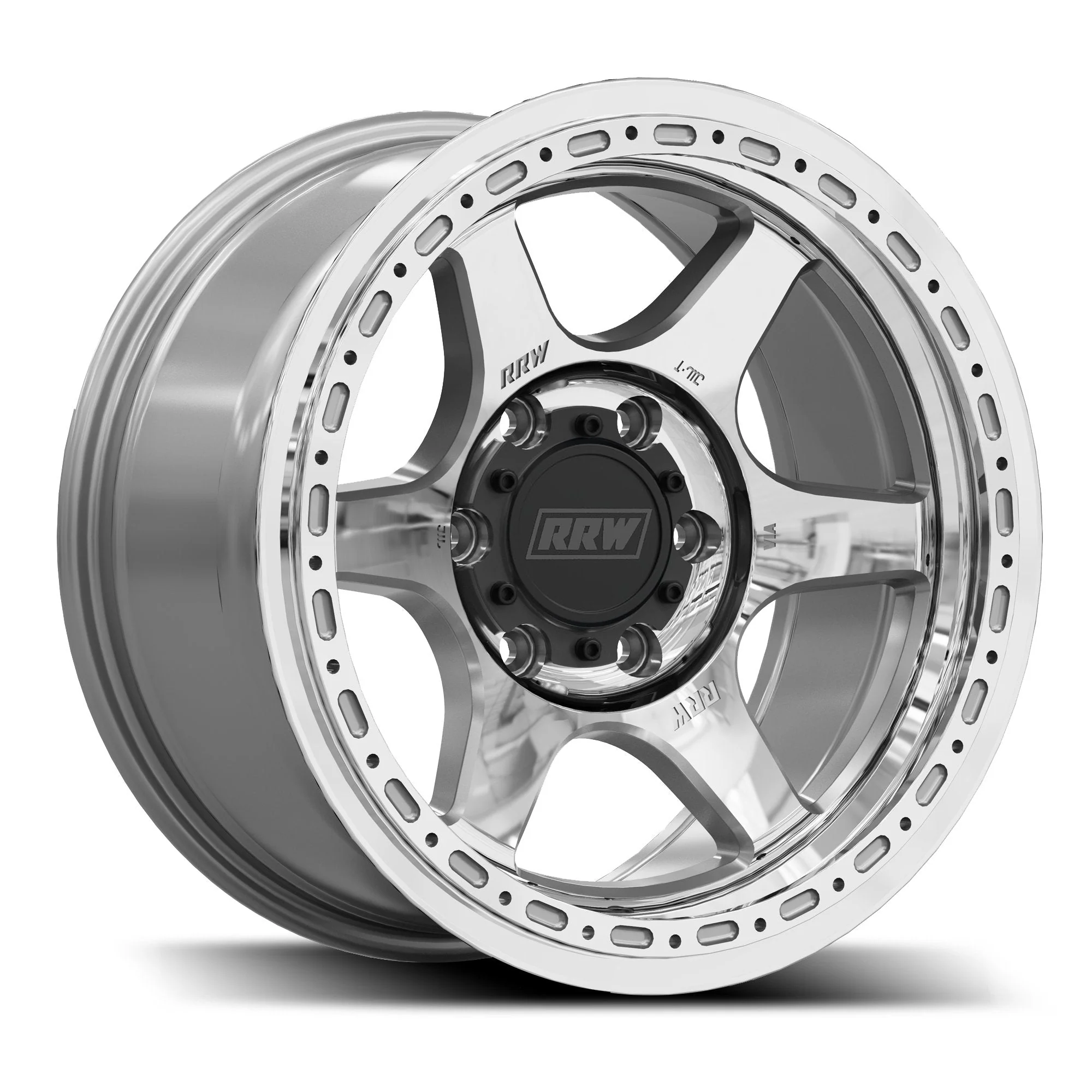

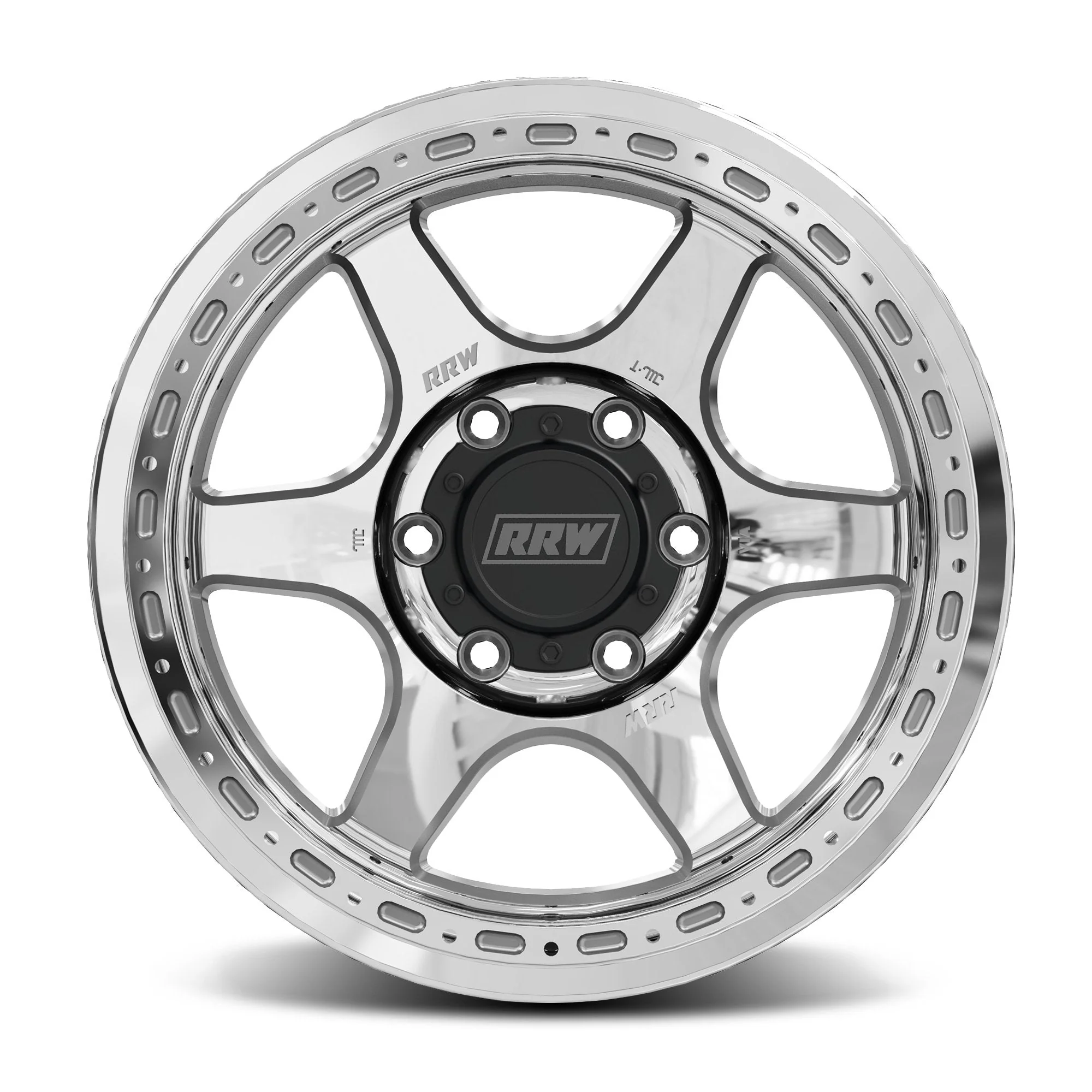

RRW RR2-H Flow Formed Hybrid Beadlock - Brushed Aluminum

Upgrade your Tacoma, 4Runner, GX, or FJ Cruiser with the RRW RR2-H Flow Formed Hybrid Beadlock Wheel in Brushed Aluminum, a performance-driven wheel designed to deliver exceptional strength, reduced weight, and true off-road versatility. Utilizing advanced flow-forming technology, this wheel provides an excellent balance of durability and lightweight performance for both daily driving and aggressive trail use.

Built on RRW’s Hybrid (-H) platform, the RR2-H allows you to run a clean street setup or upgrade with protection rings or true beadlock rings depending on your off-road build.

Features

• Flow Formed Construction: Manufactured using advanced heat and pressure forming techniques to increase strength while reducing weight compared to traditional cast wheels.
• Hybrid Beadlock Capability: Designed to accept RRW Protection Rings, accessory bolts, or True Beadlock Rings for modular off-road customization.
• Lightweight Performance: Reduced unsprung weight improves suspension response, acceleration, braking performance, and overall vehicle handling.
• Trail-Ready Strength: Engineered with a 2,500 lb load rating capable of supporting heavily built off-road and overland vehicles.
• Improved Brake Cooling: Structural design promotes airflow to help manage brake temperatures during demanding use.
• Brushed Aluminum Finish: Clean, raw motorsports-inspired finish that highlights the wheel’s forged styling while providing a premium look.
• RRW ET Lug Compatible: Designed to work with RRW Extended Thread lug nuts to maximize thread engagement, especially beneficial on Toyota platforms.
• TPMS Compatible: Designed to work with most factory tire pressure monitoring systems.
• ABS Center Caps Included: RRW embossed center caps included standard.

Specifications

Wheel Size:

• 17x8.5

Offset:

• -12

Bolt Pattern:

• 6x5.5 / 6x139.7

Center Bore:

• 106.1mm (hub-centric for Tacoma, 4Runner, GX470, and FJ Cruiser)

Approximate Weight Reference:

• +0: ~23.7 lbs
• -12: ~25.6 lbs
• -25: ~26.2 lbs

Additional Specifications:

• Load Rating: 2,500 lbs
• Construction: Flow formed aluminum
• Certification: JWL / VIA certified
• Finish: Brushed Aluminum
• TPMS Compatible: Yes

Vehicle Fitment

-12 Offset Fitment:

• Toyota Tacoma (2005-2023)
• Toyota 4Runner (2010-2024)
• Toyota FJ Cruiser
• Lexus GX470
• Chevy Silverado

(Fitment depends on tire size, suspension setup, and overall vehicle configuration.)

Customization Options

RRW Hybrid wheels allow multiple configuration options depending on your build:

• Run wheel without rings or bolts
• Add RRW accessory bolts (black or gold)
• Add RRW Protection Rings for wheel lip protection
• Upgrade to RRW Forged True Beadlock Rings (off-road use only)

Protection rings can be replaced after heavy trail use to help protect your wheels from damage.

Lug Nut Requirements

RRW wheels require aftermarket 60° conical seat lug nuts. Factory lug nuts are not compatible.

We recommend RRW ET (Extended Thread) spline lug nuts for proper seating and maximum thread engagement, especially important for Toyota vehicles with shorter factory wheel studs.

Closed-end lug nuts are typically recommended for daily driven and off-road vehicles to protect wheel studs from corrosion and debris.

What's Included

• RRW RR2-H Flow Formed Hybrid Beadlock Wheel
• RRW ABS Center Cap

Shipping Information

All RRW wheels ship via FedEx or UPS Ground and are packaged to ensure safe delivery.

Important Notes

⚠️ True Beadlock Rings are for OFF-ROAD USE ONLY and are not DOT approved for highway use.

Renders are for reference only. Some images may show optional accessories sold separately.

Summary

The RRW RR2-H Flow Formed Hybrid Beadlock Wheel in Brushed Aluminum delivers an excellent balance of strength, weight savings, and modular off-road capability. Whether you're building a daily driven off-road truck or a dedicated trail rig, this wheel delivers the durability, performance, and flexibility RRW is known for.
