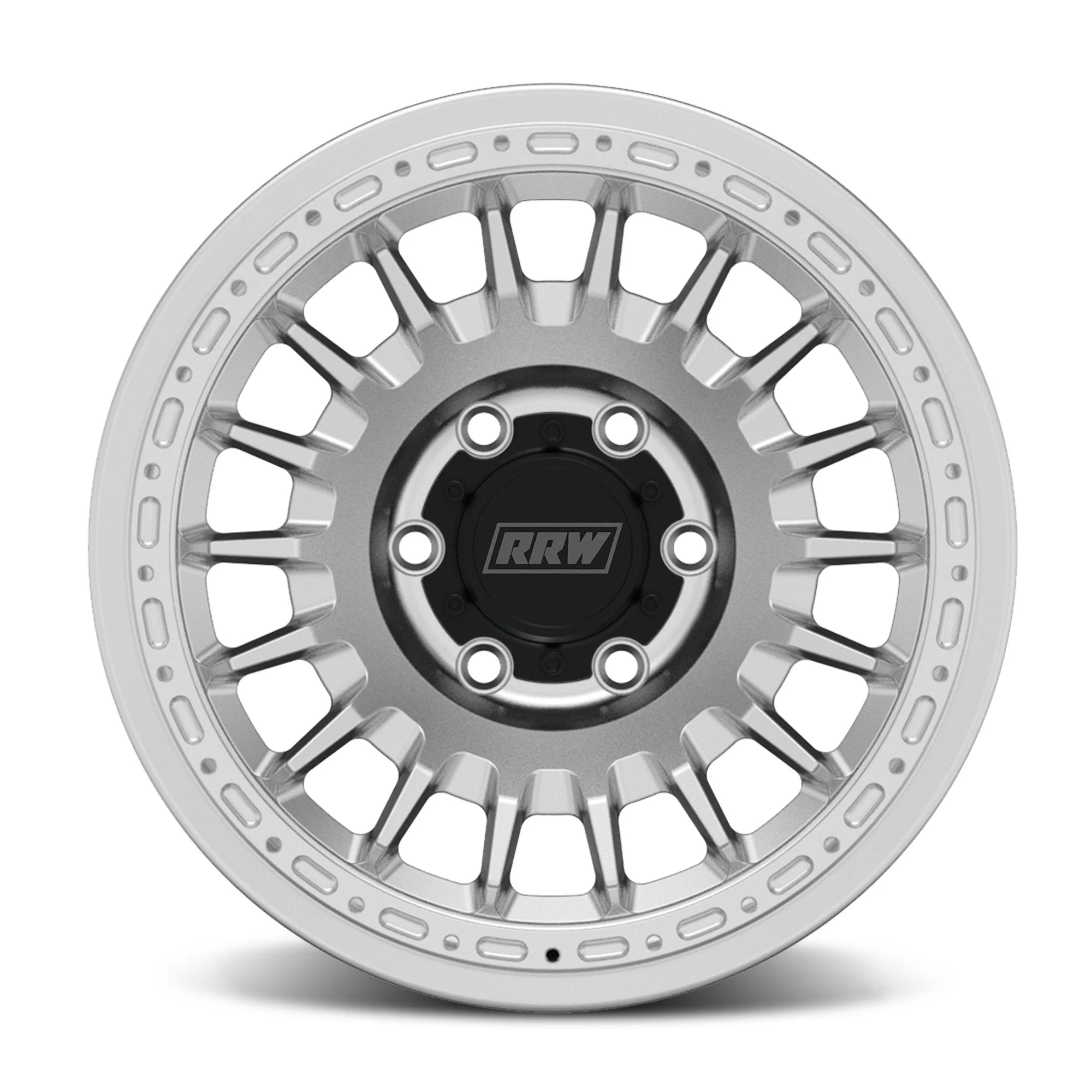

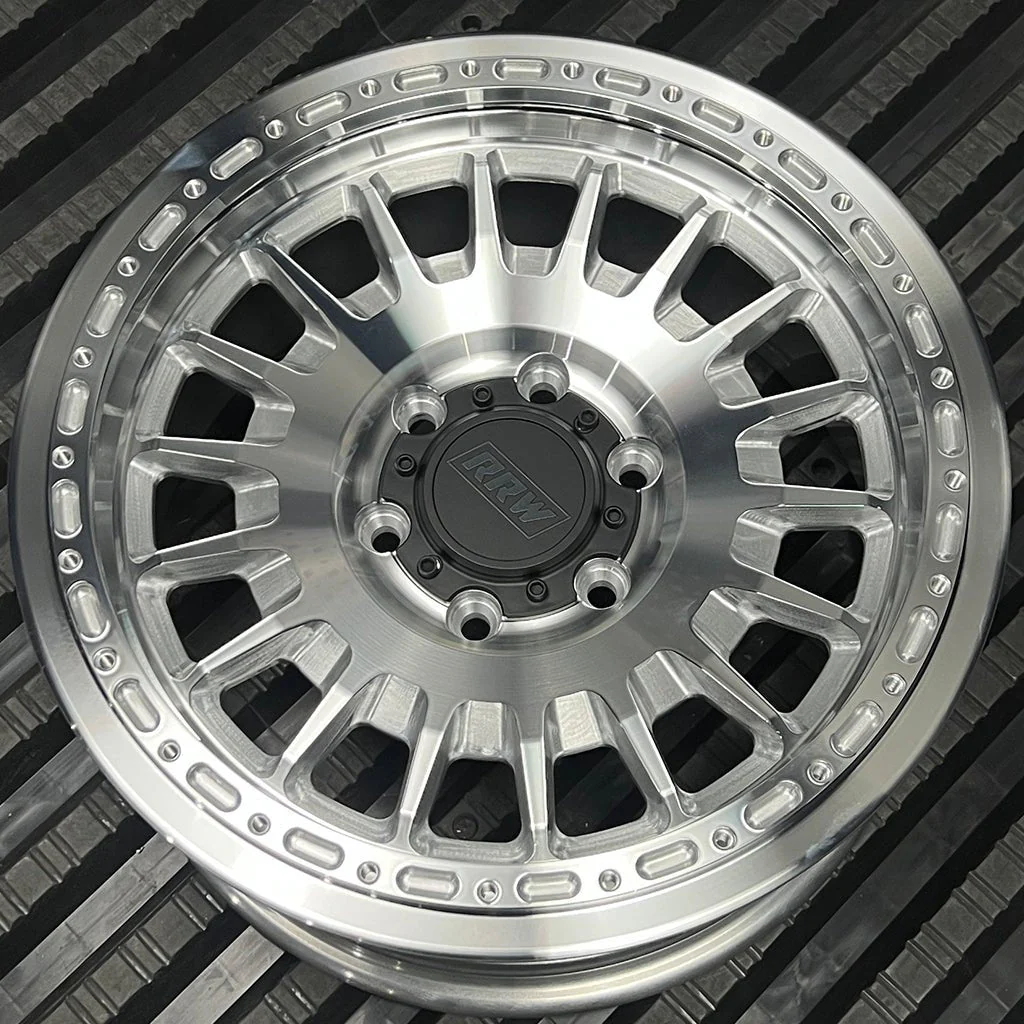

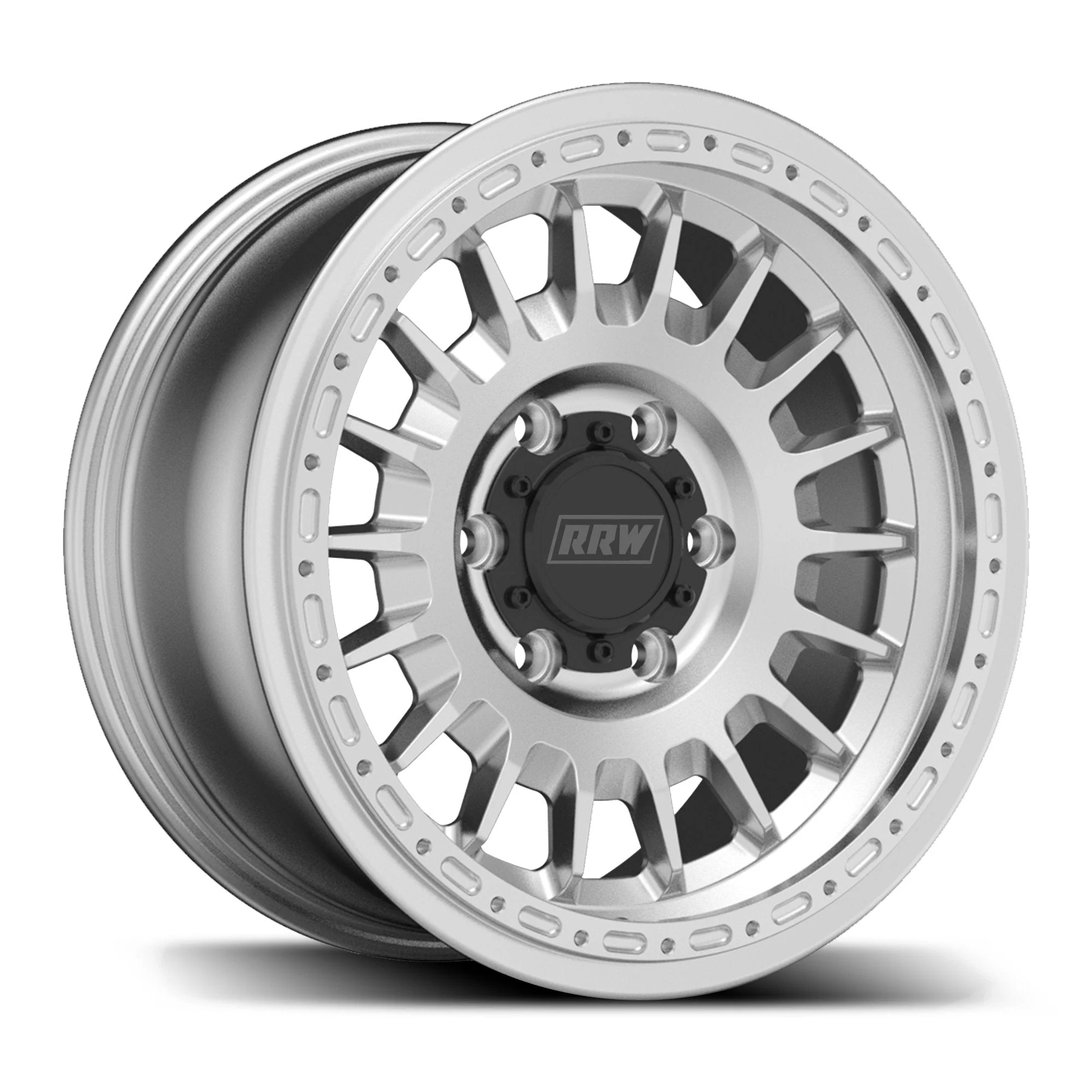

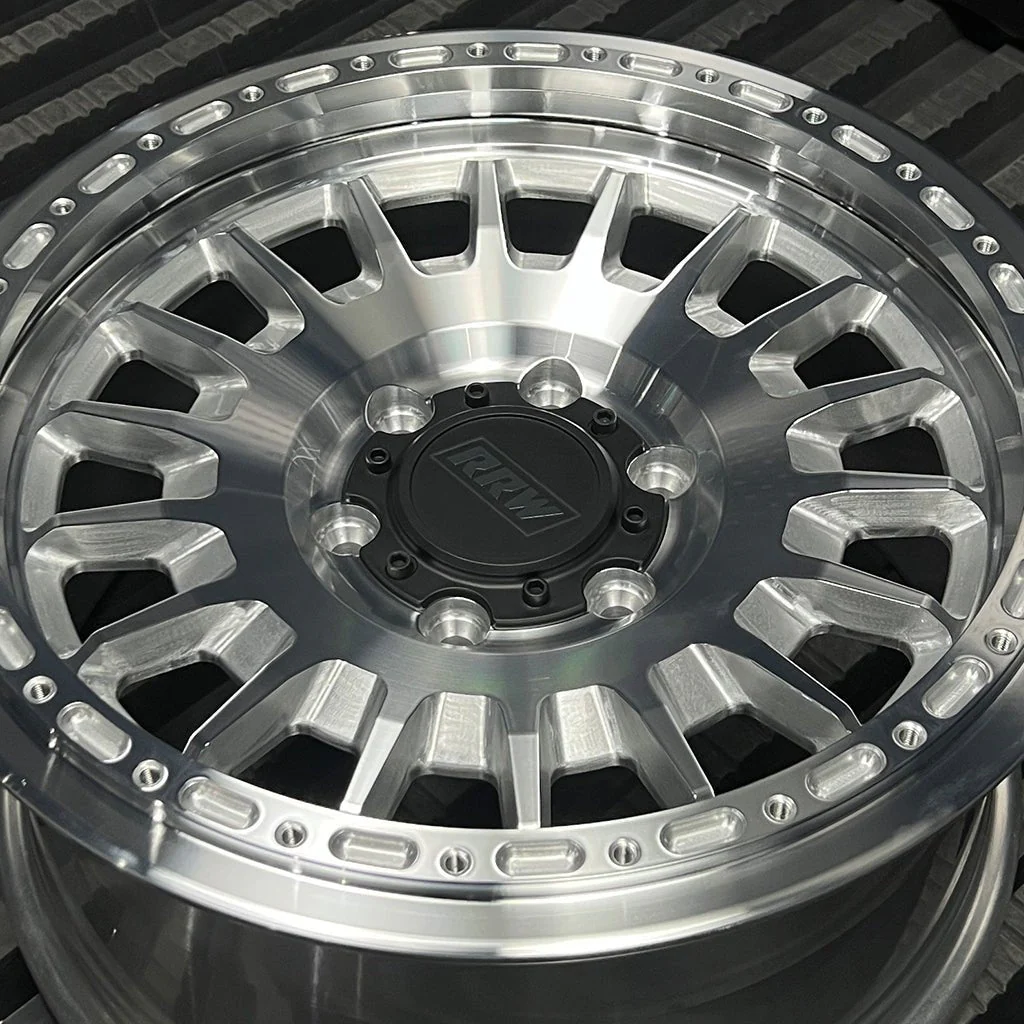

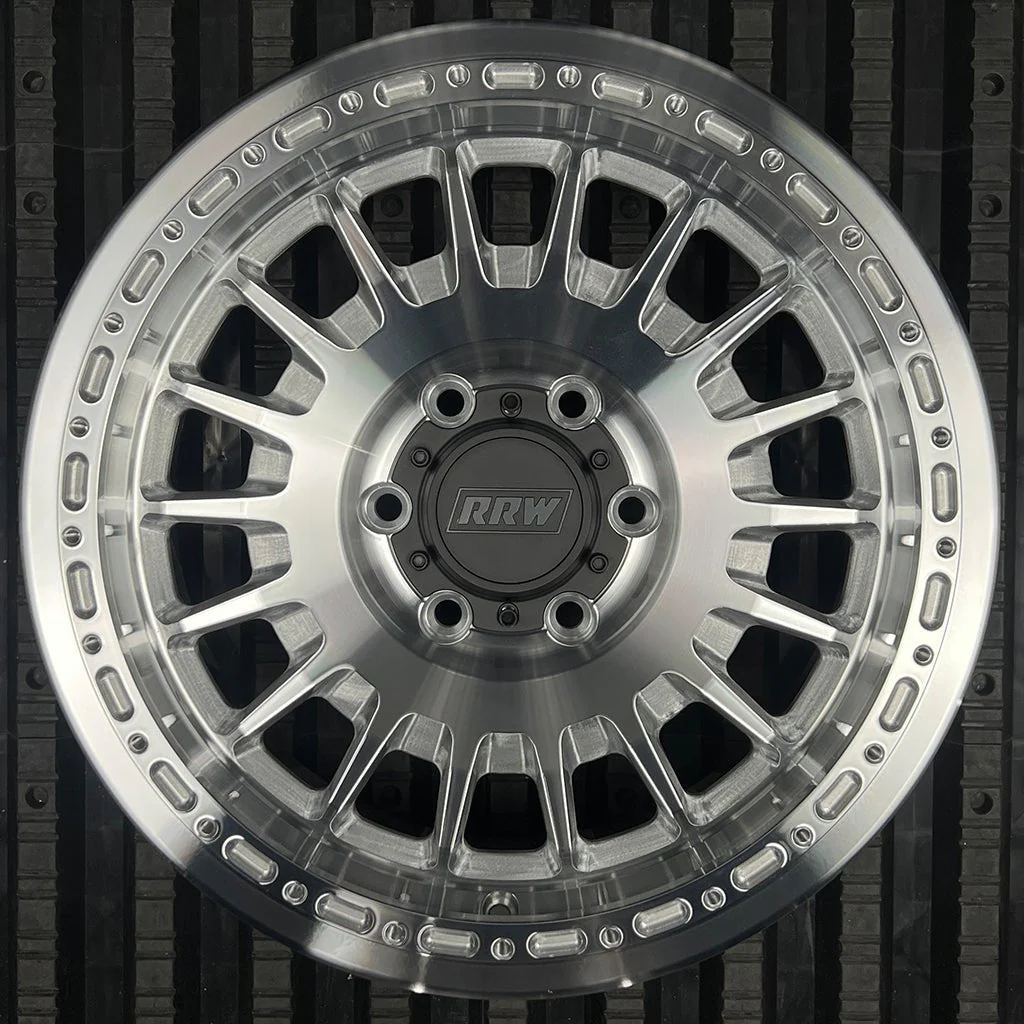

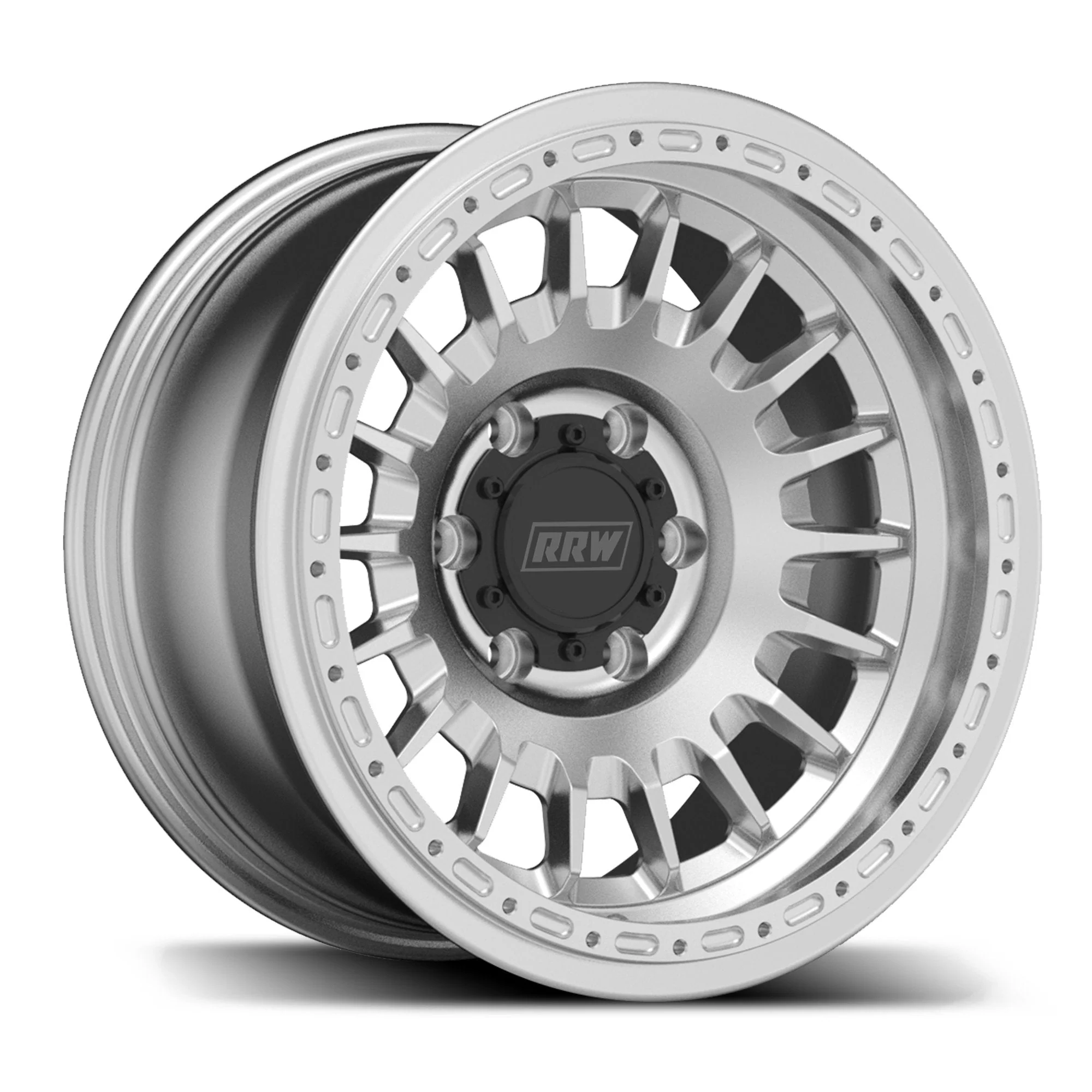

RRW RG7-H Hybrid Monoforged Wheel - Brushed Aluminum

Upgrade your Tacoma, 4Runner, GX, Tundra, Ranger, or Bronco with the RRW RG7-H Hybrid Monoforged Wheel in Brushed Aluminum, a premium forged wheel engineered for maximum strength, reduced weight, and modular off-road capability. Constructed from aerospace-grade 6061-T6 aluminum, this wheel delivers superior durability while improving handling through reduced unsprung mass.

Built on RRW’s Hybrid (-H) platform, the RG7-H gives you the flexibility to run a clean daily setup or upgrade with protection rings or true beadlock rings depending on your off-road goals.

Features

• True Monoforged Construction: Manufactured from forged 6061-T6 aircraft-grade aluminum for superior durability compared to traditional cast wheels.
• Hybrid Beadlock Compatibility: Deep stepped lip design allows compatibility with RRW Protection Rings, Billet Protection Rings, and True Beadlock Rings.
• Lightweight Performance: Approximately 15–20% lighter than comparable cast wheels, improving acceleration, braking response, and suspension performance.
• Enhanced Thread Engagement: Hybrid (-H) design features deeper lug pockets providing approximately 50% more thread engagement for improved installation safety.
• Trail-Ready Load Rating: Engineered with a 2,500 lb load rating capable of supporting fully built off-road and overland vehicles.
• FEA Optimized Structure: Reinforced chamfers and structural geometry improve load distribution and durability under demanding conditions.
• Brushed Aluminum Finish: A clean, motorsports-inspired finish that highlights the forged construction and gives a premium performance look.
• TPMS Compatible: Designed to work with most factory tire pressure monitoring systems.
• RRW ET Lug Compatible: Designed for RRW Extended Thread lug nuts to maximize thread engagement, especially beneficial for Toyota applications.
• ABS Embossed Center Caps Included: RRW branded center caps included standard.

Specifications

Available Sizes:

• 17x8 (+18)
• 17x8.5 (-12 / -25 / +25)
• 18x8.5 (+25)

Bolt Pattern:

• 6x5.5 / 6x139.7

Center Bore:

• 106.1mm (-12 / -25 – hub-centric for Tacoma, 4Runner, GX470)
• 95.2mm (+18 / +25 – hub-centric for 2024+ Toyota platforms)

Additional Specifications:

• Material: Forged 6061-T6 aluminum
• Load Rating: 2,500 lbs
• Certification: JWL / VIA certified
• Finish: Brushed Aluminum
• TPMS Compatible: Yes

Vehicle Fitment

-12 / -25 Offset Fitment:

• Toyota Tacoma (2005-2023)
• Toyota 4Runner (2010-2024)
• Toyota FJ Cruiser
• Lexus GX470
• Chevy Silverado

+18 / +25 Offset Fitment:

• Toyota Tacoma (2024+)
• Toyota Tundra (2022+)
• Toyota 4Runner (2024+)
• Toyota Land Cruiser 250
• Lexus GX550
• Ford Ranger
• Ford Bronco

(Fitment depends on tire size, suspension setup, and selected offset.)

Customization Options

RRW Hybrid wheels allow multiple configurations depending on your build:

• Run as a standard wheel
• Add RRW accessory bolts (black or gold)
• Add RRW Protection Rings for wheel lip protection
• Upgrade to RRW True Beadlock Rings (off-road use only)

Protection rings can be replaced after heavy trail use to help protect your wheels from damage.

Lug Nut Requirements

RRW wheels require aftermarket 60° conical seat lug nuts. Factory lug nuts are not compatible.

We recommend RRW ET (Extended Thread) spline lug nuts for proper seating and maximum thread engagement, especially important for Toyota vehicles with shorter factory wheel studs.

Closed-end lug nuts are generally recommended for daily driven and off-road vehicles to protect wheel studs from corrosion and debris.

What's Included

• RRW RG7-H Hybrid Monoforged Wheel
• RRW ABS Center Cap

Shipping Information

All RRW wheels ship via FedEx or UPS Ground and are securely packaged to ensure safe delivery.

Important Notes

⚠️ Wheels equipped with True Beadlock Rings are for OFF-ROAD USE ONLY and are not DOT approved for highway use.

Renders are for reference only. Some images may show optional accessories sold separately.

Summary

The RRW RG7-H Hybrid Monoforged Wheel in Brushed Aluminum delivers forged strength, lightweight engineering, and RRW’s hybrid beadlock versatility in one premium package. Whether you're building a daily driver, trail rig, or overland vehicle, this wheel delivers the durability, performance, and customization flexibility serious off-road enthusiasts expect.
