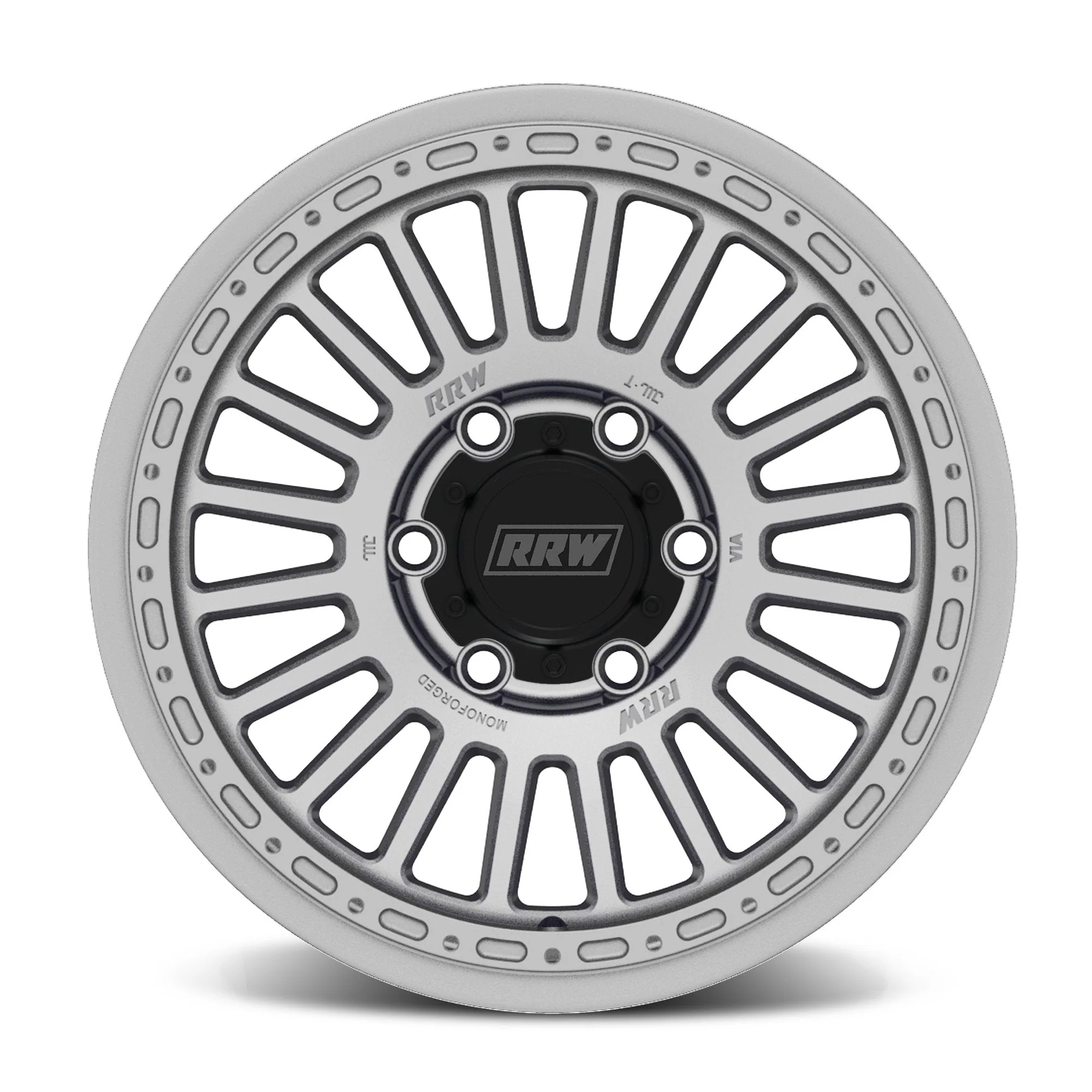

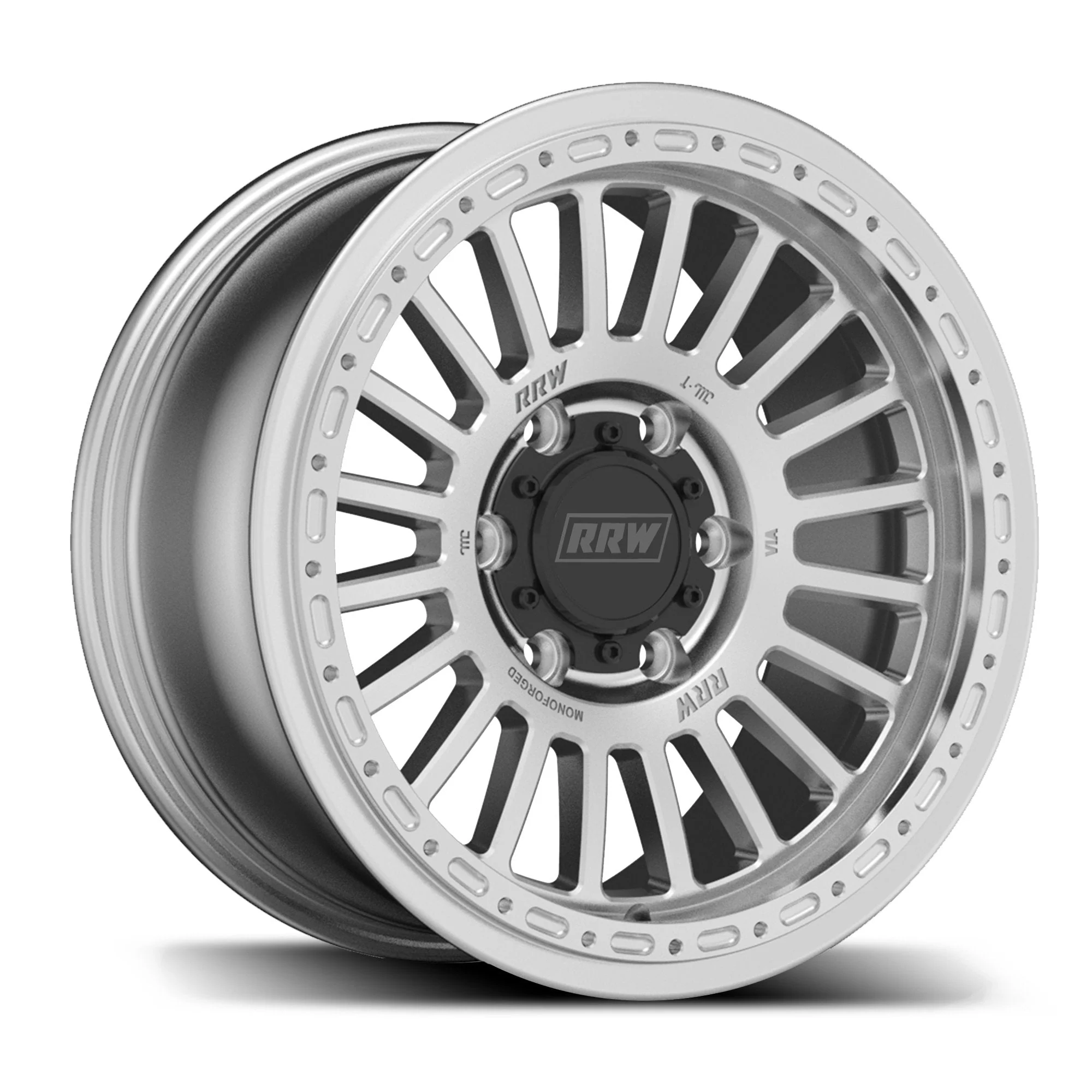

RRW RG6-H Hybrid Monoforged Wheel - Brushed Aluminum

Upgrade your Tacoma, 4Runner, GX, Tundra, or Bronco with the RRW RG6-H Hybrid Monoforged Wheel in Brushed Aluminum, a premium forged wheel designed to deliver exceptional strength, reduced weight, and modular off-road capability. Built from aerospace-grade 6061-T6 aluminum, this wheel offers the durability expected from a true forged wheel while improving handling through reduced rotational mass.

Built on RRW’s Hybrid (-H) platform, the RG6-H allows you to run a clean street setup or upgrade with protection rings or true beadlock rings depending on your off-road goals.

Features

• True Monoforged Construction: Manufactured from forged 6061-T6 aerospace-grade aluminum for superior durability compared to traditional cast wheels.
• Hybrid Beadlock Compatibility: Deep stepped lip allows compatibility with RRW Protection Rings, Billet Protection Rings, and True Beadlock Rings.
• Lightweight Forged Performance: Approximately 15–20% lighter than comparable cast wheels, improving vehicle handling and suspension response.
• Enhanced Thread Engagement: Hybrid (-H) design features deeper lug pockets providing approximately 50% more thread engagement for improved installation safety.
• Trail-Ready Strength: Engineered with a 2,500 lb load rating capable of supporting fully built overland and off-road vehicles.
• Optimized Structural Design: FEA-tested chamfering and structure improves load distribution and wheel durability.
• Brushed Aluminum Finish: Premium motorsport-inspired finish highlighting the forged construction while delivering a clean, high-end appearance.
• TPMS Compatible: Designed to work with most factory tire pressure monitoring systems.
• RRW ET Lug Compatible: Designed for use with RRW Extended Thread lug nuts for maximum stud engagement.
• ABS Embossed Center Caps Included: RRW branded center caps included standard.

Specifications

Available Sizes:

• 17x8 (+18)
• 17x8.5 (-12 / -25 / +25)
• 18x8.5 (+25)

Bolt Pattern:

• 6x5.5 / 6x139.7

Center Bore:

• 106.1mm (-12 / -25 – hub-centric for Tacoma, 4Runner, GX470)
• 95.2mm (+18 / +25 – hub-centric for 2024+ Toyota platforms)

Additional Specs:

• Material: Forged 6061-T6 aluminum
• Load Rating: 2,500 lbs
• Certification: JWL / VIA certified
• Finish: Brushed Aluminum
• TPMS Compatible: Yes

Vehicle Fitment

-12 / -25 Offset Fitment:

• Toyota Tacoma (2005-2023)
• Toyota 4Runner (2010-2024)
• Toyota FJ Cruiser
• Lexus GX470
• Chevy Silverado

+18 / +25 Offset Fitment:

• Toyota Tacoma (2024+)
• Toyota Tundra (2022+)
• Toyota 4Runner (2024+)
• Toyota Land Cruiser 250
• Lexus GX550
• Ford Ranger
• Ford Bronco

(Fitment depends on tire size, offset selection, and suspension setup.)

Customization Options

RRW Hybrid wheels allow multiple configurations depending on your build:

• Run as a standard wheel
• Add RRW accessory bolts (black or gold)
• Add RRW Protection Rings for wheel lip protection
• Upgrade to RRW True Beadlock Rings (off-road use only)

Protection rings can be replaced after heavy trail use to help protect your wheels from damage.

Lug Nut Requirements

RRW wheels require aftermarket 60° conical seat lug nuts. Factory lug nuts are not compatible.

We recommend RRW ET (Extended Thread) spline lug nuts to ensure proper seating and maximum thread engagement, especially important for Toyota applications where factory wheel studs are shorter.

Closed-end lug nuts are typically recommended for daily driven and off-road vehicles.

What's Included

• RRW RG6-H Hybrid Monoforged Wheel
• RRW ABS Center Cap

Shipping Information

All RRW wheels ship via FedEx or UPS Ground and are securely packaged to ensure safe delivery.

Important Notes

⚠️ Wheels equipped with True Beadlock Rings are for OFF-ROAD USE ONLY and are not DOT approved for highway use.

Product images may show optional accessories sold separately.

Summary

The RRW RG6-H Hybrid Monoforged Wheel in Brushed Aluminum delivers forged strength, lightweight performance, and RRW’s modular hybrid beadlock versatility. Whether you're building a daily driver, overland rig, or serious trail vehicle, this wheel delivers the strength and flexibility serious off-road enthusiasts expect.
