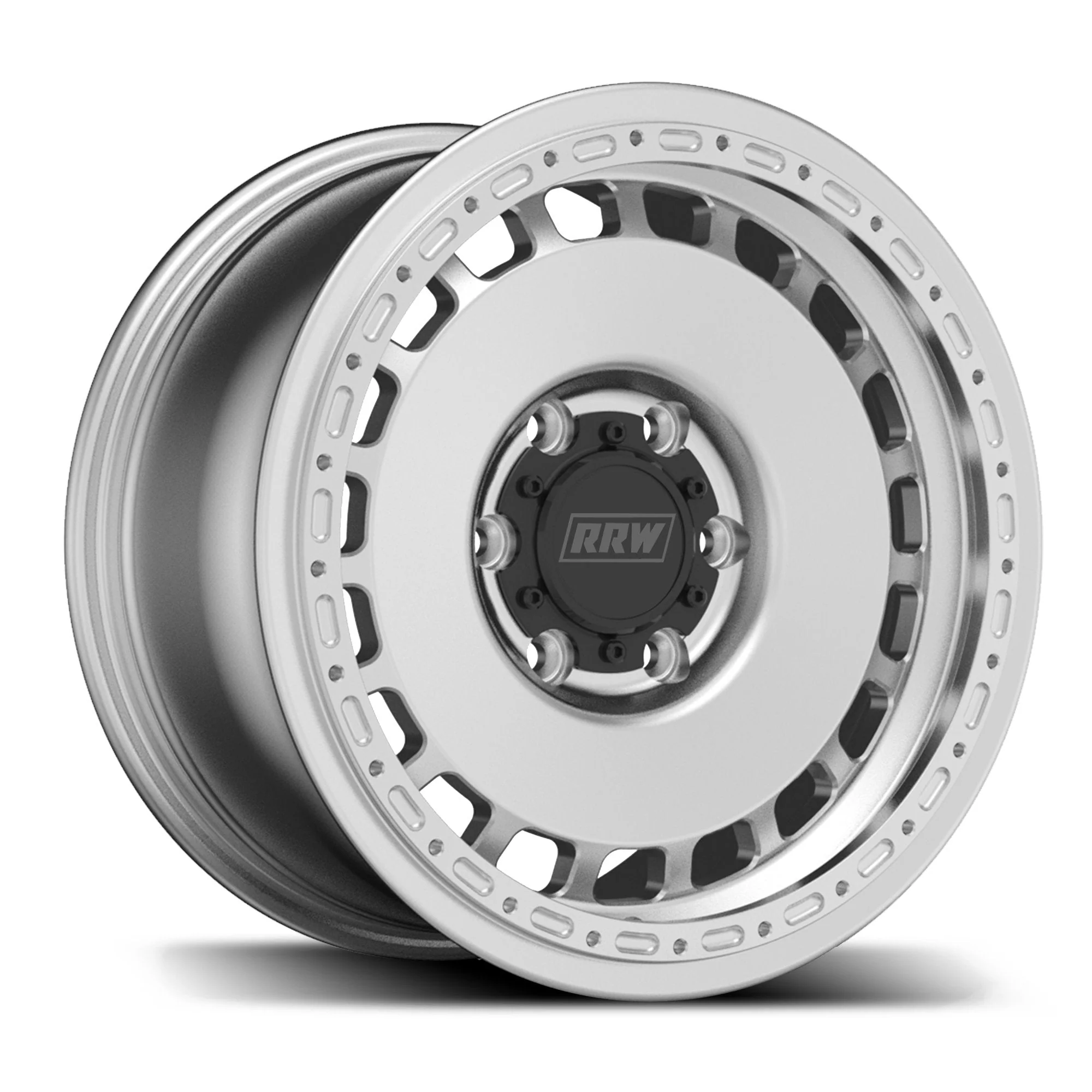

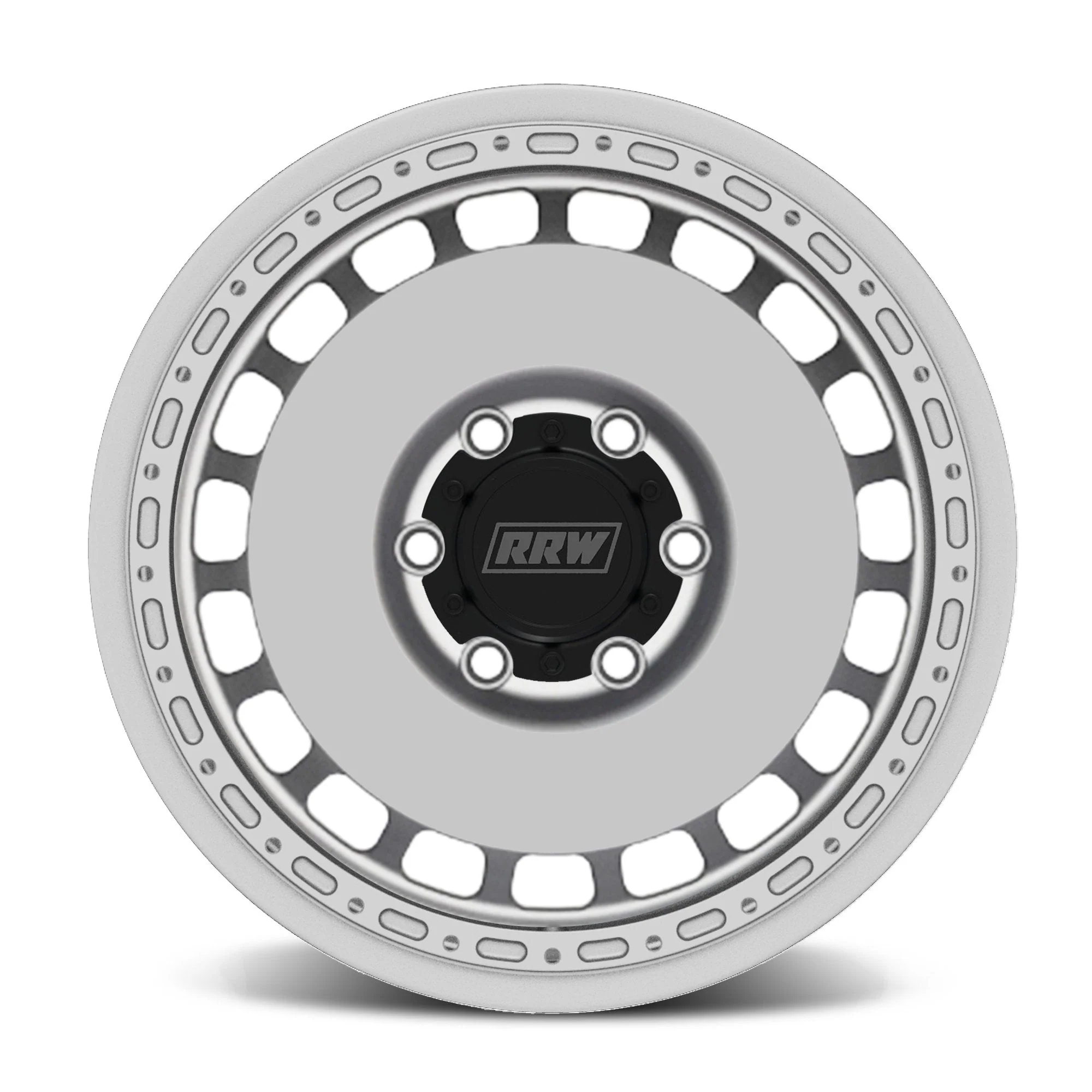

RRW RG3-H Hybrid Monoforged Wheel - Brushed Aluminum

Upgrade your Tacoma, Tundra, 4Runner, GX, Bronco, or Ranger with the RRW RG3-H Hybrid Monoforged Wheel in Brushed Aluminum, a premium forged wheel engineered for exceptional strength, lightweight performance, and modular off-road capability. Manufactured from aerospace-grade 6061-T6 aluminum, this wheel delivers the durability expected from a true forged wheel while improving vehicle performance through reduced rotational mass.

Designed around RRW’s Hybrid (-H) platform, the RG3-H allows you to run a clean street setup or upgrade with protection rings or true beadlock rings depending on your off-road goals.

Features

• True Monoforged Construction: Manufactured from forged 6061-T6 aerospace-grade aluminum for superior durability compared to traditional cast wheels.
• Hybrid Beadlock Compatibility: Deep stepped lip design allows compatibility with RRW Protection Rings, Billet Protection Rings, and True Beadlock Rings.
• Lightweight Forged Performance: Approximately 15–20% lighter than comparable cast wheels, improving suspension response and handling.
• Enhanced Thread Engagement: Hybrid (-H) design features deeper lug pockets providing approximately 50% more thread engagement for safer installation.
• Trail-Ready Strength: Engineered with a 2,500 lb load rating capable of supporting fully equipped overland and off-road vehicles.
• Optimized Structural Design: FEA-tested chamfering and reinforced geometry improves load distribution and durability.
• Brushed Aluminum Finish: Premium machined finish that highlights the forged construction while delivering a clean, high-end motorsport look.
• TPMS Compatible: Designed to work with most factory tire pressure monitoring systems.
• RRW ET Lug Compatible: Designed for use with RRW Extended Thread lug nuts for proper seating and maximum stud engagement.
• ABS Embossed Center Caps Included: RRW branded center caps included standard.

Specifications

• Wheel Size: 17x8.5
• Offset: +25
• Bolt Pattern: 6x5.5 / 6x139.7
• Center Bore: 95.3mm (hub-centric for 2024+ Toyota platforms)
• Material: Forged 6061-T6 aluminum
• Load Rating: 2,500 lbs
• Certification: JWL / VIA certified
• Finish: Brushed Aluminum
• TPMS Compatible: Yes

Vehicle Fitment

+25 Offset Fitment:

• Toyota Tacoma (2024+)
• Toyota Tundra (2022+)
• Toyota 4Runner (2024+)
• Toyota Land Cruiser 250
• Lexus GX550
• Ford Ranger
• Ford Bronco

(Fitment depends on tire size and suspension setup.)

Customization Options

RRW Hybrid wheels allow multiple configurations depending on your build:

• Run as a standard wheel
• Add RRW accessory bolts (black or gold)
• Add RRW Protection Rings for wheel lip protection
• Upgrade to RRW True Beadlock Rings (off-road use only)

Protection rings can be replaced after heavy trail use to help protect your wheel investment.

Lug Nut Requirements

RRW wheels require aftermarket 60° conical seat lug nuts. Factory lug nuts are not compatible.

We recommend RRW ET (Extended Thread) spline lug nuts to ensure proper seating and maximum thread engagement, especially important for Toyota applications with shorter factory studs.

Closed-end lug nuts are typically recommended for daily driven and off-road vehicles.

What's Included

• RRW RG3-H Hybrid Monoforged Wheel
• RRW ABS Center Cap

Shipping Information

All RRW wheels ship via FedEx or UPS Ground and are securely packaged to ensure safe delivery.

Important Notes

⚠️ Wheels equipped with True Beadlock Rings are for OFF-ROAD USE ONLY and are not DOT approved for highway use.

Product photos may show optional accessories sold separately. Renders are for reference only.

Summary

The RRW RG3-H Hybrid Monoforged Wheel in Brushed Aluminum delivers forged strength, lightweight performance, and RRW’s modular hybrid beadlock versatility in a clean, premium finish. Perfect for modern truck platforms, this wheel is ideal for daily drivers, overland builds, and serious off-road rigs.
