Plug & Play Pro Camo Fender Flare Wire Harness for Tundra (2022-2026)

Upgrade your Toyota Tundra (2022-2026) with the Plug & Play TRD Pro Camo Fender Flare Wire Harness. Designed for seamless integration and effortless installation, this wire harness kit is tailored specifically for TRD Pro Fender Flares.

Key Features:

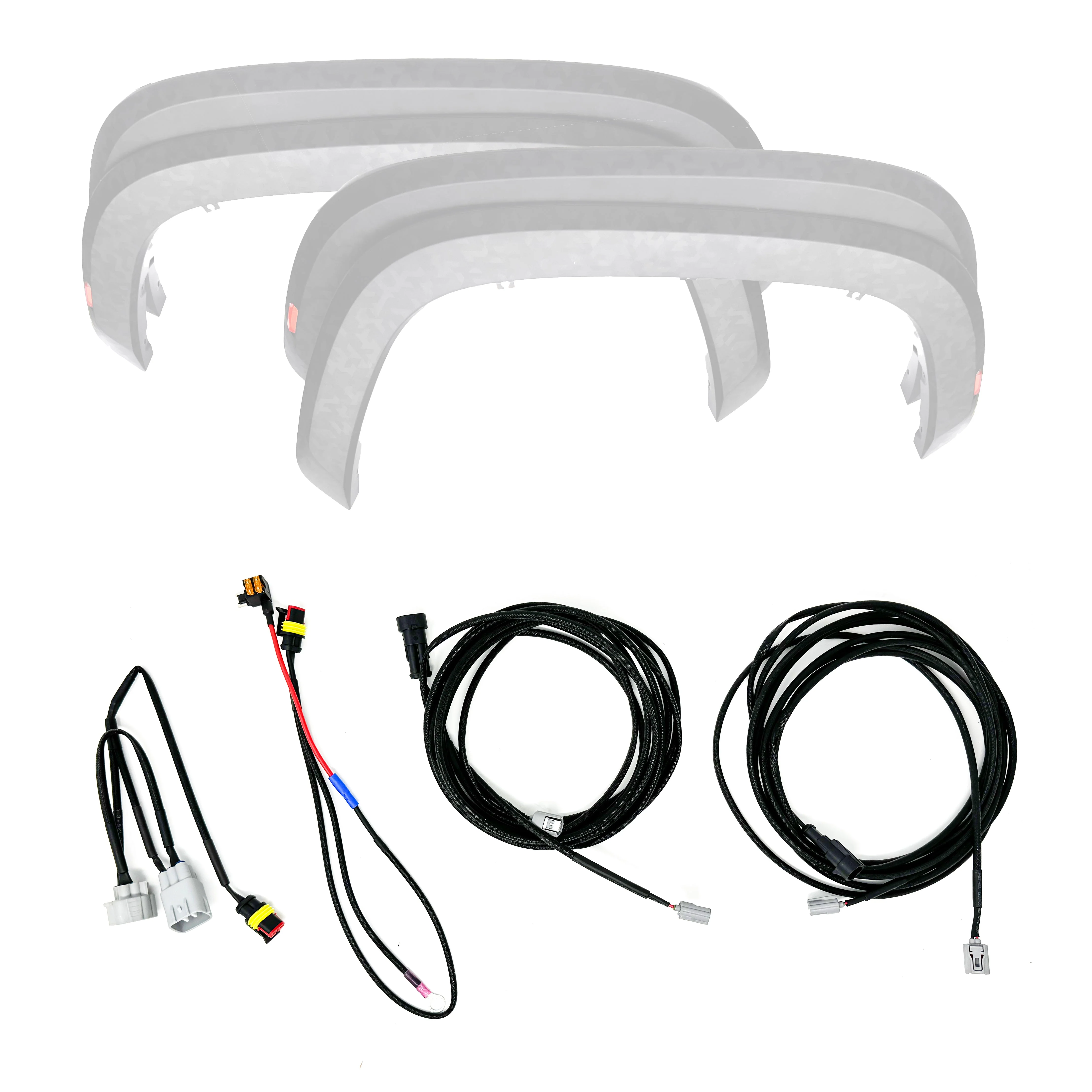

• Complete Kit: Includes everything needed for a straightforward installation:
  • Braided cable-wrapped wire harness with waterproof connectors for all four fender flares.
  • One fuse box add-a-circuit harness for the front fender marker lights.
  • One tail light splitter harness for the rear fender marker lights (compatible with both premium sequential and standard OEM tail lights).
  • Two fender flare harnesses with two leads each.
• High-Quality Connectors: These are not 3D printed connectors but actual waterproof connectors designed perfectly for the fender flare marker lights.
• Durable Construction: The wire harness is wrapped in braided cable for added protection and durability.

Fitment:

• Application: Fender Flare Wire Harness
• Make: Toyota
• Model: Tundra
• Years: 2022, 2023, 2024, 2025, 2026

Installation Instructions:

1. Rear Fender Flares:

   • Remove a tail light by opening your tailgate and removing both bolts with a 10mm socket.
   • Unplug the 6-pin tail light harness and replace it with the supplied splitter harness.
   • Plug the tail light harness back into the other side of the splitter harness.
   • Plug the 2-lead harness into the 2-pin connector coming off the tail light splitter harness and run the 2-lead fender flare cable to each fender flare.

2. Front Fender Flares:

   • Remove a fuse labeled ENG IGR in either the passenger or driver fuse box.
   • Replace the pulled fuse into the empty slot on the supplied fuse tap and insert the fuse tap (with both slots now occupied) into the ENG IGR location.
   • Run the 2-lead fender flare cable to each fender flare and plug it into the 2-pin connector off the fuse box.
   • Use the supplied O-ring terminal to ground the circuit by pulling the 10mm bolt with white wires on the sidewall. Fasten the O-ring terminal to the bolt and reattach it to the sidewall.

Additional Information:

• Fender Flares Not Included: This kit is for the wire harness only.
• Easy Installation: Designed for a plug-and-play installation, making it simple to upgrade your Tundra with minimal effort.

Enhance your Toyota Tundra with the Plug & Play TRD Pro Camo Fender Flare Wire Harness, ensuring reliable and stylish marker light functionality. Order now and take your truck's customization to the next level!
