Blaze Off-Road Plug-and-Play Wiring Harness for Full-Size Vehicles

Simplify your accessory wiring with the Blaze Off-Road Plug-and-Play Wiring Harness for Full-Size Vehicles, a professionally built wiring solution designed to eliminate guesswork and provide clean, reliable electrical connections for your off-road lighting systems. Built using premium materials and clearly labeled wiring, these harnesses are designed to make DIY installation faster, safer, and more organized.

Since every build is different, these harnesses are built to order based on your specific vehicle and lighting setup, ensuring proper fitment and functionality for your application.

⚠️ Before ordering, you MUST include your vehicle information and light details in the order notes.

Features

• Vehicle Specific Design: Built based on your vehicle and lighting configuration.
• Designed for Full-Size Vehicles: Compatible with trucks and SUVs like Tundra, Sequoia, F-150, Raptor, Expedition, Ram 1500, and similar platforms.
• Plug-and-Play Integration: Designed to connect directly to compatible switching systems.
• Premium Materials: Built using high-quality wiring, connectors, and motorsports-grade components.

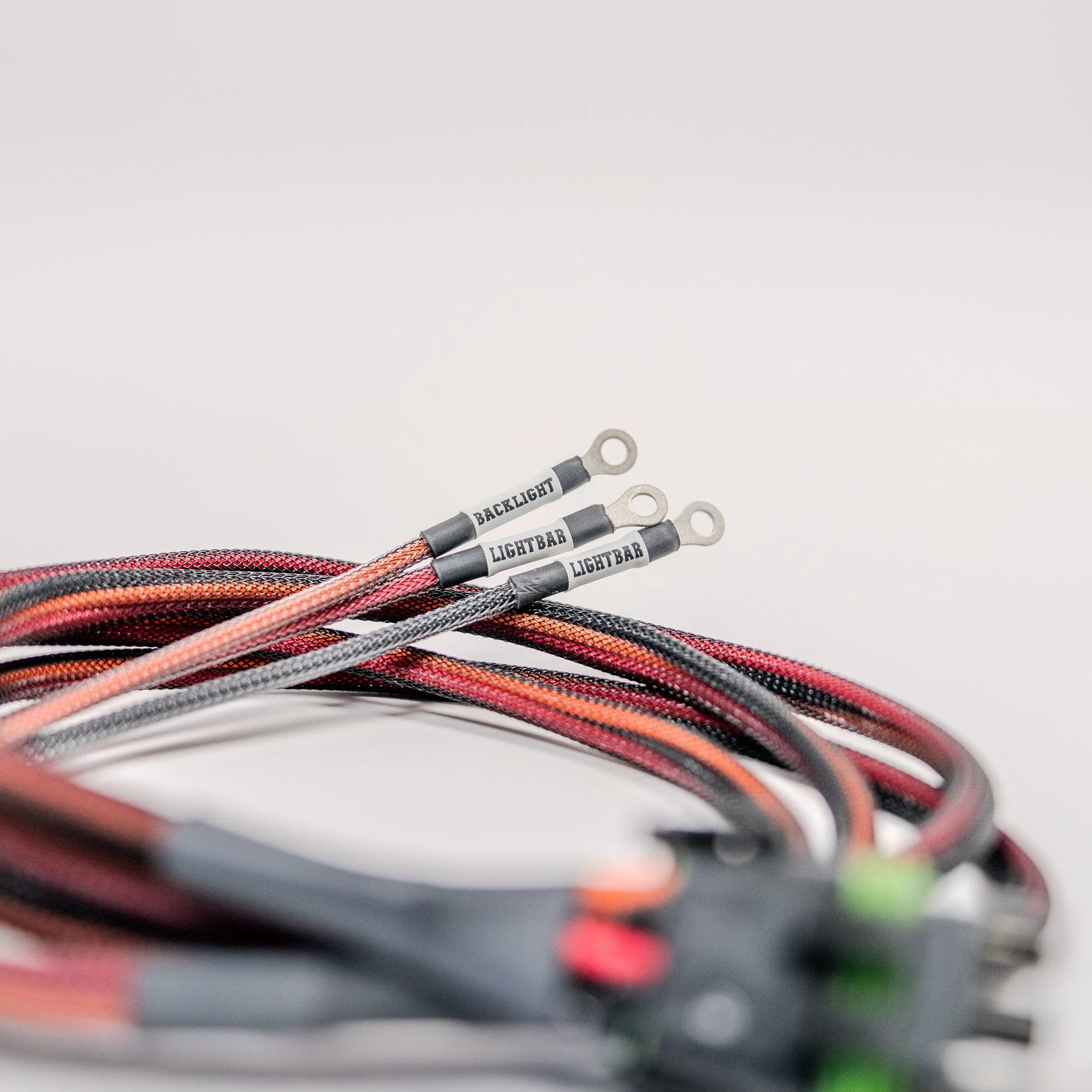

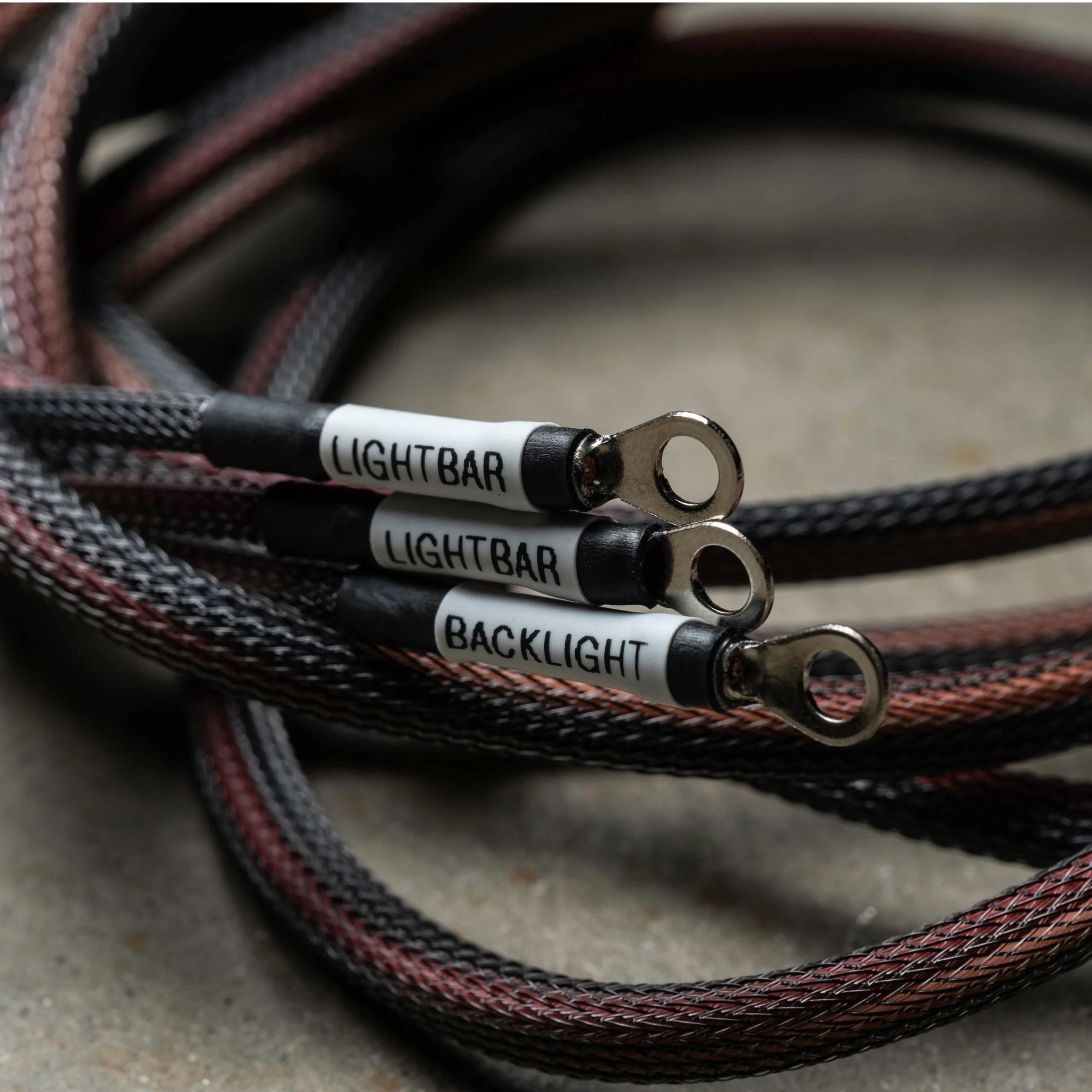

• Clearly Labeled Wiring: Printed heat shrink labels allow for quick identification during installation.
• Clean & Professional Wiring Solution: Designed to improve reliability and reduce electrical clutter.
• Made to Order: Each harness is built specifically for your setup.
• Limited Lifetime Warranty: Subject to inspection and proper use.

Compatible Switching Systems

These harnesses are designed to work with:

• Garmin PowerSwitch systems
• Switch-Pros systems (including Blaze pre-wired kits)
• sPOD systems
• Most power tray and Switch-Pros mounting tray setups

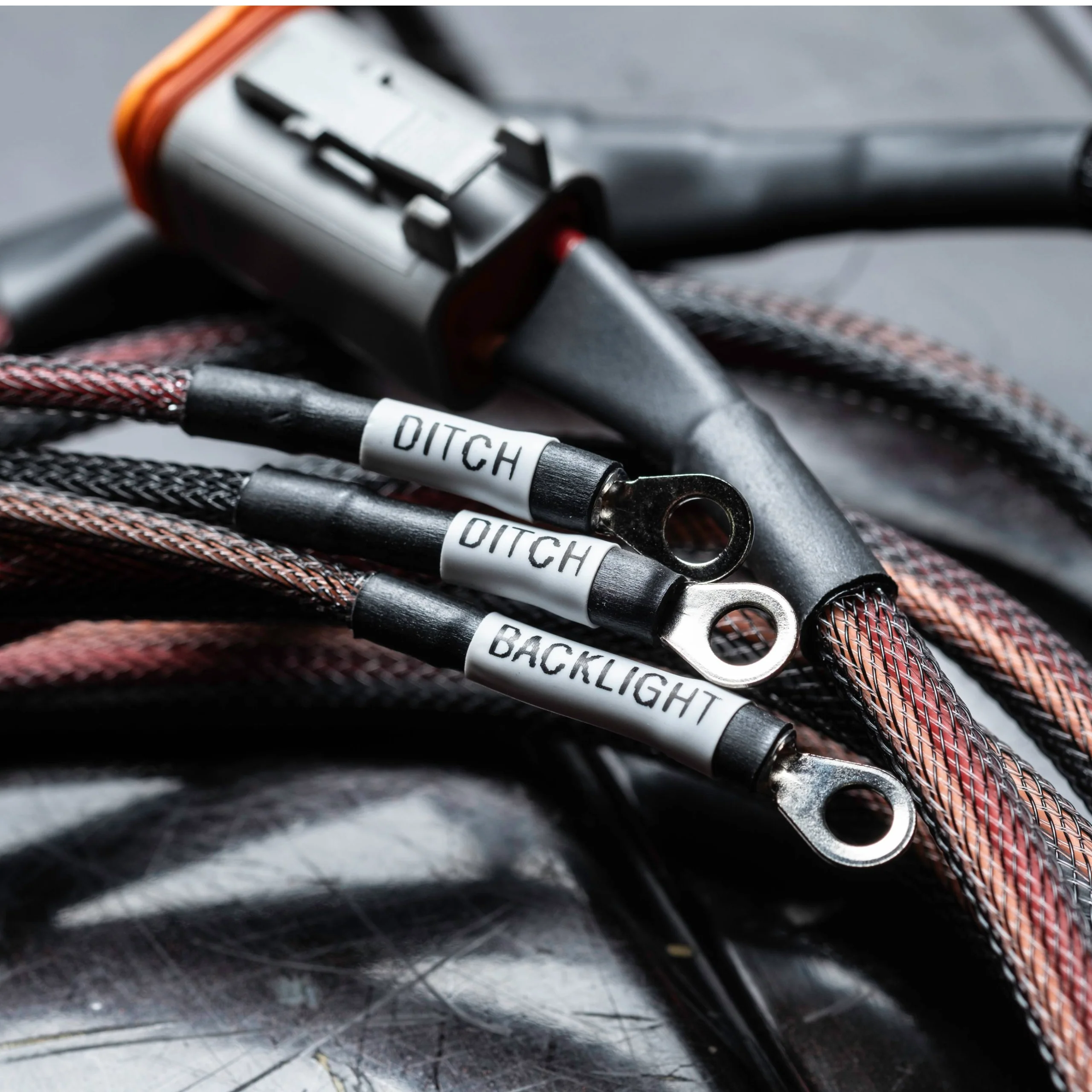

Harnesses terminate with ring terminals compatible with these switching systems.

Important Ordering Requirements (READ BEFORE ORDERING)

You MUST include the following in your order notes:

• Vehicle Make
• Vehicle Model
• Vehicle Year
• Lighting brand and model
• Switching system being used
• Total number of lights

Orders built with incorrect customer information cannot be refunded or rebuilt.

Important Product Notes

• Harnesses are designed for under-hood switching systems.
• Low beam wiring is not supported on lights with dual intensity features.
• Attempting to run both low and high beam circuits simultaneously can damage certain lighting systems.
• Two-pod harnesses will combine lights onto one switch.
• Two-pod harnesses are not compatible with Baja Designs LP Series lights (Array Harness required for those applications).
• Customer is responsible for calculating total amperage requirements.
• High amperage lighting setups may require relay harness upgrades.

Modification Policy

• Blaze Off-Road is not responsible for damage caused by improper installation or modification.
• Modified harnesses cannot be returned.
• Always measure carefully before cutting wiring.

Lead Time & Order Policy

• Made to order product
• Typical lead time: 1–2 weeks
• Orders entering production are subject to a 50% cancellation fee
• Orders cannot be cancelled or returned once shipped

Warranty

Blaze harnesses include a limited lifetime warranty, subject to inspection, installation quality, and intended use.

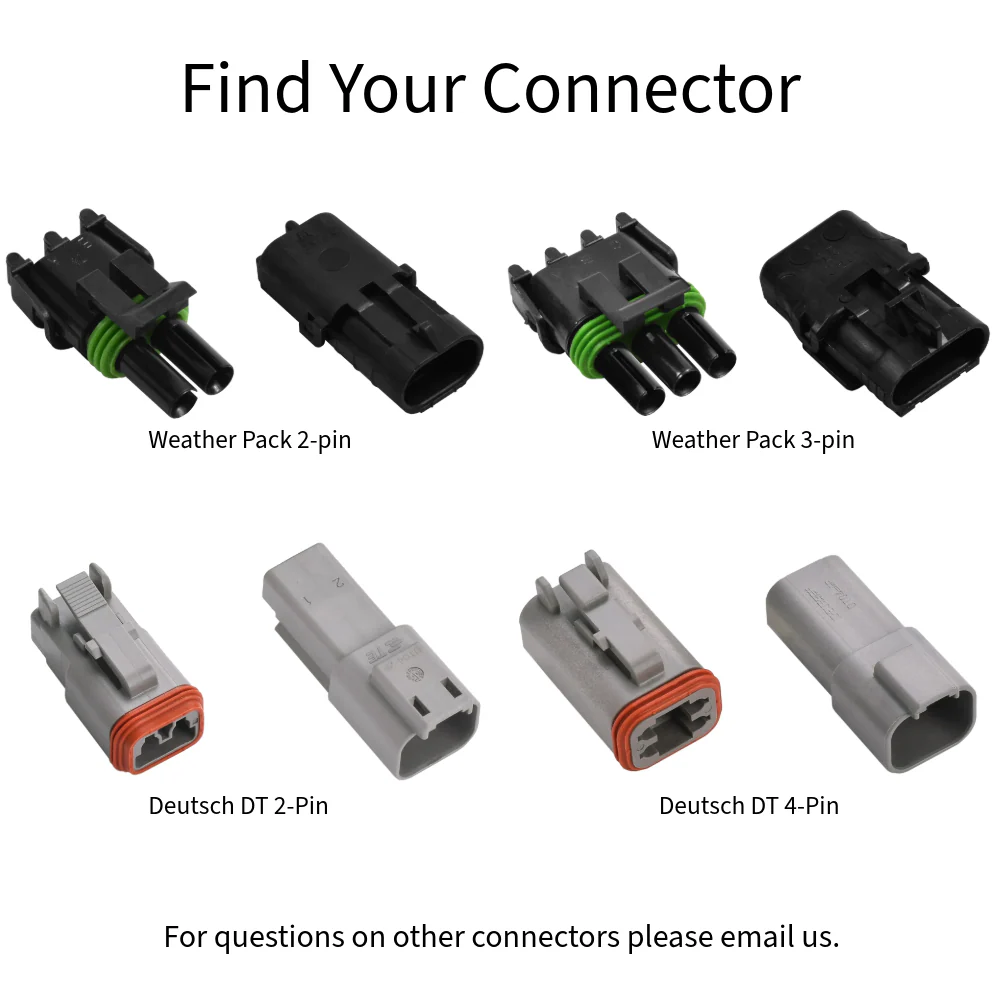

Common Connector Types Supported

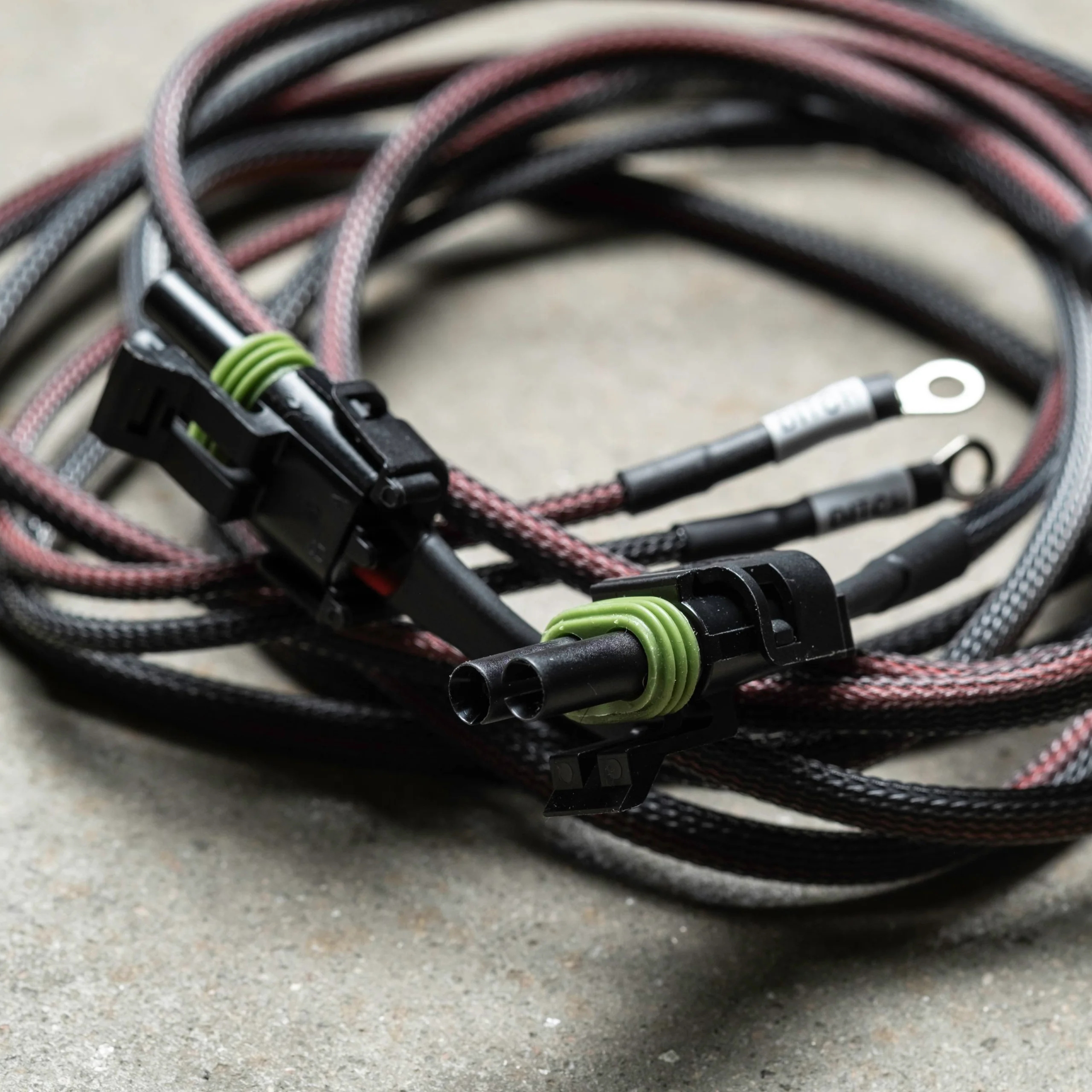

Baja Designs Weather Pack 2-Pin:

• S1
• S2
• Squadron

Baja Designs Weather Pack 3-Pin:

• XL Series
• S8 Light Bars
• OnX6 Light Bars

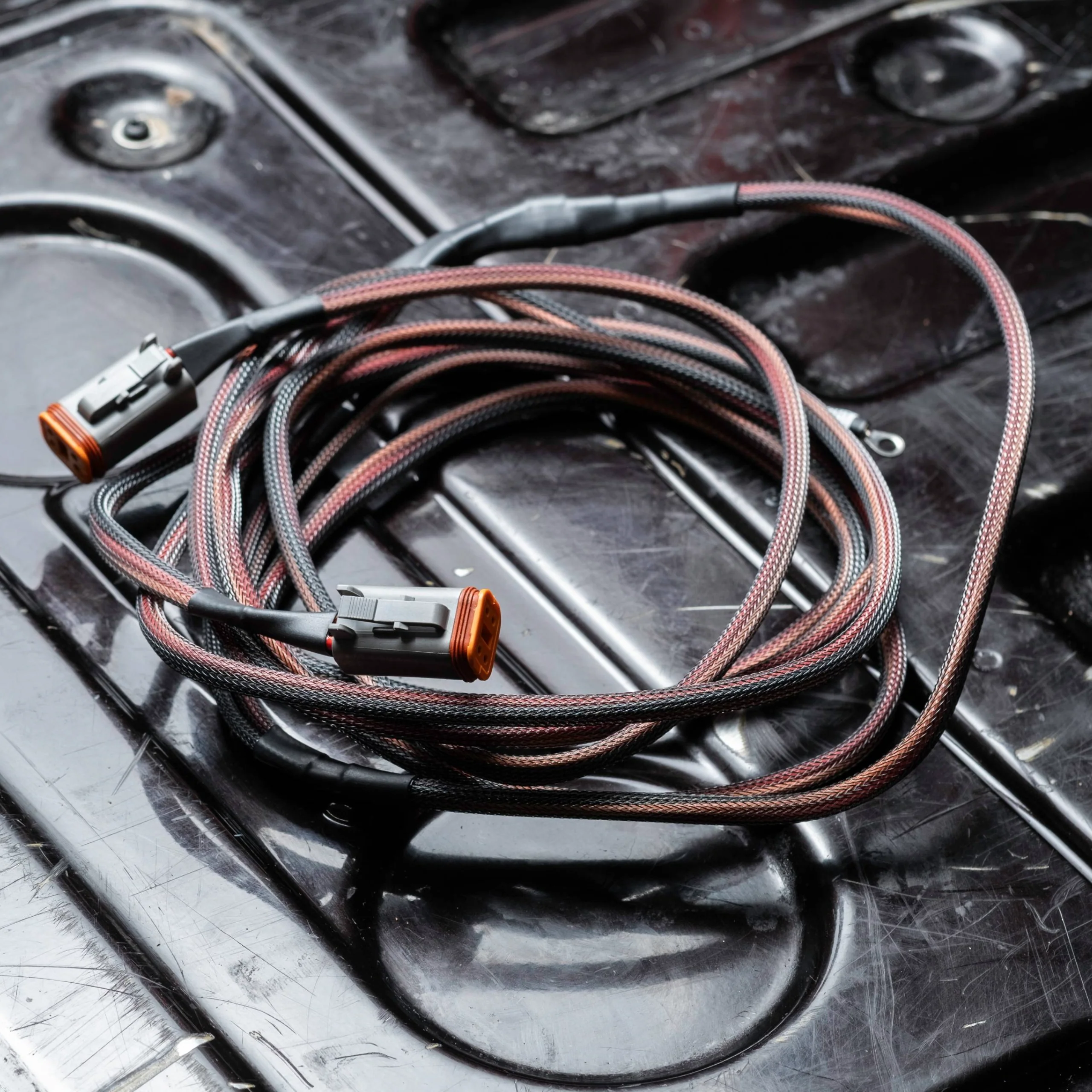

DT 2-Pin:

• Morimoto pods
• Diode Dynamics light bars
• Rigid pods (non-backlit)

DT 3-Pin:

• KC backlit pods

DT 4-Pin:

• Baja Designs LP Series
• Diode Dynamics backlit pods
• SS5 Light Bars

DTP Connectors:

• Higher amperage light bars
• Custom builds available upon request

If unsure of your connector type, contact us before ordering.

Summary

If you're looking for a clean, professional way to wire your off-road lighting on a full-size truck or SUV, the Blaze Off-Road Plug-and-Play Wiring Harness provides a purpose-built solution designed for reliability and ease of installation. Built to your exact setup using premium materials, this harness helps ensure your electrical system is as dependable as the rest of your build.
