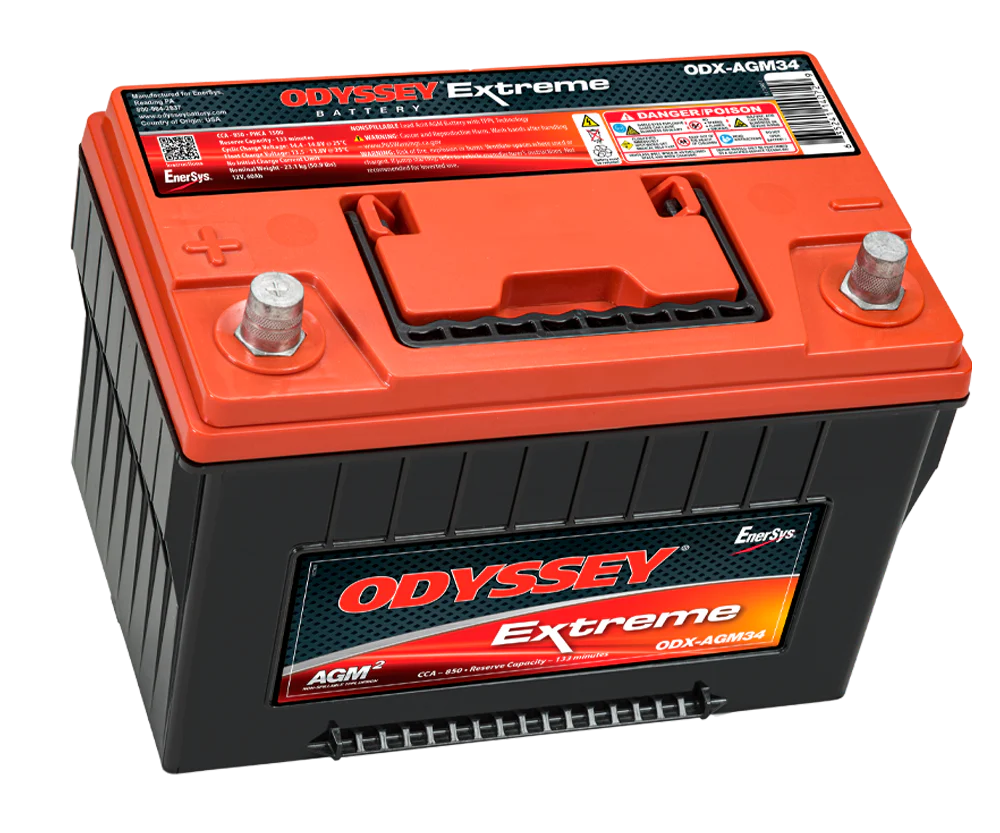

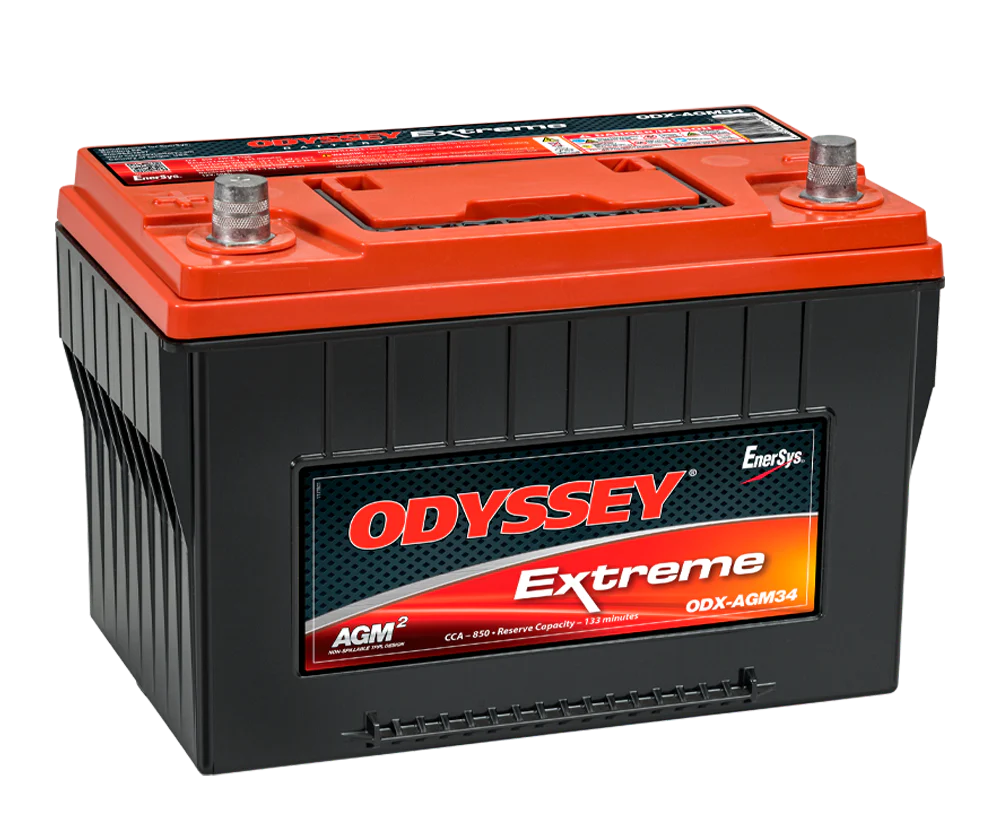

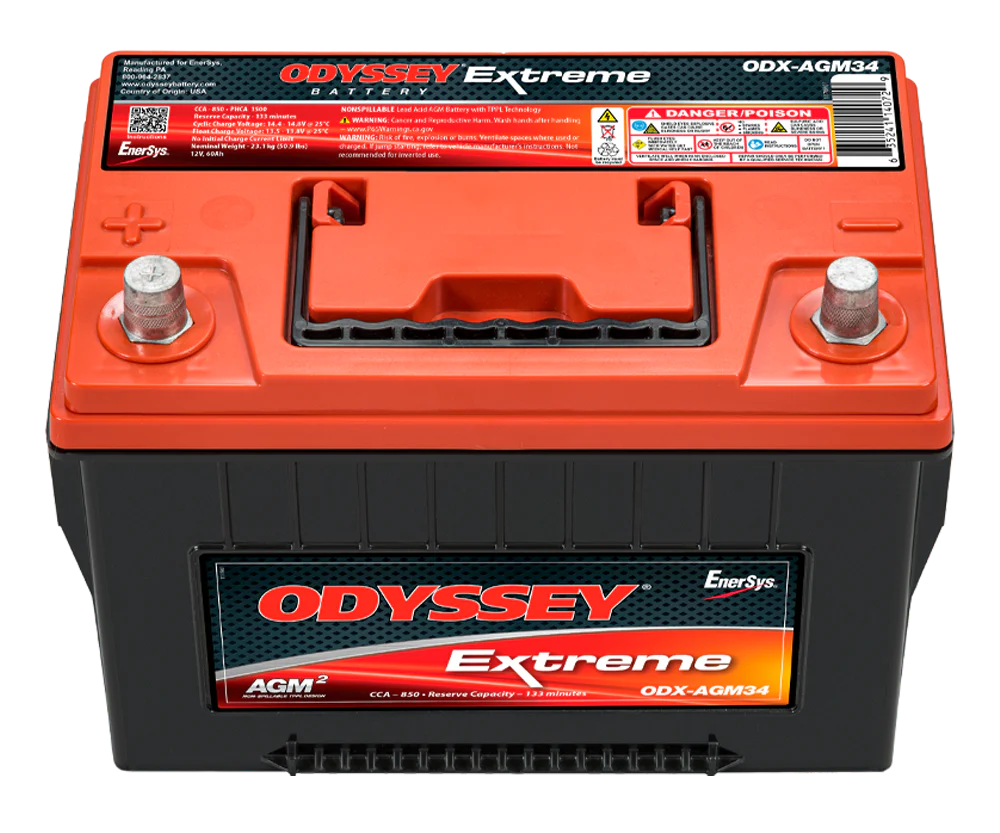

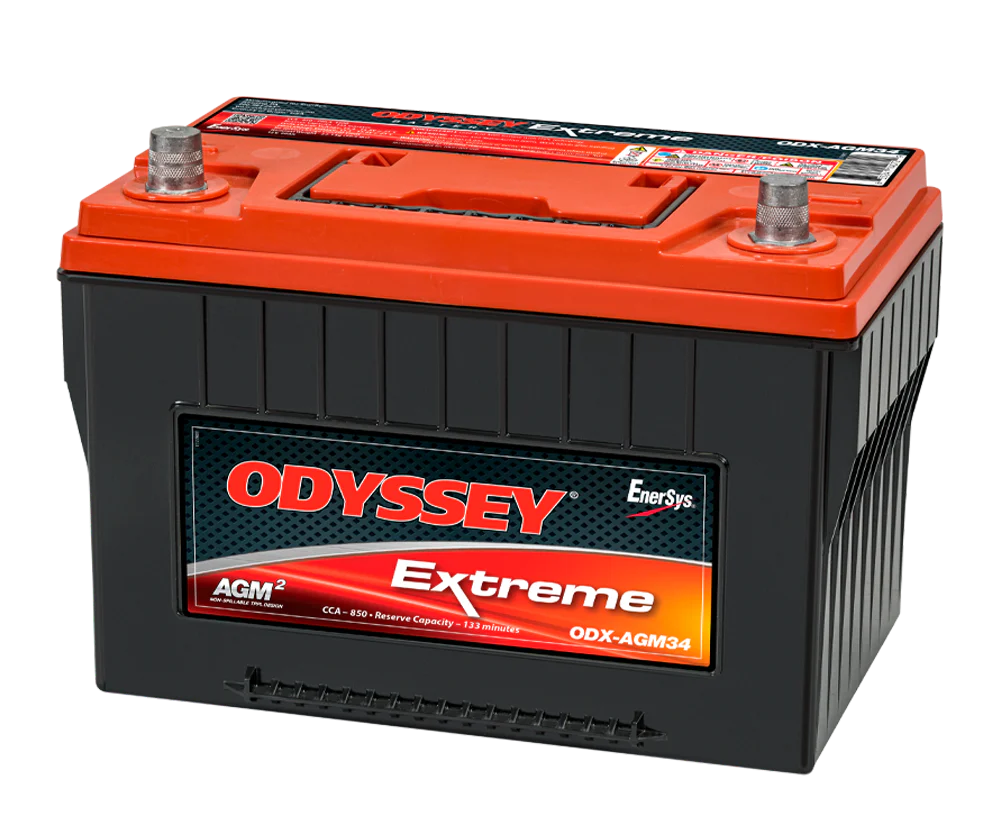

Odyssey Extreme Series Battery Group 34

Designed to power today’s electronics‑packed vehicles, the Odyssey Extreme Series Group 34 combines pure‑lead TPPL plates and an AGM, non‑spillable design to deliver twice the power and three times the life of conventional batteries. With 1500 PHCA and 850 CCA, it ensures reliable starts, rapid recovery, and exceptional deep‑cycle capability—up to 400 cycles at 80 % depth of discharge.

Features

• Exceptional Cranking Power: 1,500 Pulse Hot Cranking Amps and 850 Cold Cranking Amps to fire overworked starters in any climate.
• Deep‑Cycle Performance: Up to 400 cycles at 80 % DoD means you can run winches, lights, compressors, and more without worry.
• Rugged Durability: AGM construction and Thin Plate Pure Lead (TPPL) plates resist shock, vibration, and extreme temperatures from –40 °F to +176 °F.
• Mount Anywhere: Non‑spillable design allows installation in virtually any orientation (except inverted)—ideal for tight engine bays or custom rack setups.
• Long Shelf Life: Holds charge for up to 2 years at 68 °F (20 °C) without maintenance, so it’s ready when you are.

Specifications

• Battery Type: Absorbed Glass Mat (AGM) with Thin Plate Pure Lead (TPPL)
• Voltage: 12 V
• Cranking Ratings:
  • 1,500 PHCA (5‑sec Pulse Hot Cranking Amps)
  • 850 CCA (Cold Cranking Amps)
  • 1,250 HCA (Hot Cranking Amps)
  • 1,050 MCA (Marine Cranking Amps)
• Capacity:
  • 68 Ah (20 hr rate)
  • 62 Ah (10 hr rate)
• Reserve Capacity: 135 minutes
• Internal Resistance: 2.5 mΩ
• Short‑Circuit Current: 3,100 A
• Recommended Min. Charge Current: 6.2 A
• Terminals: SAE automotive posts

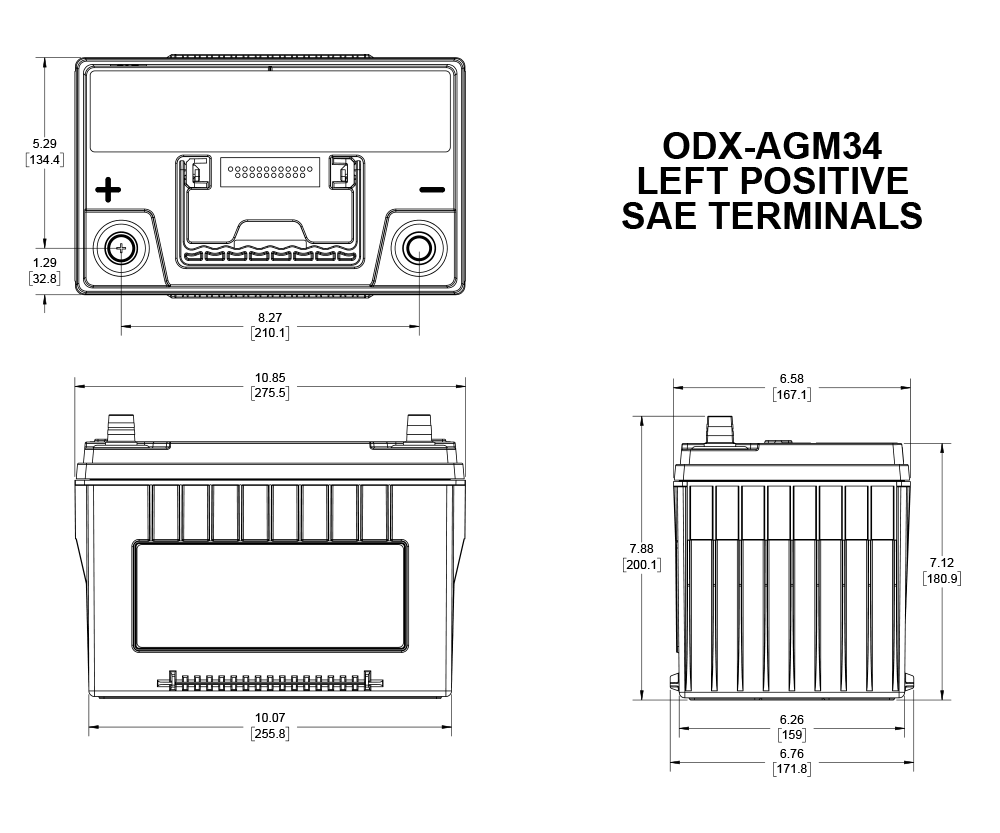

• Dimensions:
  • Length: 10.90 in
  • Width: 6.80 in
  • Height (with terminals): 7.90 in
  • Height (container only): 7.30 in
• Weight: 49.5 lbs
• Operating Range: –40 °F (–40 °C) to +176 °F (+80 °C)
• Optimum Storage: 68 °F (+20 °C)
• UPC: 635241140729

Warranty & Support

• Storage Life: 2 years at 68 °F without recharge
• Warranty: Limited 3‑year commercial warranty

Experience the power, longevity, and resilience of Odyssey Extreme Series Group 34—built to start any job and outlast the competition.
