Morimoto XB Evo Hybrid LED Headlights for Tacoma (2016-2023)

The all-new XB Evo Hybrid headlights are a showcase of everything Morimoto is made of at a price that everybody can afford. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Here, the Tacoma XB Evo Hybrid headlight utilizes the same Bi-LED projectors found in the higher end XB Evo model to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. All optics are powered by the latest OE-grade automotive LEDs from Nichia in Japan. XB Evo Hybrid headlights aren't cheap, but they are built to a high standard and should easily last the life of your Tacoma!

Features

• XB Evo Hybrid: Much more than a design refresh, these headlights showcase Morimoto's commitment to delivering technology, style, and performance at an unbeatable price point.
• All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizes the same dual Bi-LED projectors found in the high-end XB Evo headlights.
• On and Off Road: DOT Compliant for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30%, making them the brightest option for Tacoma owners who want to maximize output for off-road use.
• DRL and Signals: Incredibly bright white LED Daytime Running light and equally impressive amber LED turn signals with fade-off effect operate through the same set of TIR-based optics.
• Designed, engineered, and tested: In the USA by Morimoto, the XB Evo Hybrid headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.

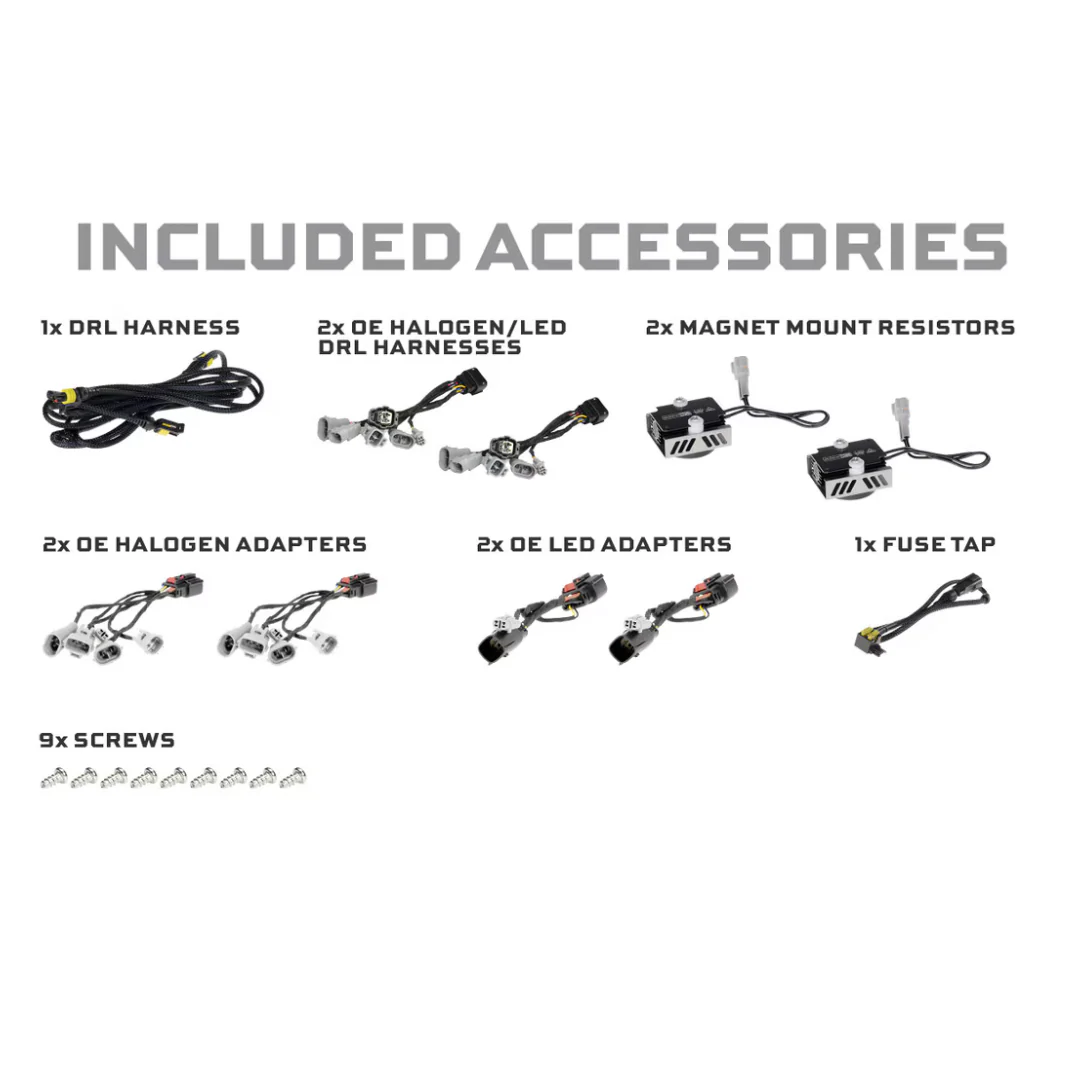

Parts Included

• Headlights: 2x (One Pair) 16-23 Toyota Tacoma XB Evo Hybrid
• Wiring: 2x Halogen Adapters, 2x LED Adapters, 2x Magnet Mount Resistors, 1x DRL Harness, 1x Fuse Tap, 9x Screws
• Warranty: Five (5) Years

Specifications

• Traffic Pattern: LHD / Right Hand Traffic Only
• Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)
• Output (Supercharged Drivers): Non-Compliant
• Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

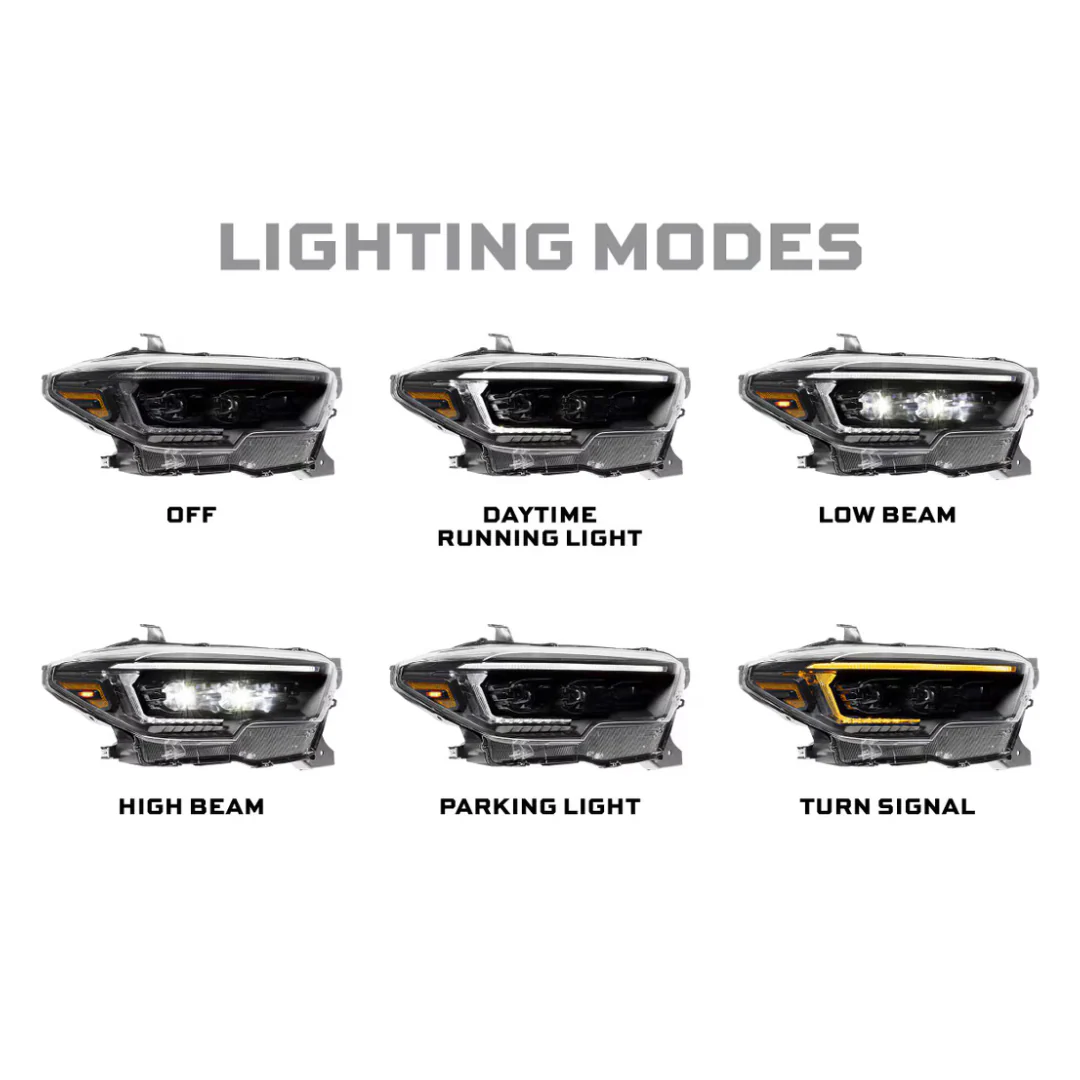

• Functions: Low, High, Park, Turn, and DRL
• Turn Signal Modes: Fade Off
• DRL Colors: White
• DRL/Signal Optics: Glass-like 3D TIR Optics with topography sidewall pattern
• Internal Finish: Piano Black w/ contrasting textures
• Side marker: Amber side reflex reflector (DOT compliant)
• Wiring: Plug n Play for all sub-models within model year range
• Lens Details: Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)

Fitment

• Toyota Tacoma: 2016-2023 (SR, SR5, TRD Sport, TRD Off-Road, Limited, Trail Special Edition, and TRD Pro)
• Compliance: Meets all DOT, SAE and FMVSS108 Standards*
• Supercharged Drivers: LF2-DRVSC9*
• *NOTE: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.
• NOTE: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

Installation

• Click Here!
