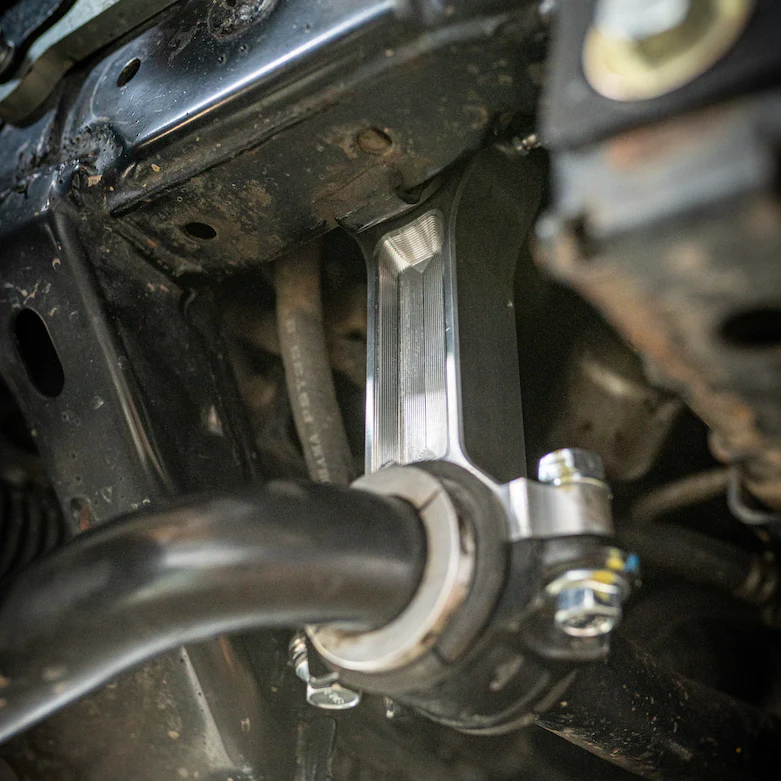

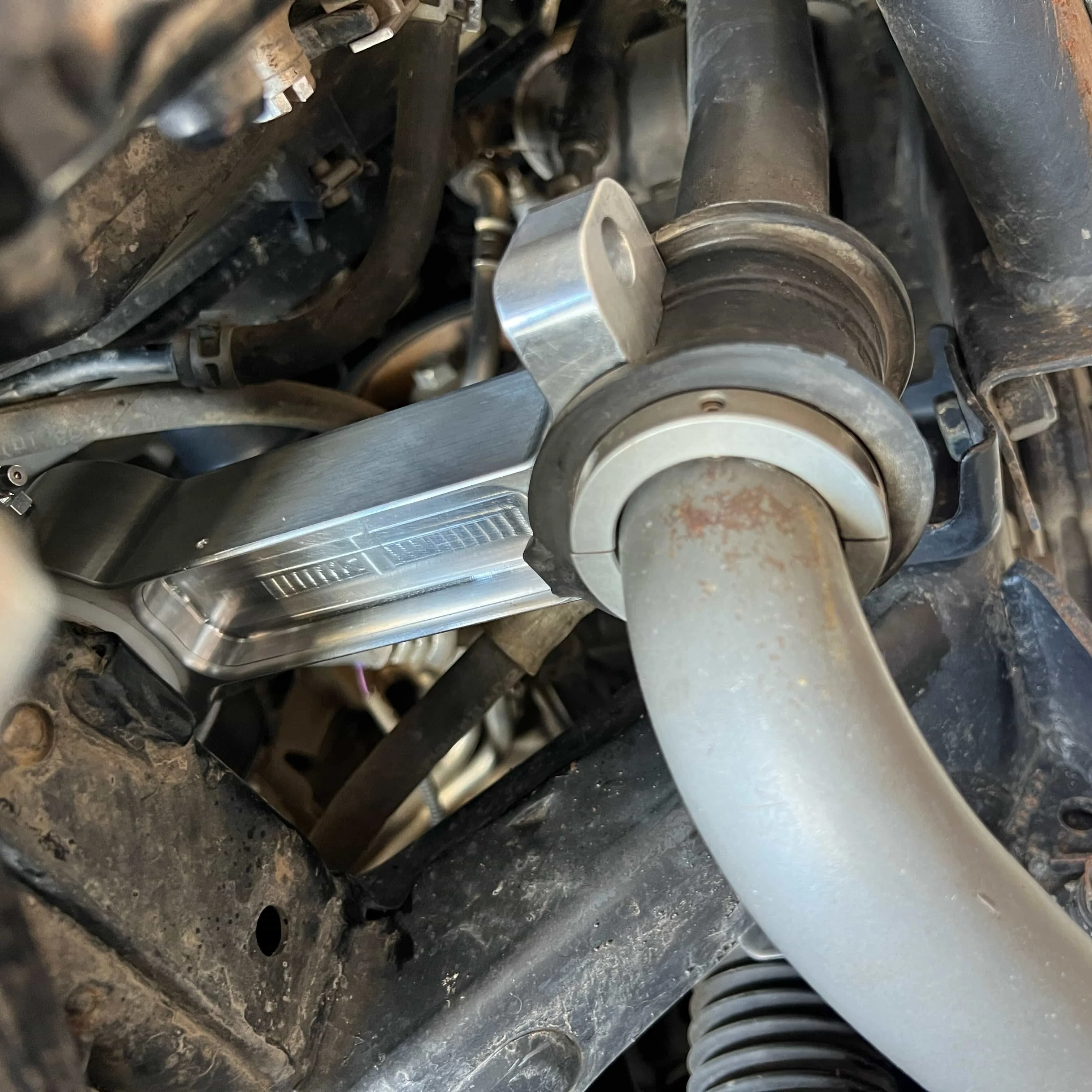

Dr KDSS Front Billet Link for Toyota 4Runner (2010–2024), Lexus GX460 & Prado 150

Unlock the full potential of your KDSS suspension with the Dr KDSS Front Billet Link, a performance upgrade designed to eliminate the binding caused by the factory rubber bushing. CNC-machined from aircraft-grade billet aluminum and field-tested in real off-road environments, this upgraded front KDSS link allows smoother suspension movement, improved articulation, and more consistent sway bar operation when it matters most.

Designed for KDSS-equipped vehicles only, this is a functional suspension upgrade—not just a cosmetic modification.

Features

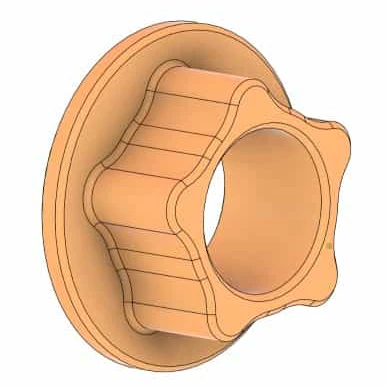

• Eliminates OEM Bushing Binding: Replaces the restrictive factory rubber bushing with a performance Delrin bushing that allows smoother rotation and suspension movement.
• Improved Suspension Articulation: Allows the front sway bar and suspension to cycle more freely for improved off-road performance.

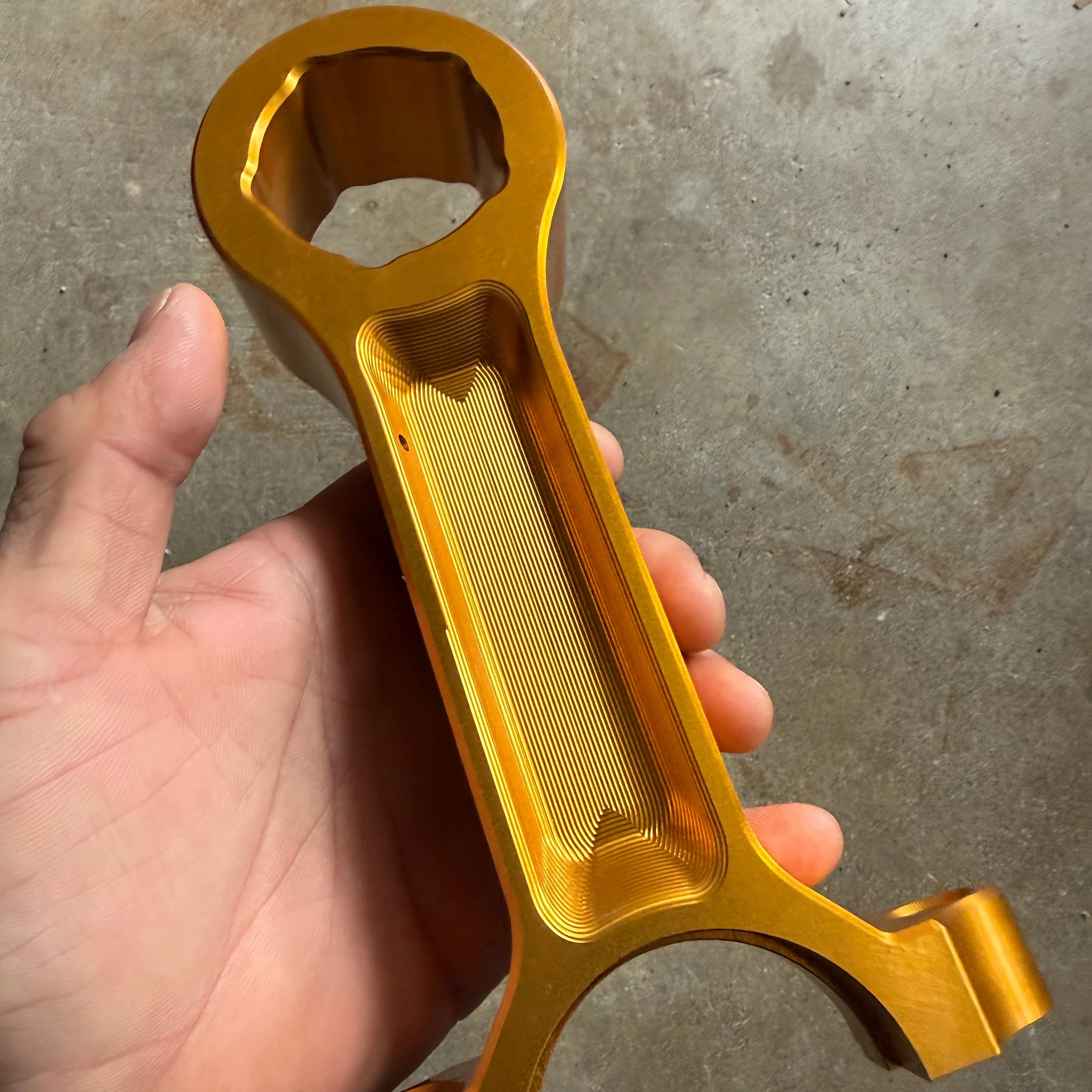

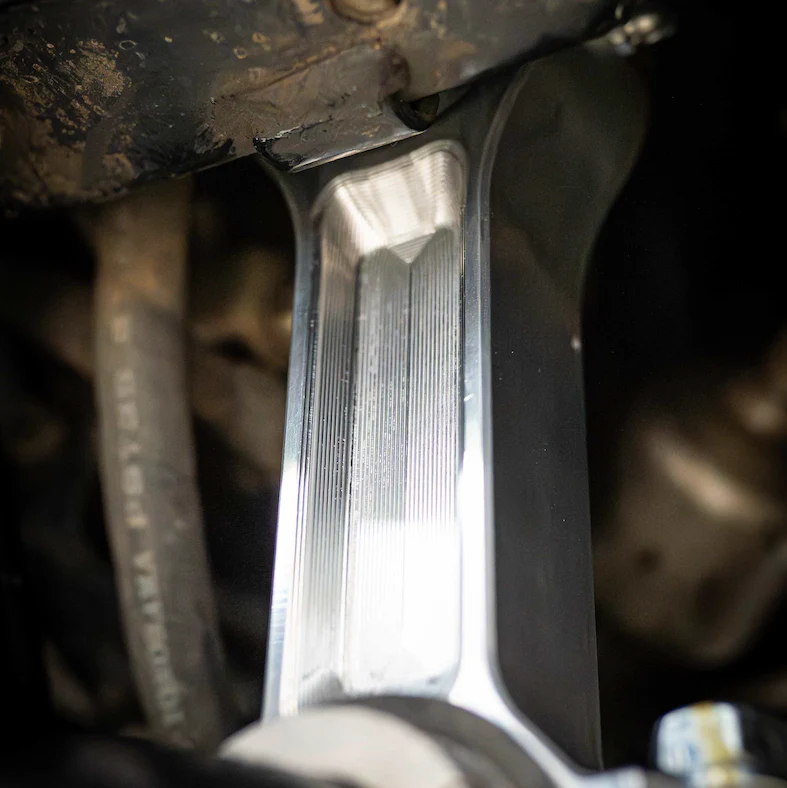

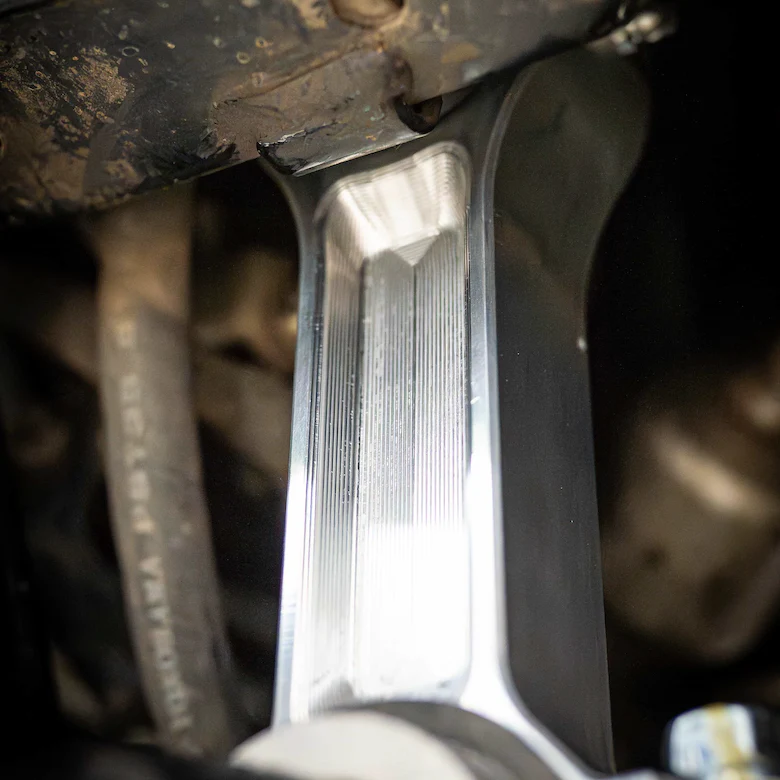

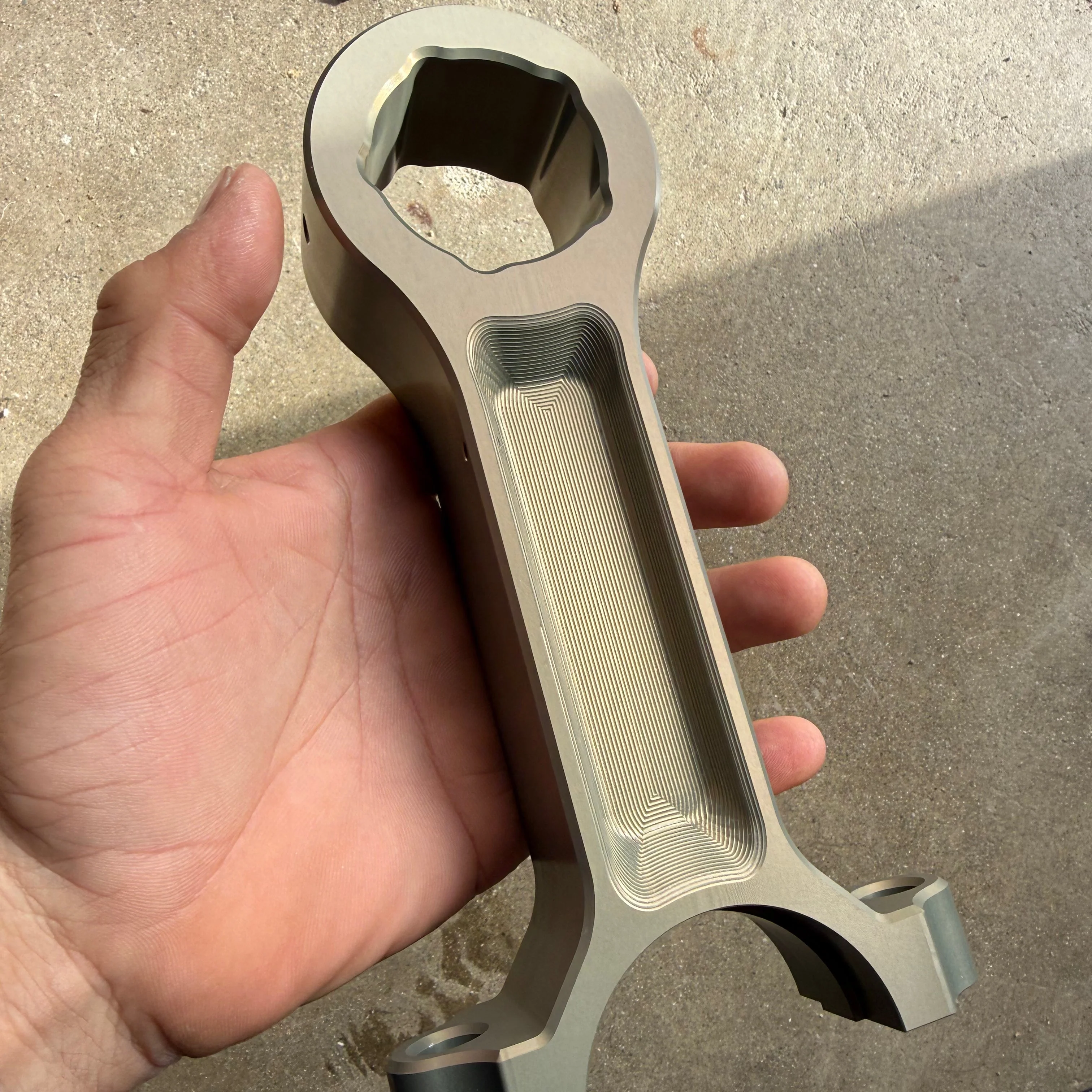

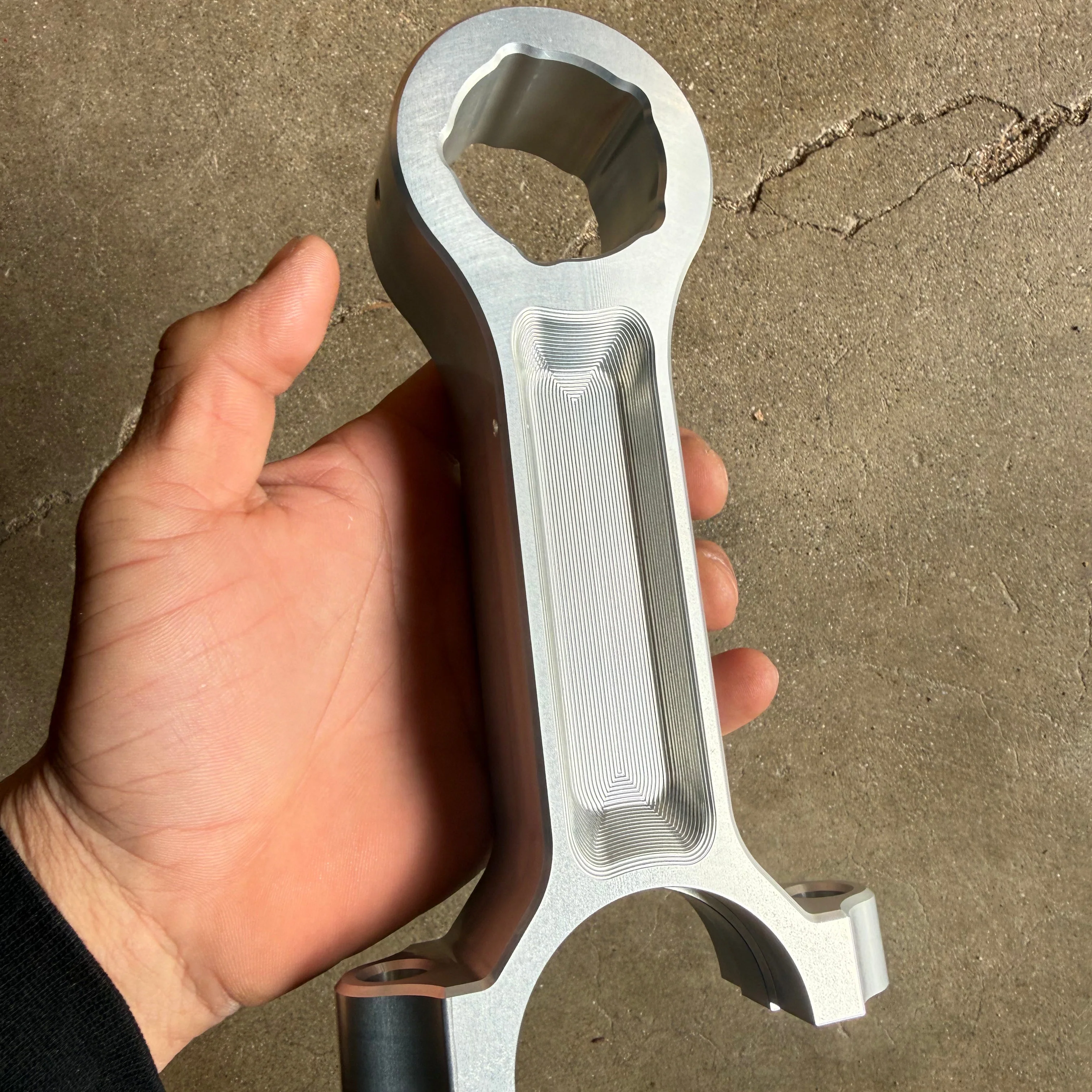

• CNC Billet Aluminum Construction: Precision machined from thick 6061 aircraft-grade aluminum for strength and durability in demanding environments.

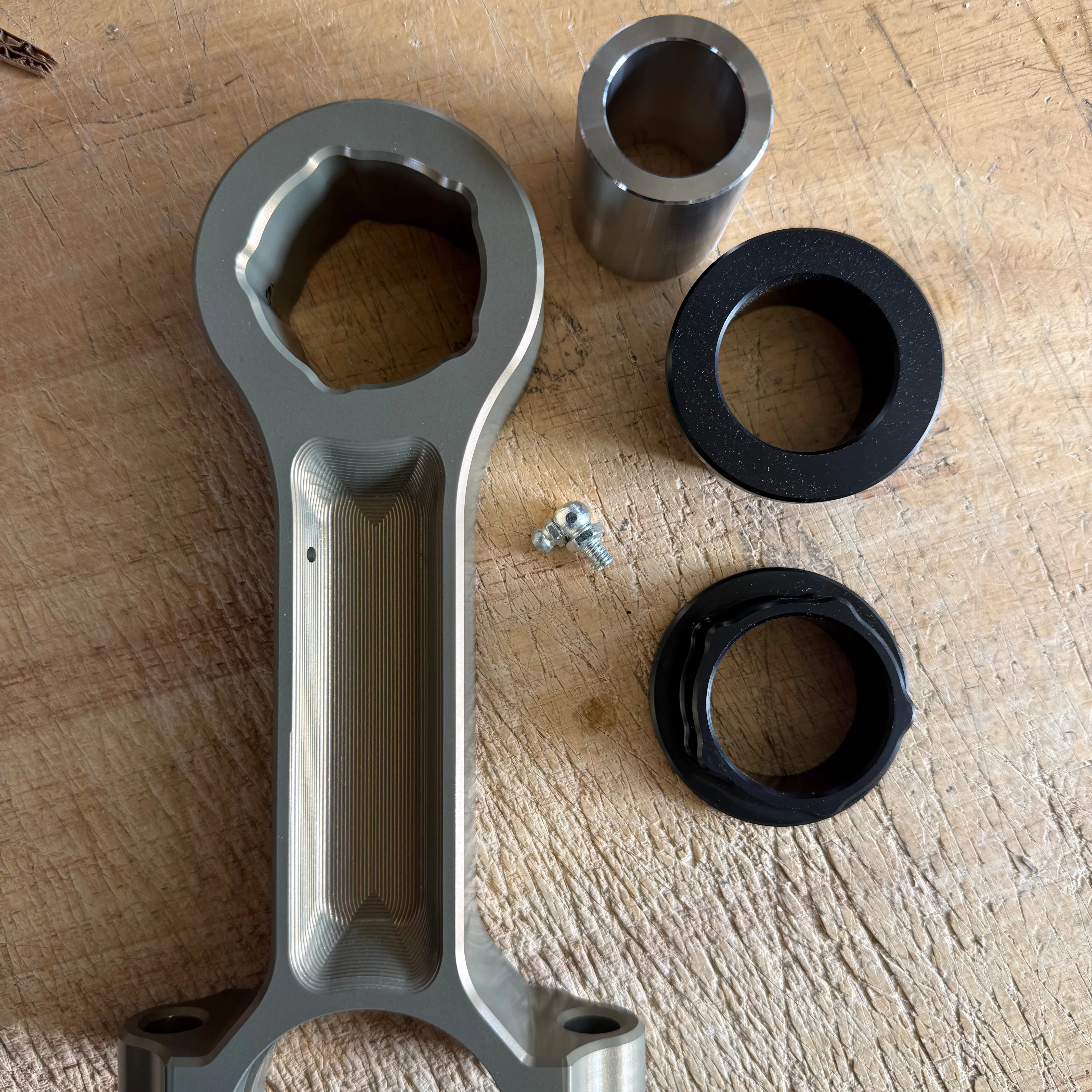

• Greaseable Performance Design: Features a fully serviceable bushing system with grease fittings to ensure long-term performance and smooth operation.
• Field Tested Durability: Proven through over 25,000 miles of real-world testing including Baja race support, desert trails, and high desert terrain.

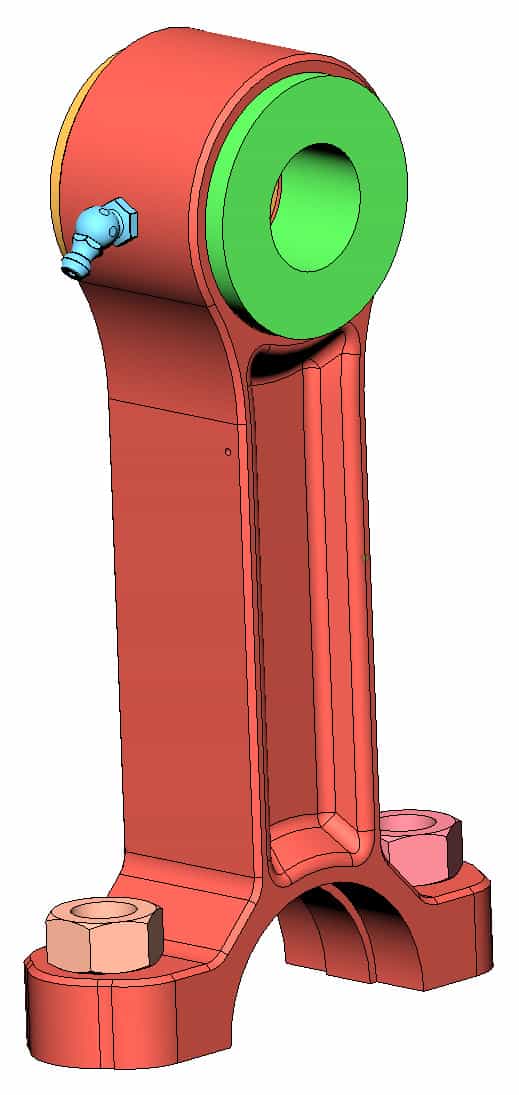

• Serviceable Pivot System: Designed with a greaseable Delrin bushing and integrated pilot hole for optional safety wire installation.

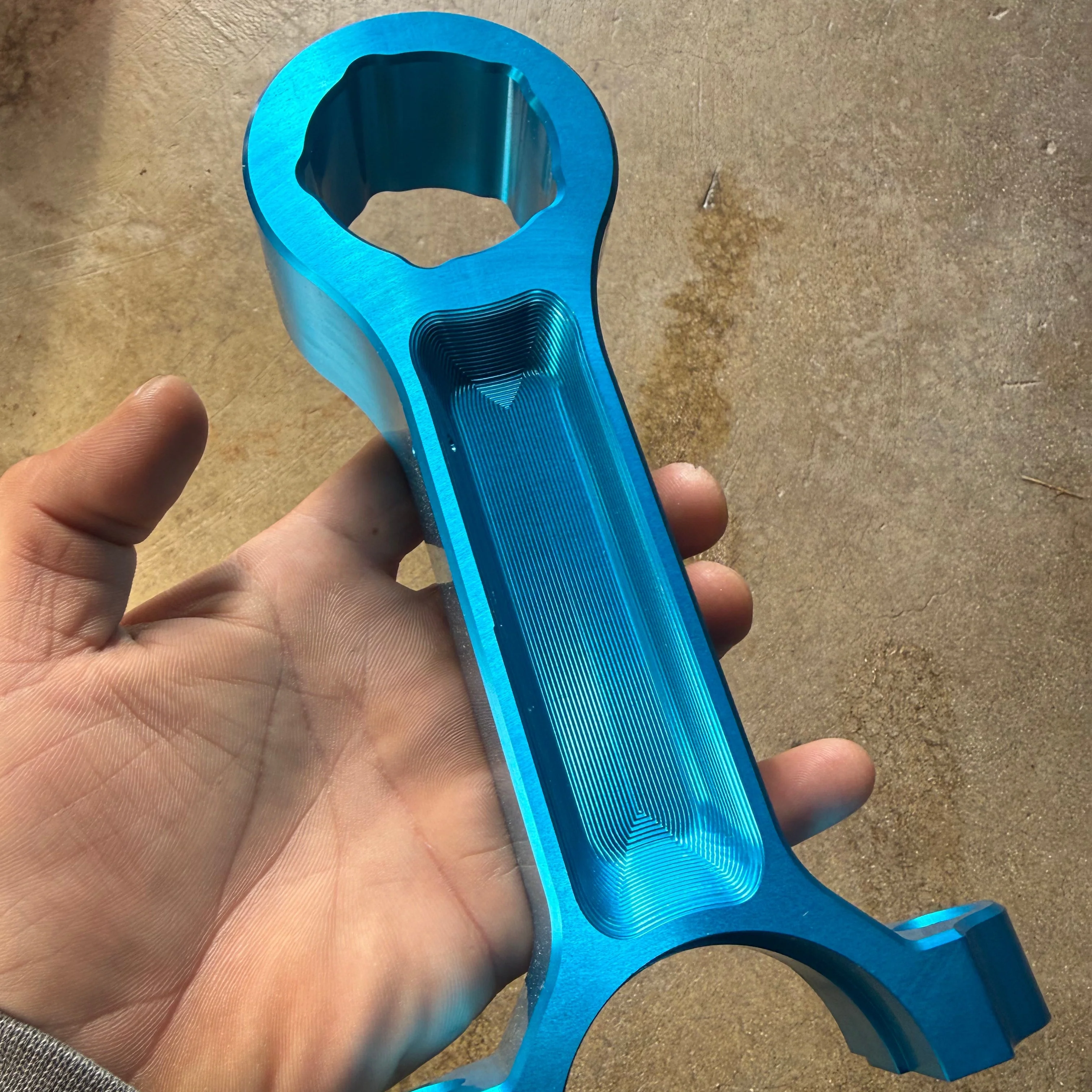

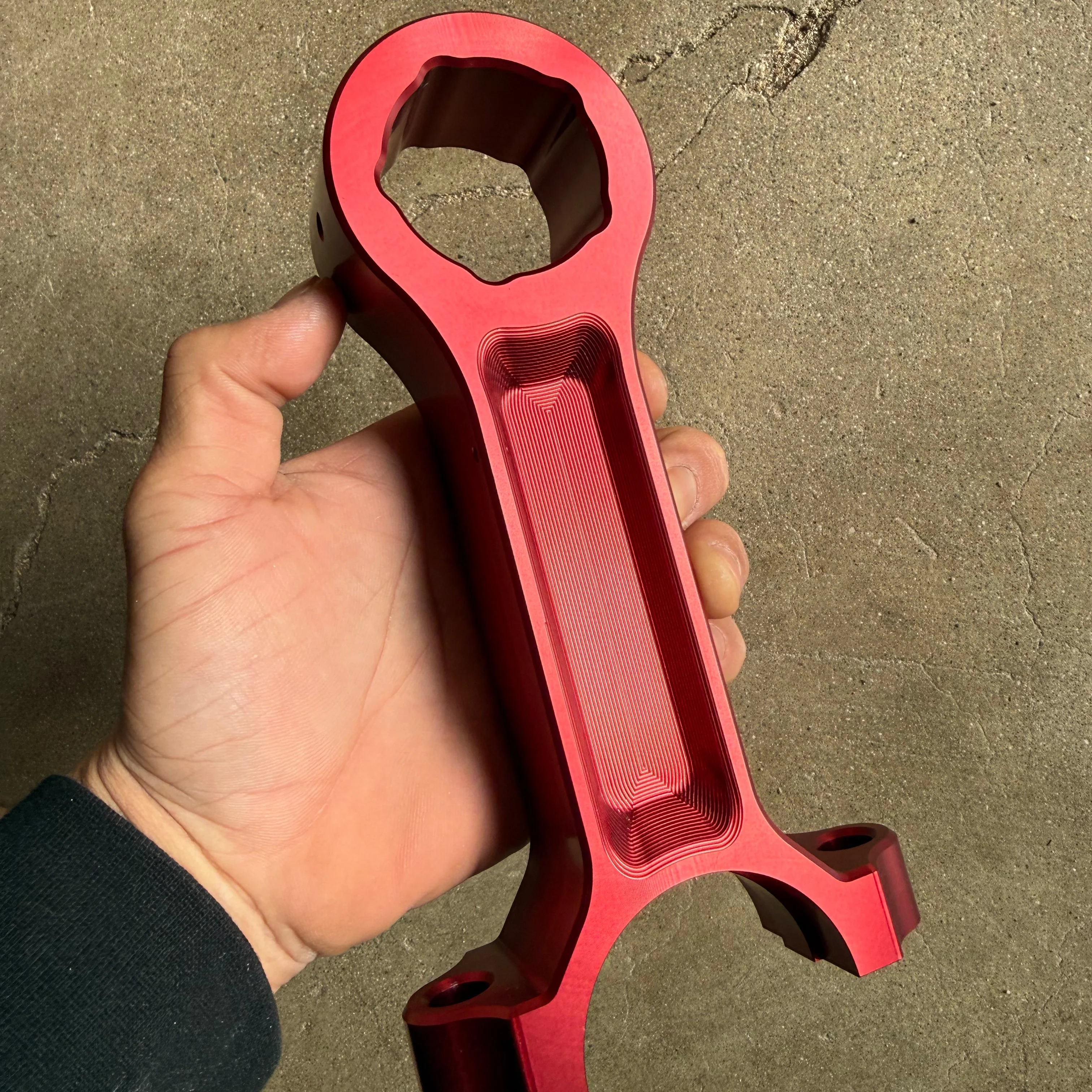

• Multiple Anodized Color Options: Available in hardcoat gray/bronze, red, King Gold, King Blue, and clear anodized finishes.

Fitment

• Toyota 4Runner (2010–2024) with KDSS
• Lexus GX460 with KDSS
• Toyota Prado 150 with KDSS

(Not compatible with non-KDSS models)

Hardware & Specifications

Weight: 2.1 lbs
Dimensions: 8.5" L × 4.5" W × 1.25" thick

Included Hardware:

• (2) M12 × 1.25 × 50mm bolts
• (2) M12 × 1.25 stover locking nuts
• (2) M12 washers (used with certain OEM bushing styles)
• Clear zinc coated hardware

Benefits

• Reduces suspension restriction: Allows smoother KDSS sway bar operation.
• Improves articulation: Helps maximize front suspension travel.
• Reduces stored tension: Minimizes stress created by OEM bushing bind.
• Maintains KDSS functionality: Designed to work within factory KDSS system parameters.
• Built for real use: Designed for off-roaders who actually use their suspension.

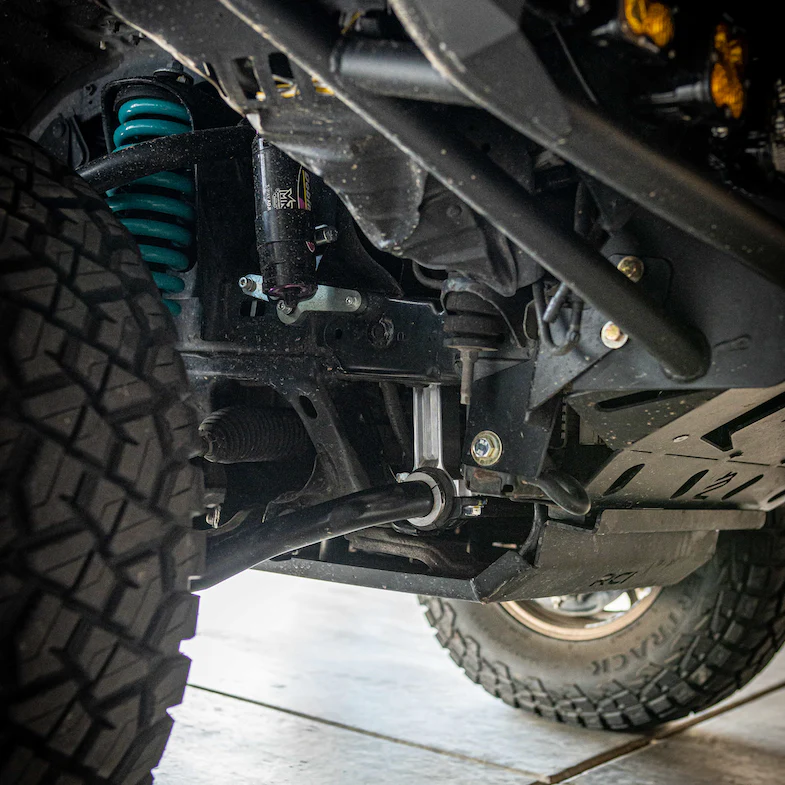

Installation Notes

• Remove front skid plate for easier access
• Support sway bar with hydraulic jack
• Lower sway bar slightly (no more than 3/8")

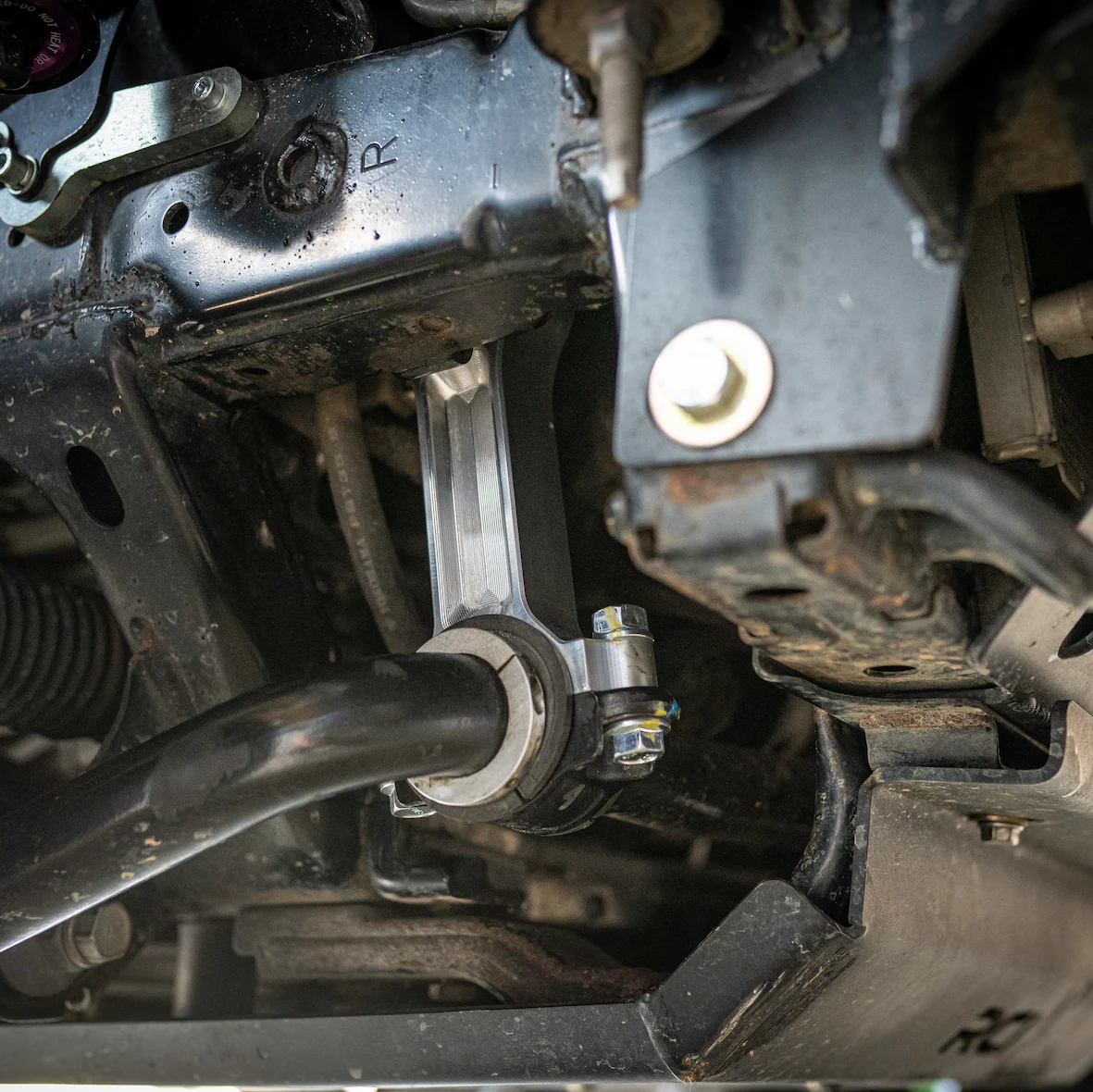

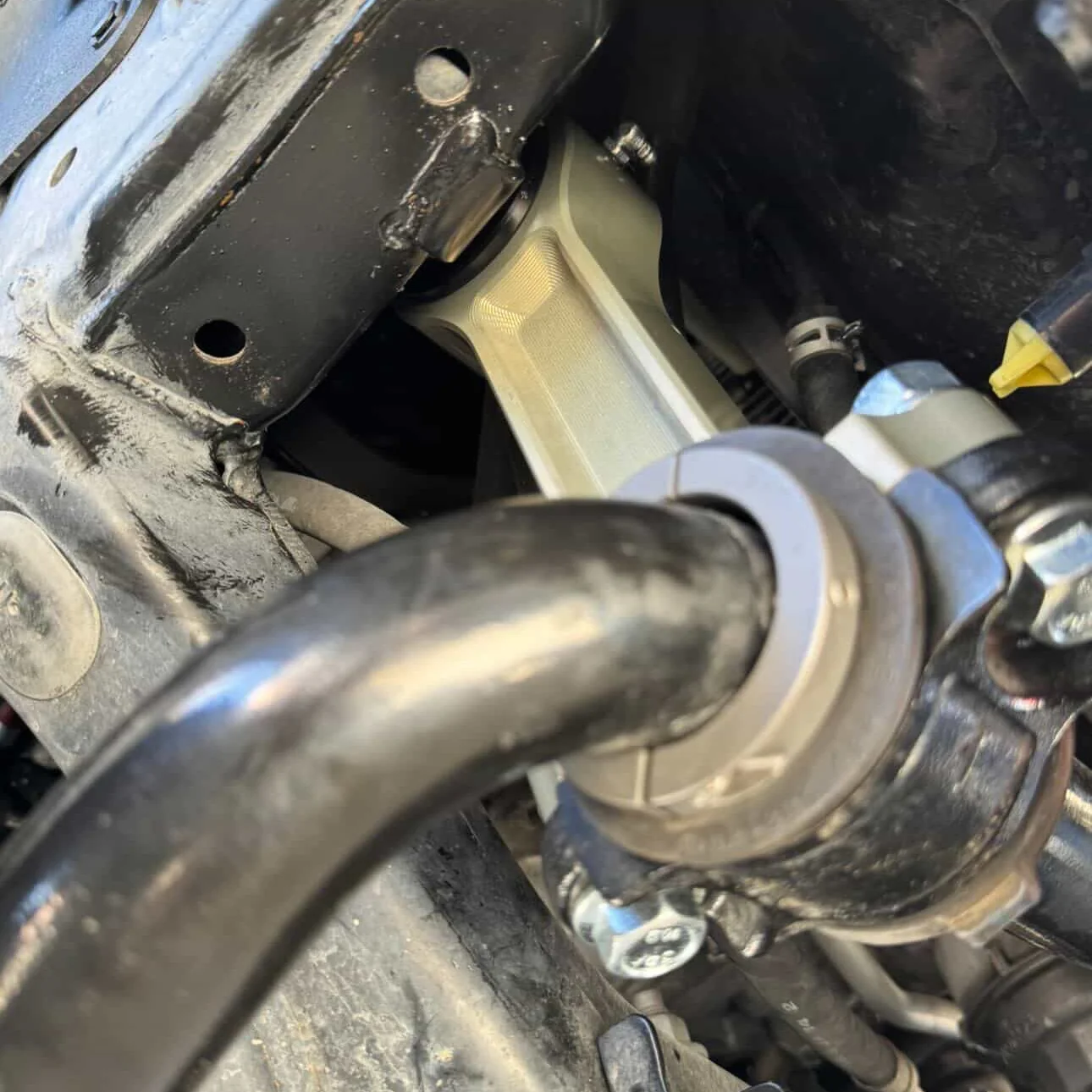

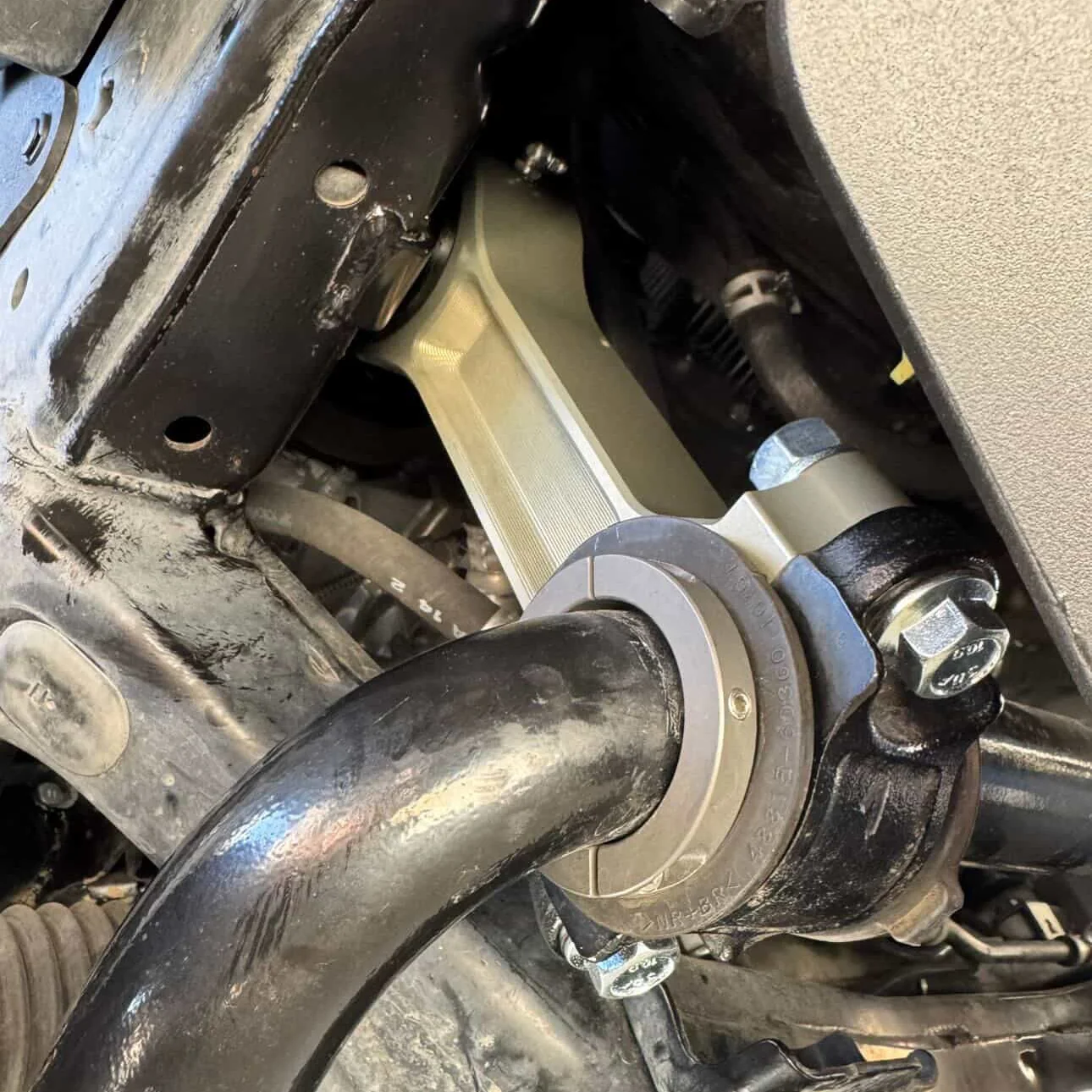

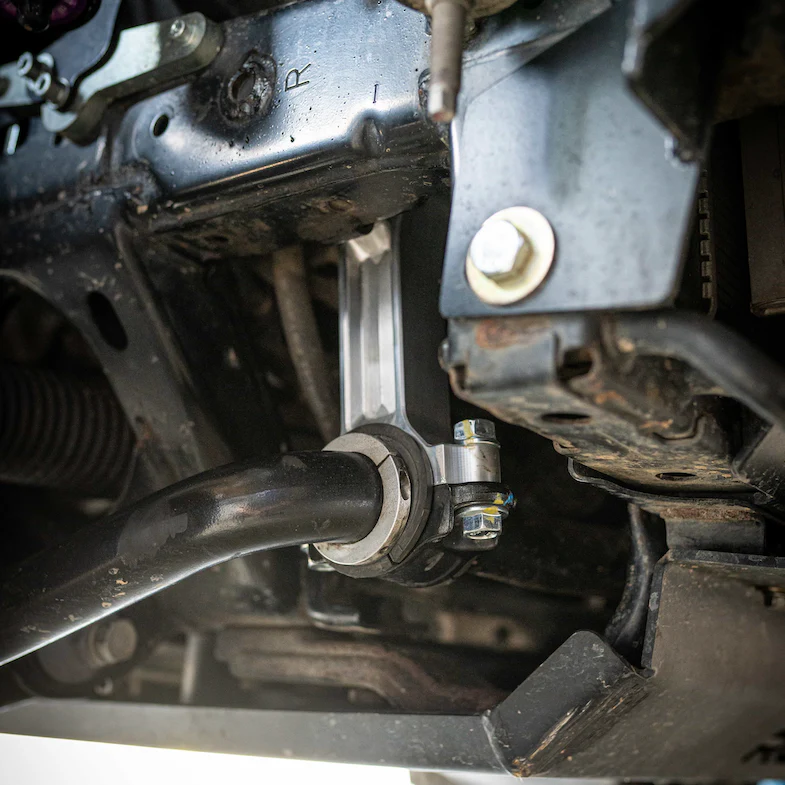

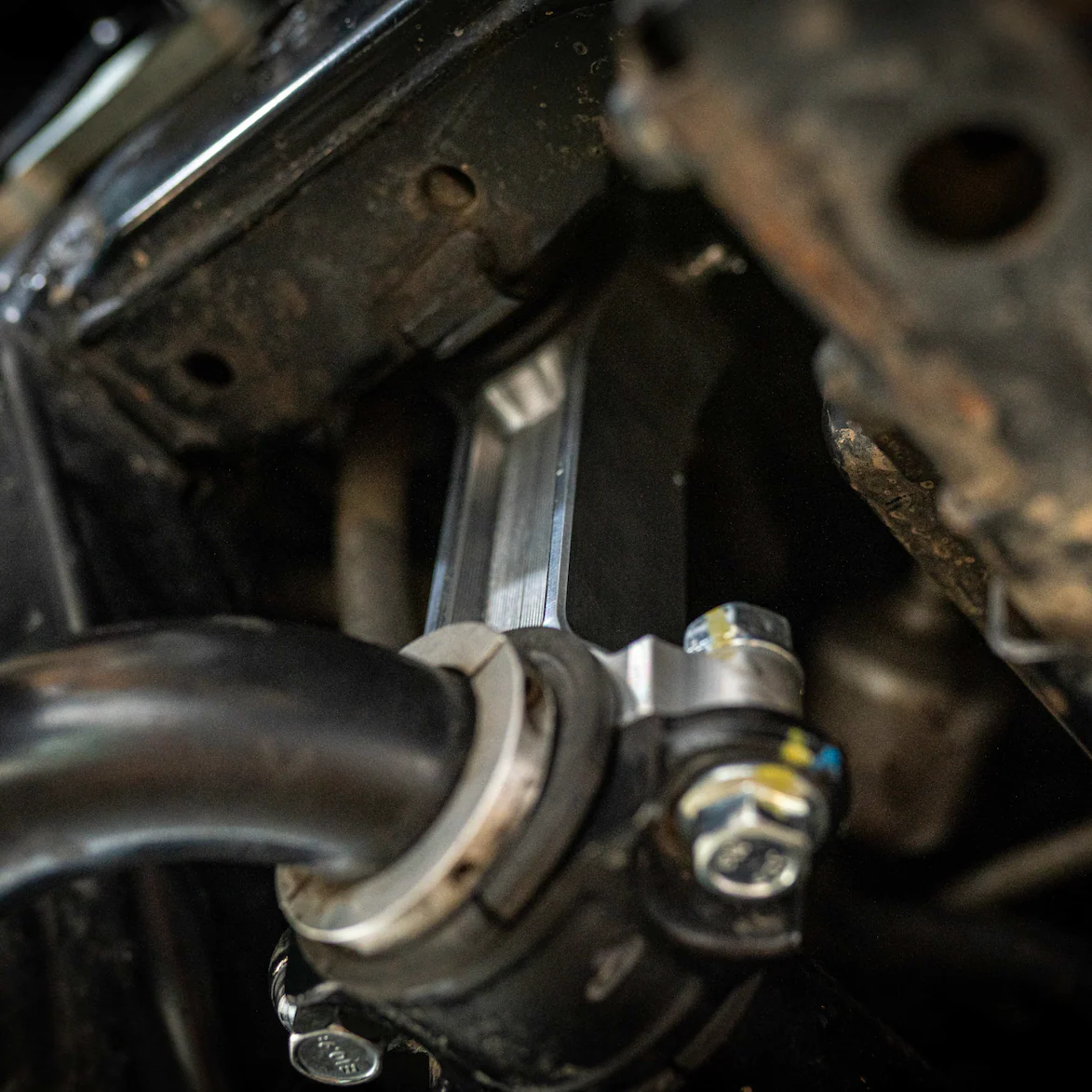

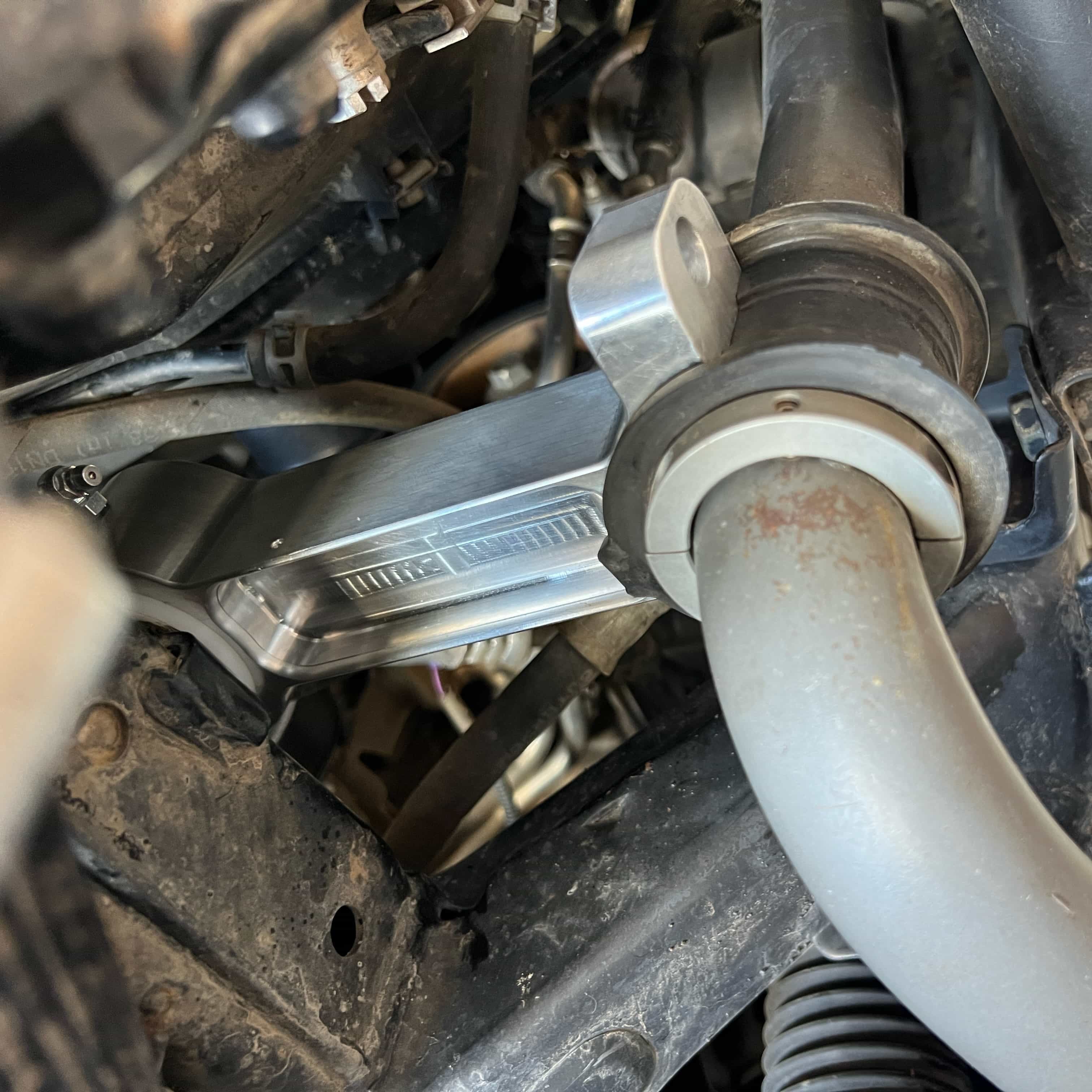

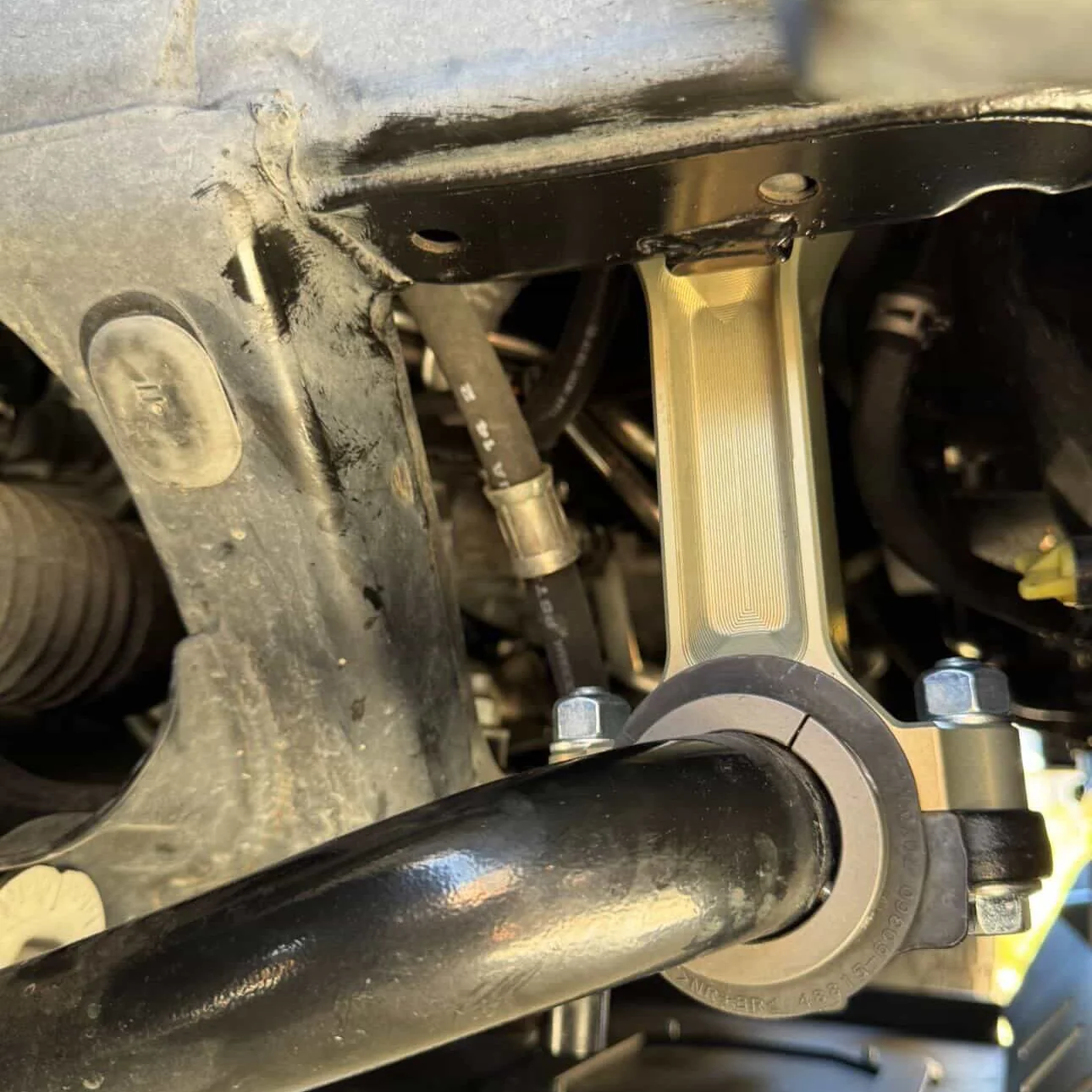

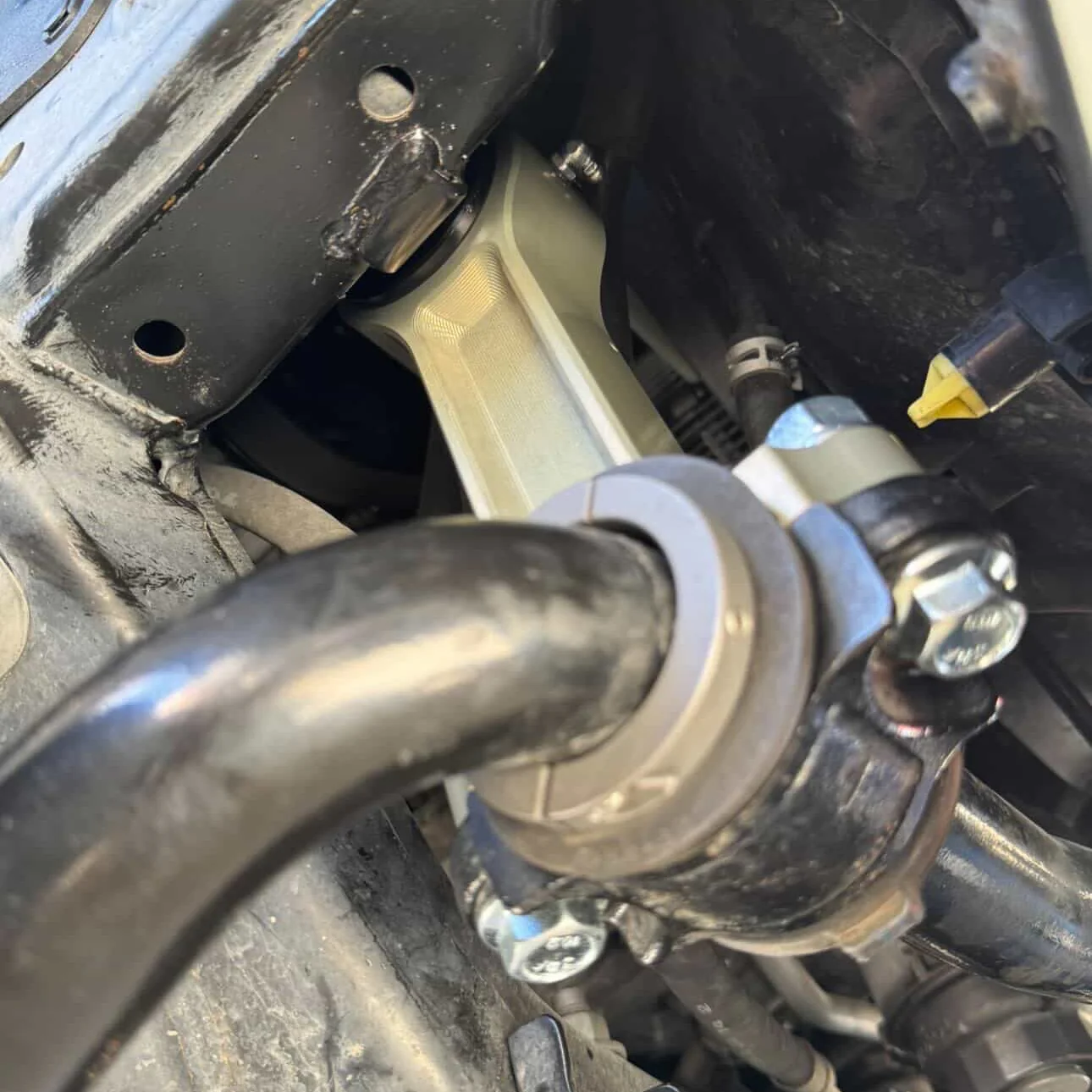

• Install billet link with zerk fitting facing forward
• Pre-grease bushing and sleeve before final install

Torque Specs:

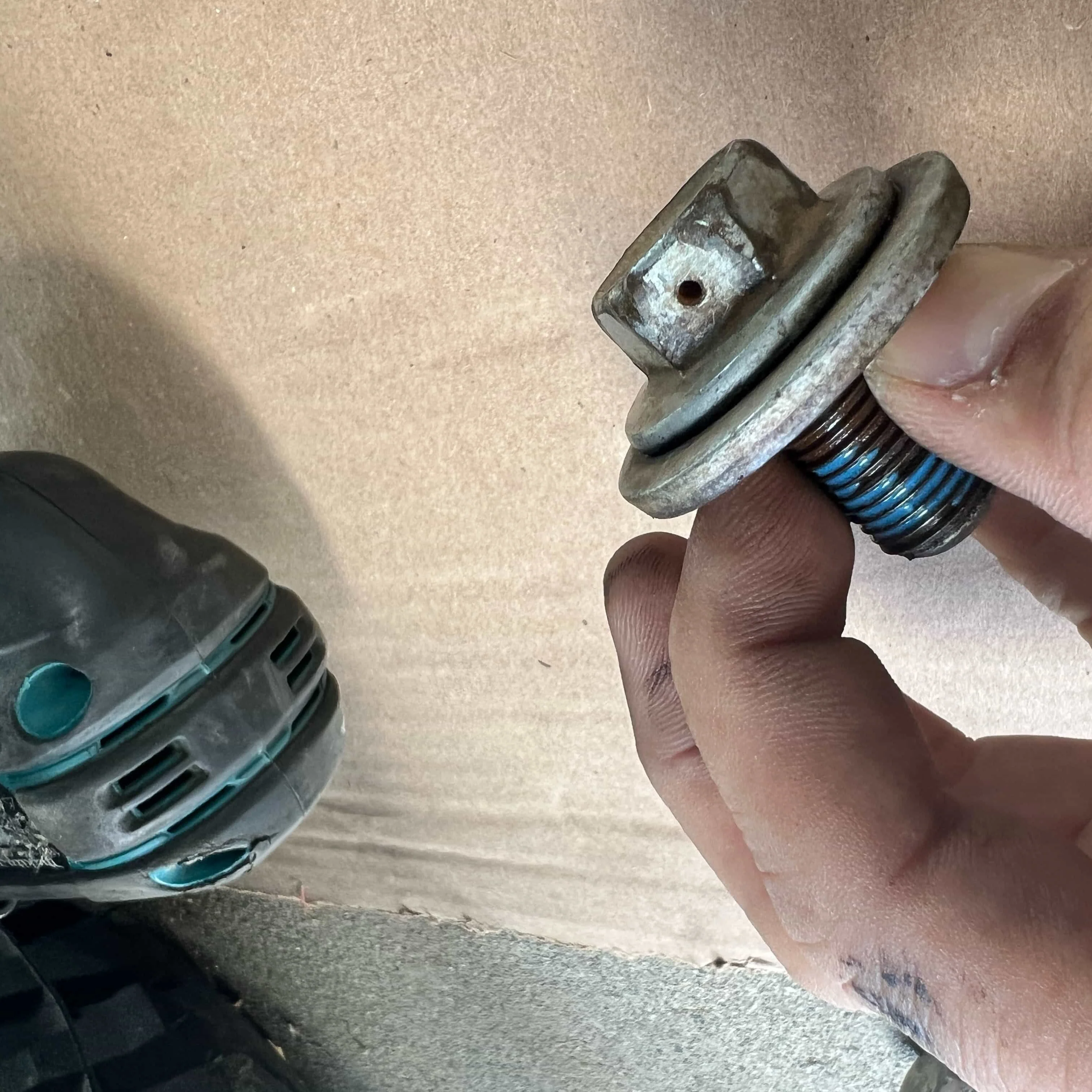

• Main frame bolt: 110 ft-lbs (Loctite or safety wire recommended)
• Vertical sway bar bolts: 85 ft-lbs (locking nuts included)

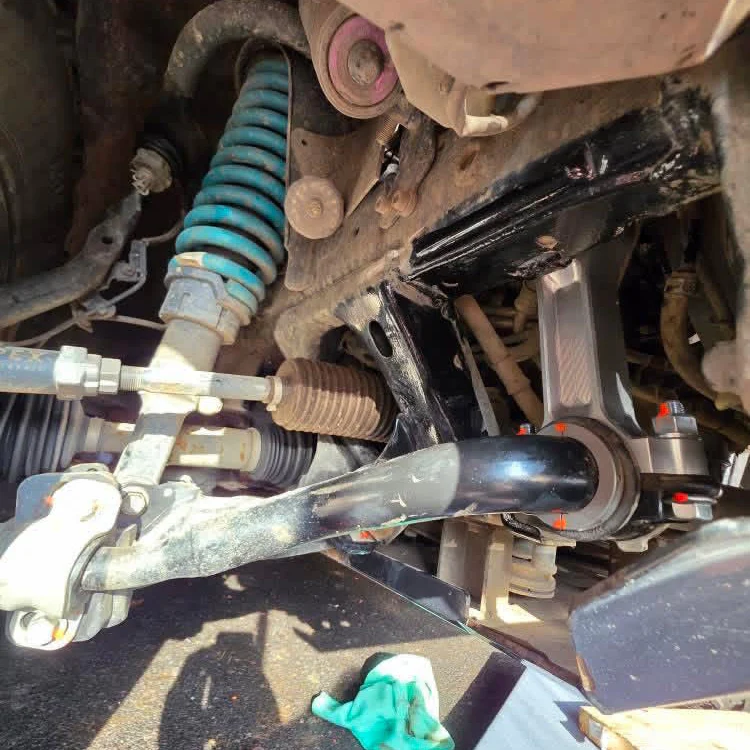

Tip: Mark hardware after torquing for quick visual inspection after trail use.

Do You Need This Upgrade?

Running your vehicle off-road regularly? Yes.
Running performance suspension? Yes.
Want maximum articulation? Yes.
Daily driver with minimal suspension cycling? Probably not—and that’s perfectly fine.

Summary

The Dr KDSS Front Billet Link is a purpose-built upgrade for KDSS-equipped 4Runners and GX models looking to improve suspension performance and eliminate factory limitations. If you're serious about how your suspension performs on the trail, this billet link provides the durability, serviceability, and performance your build deserves.
