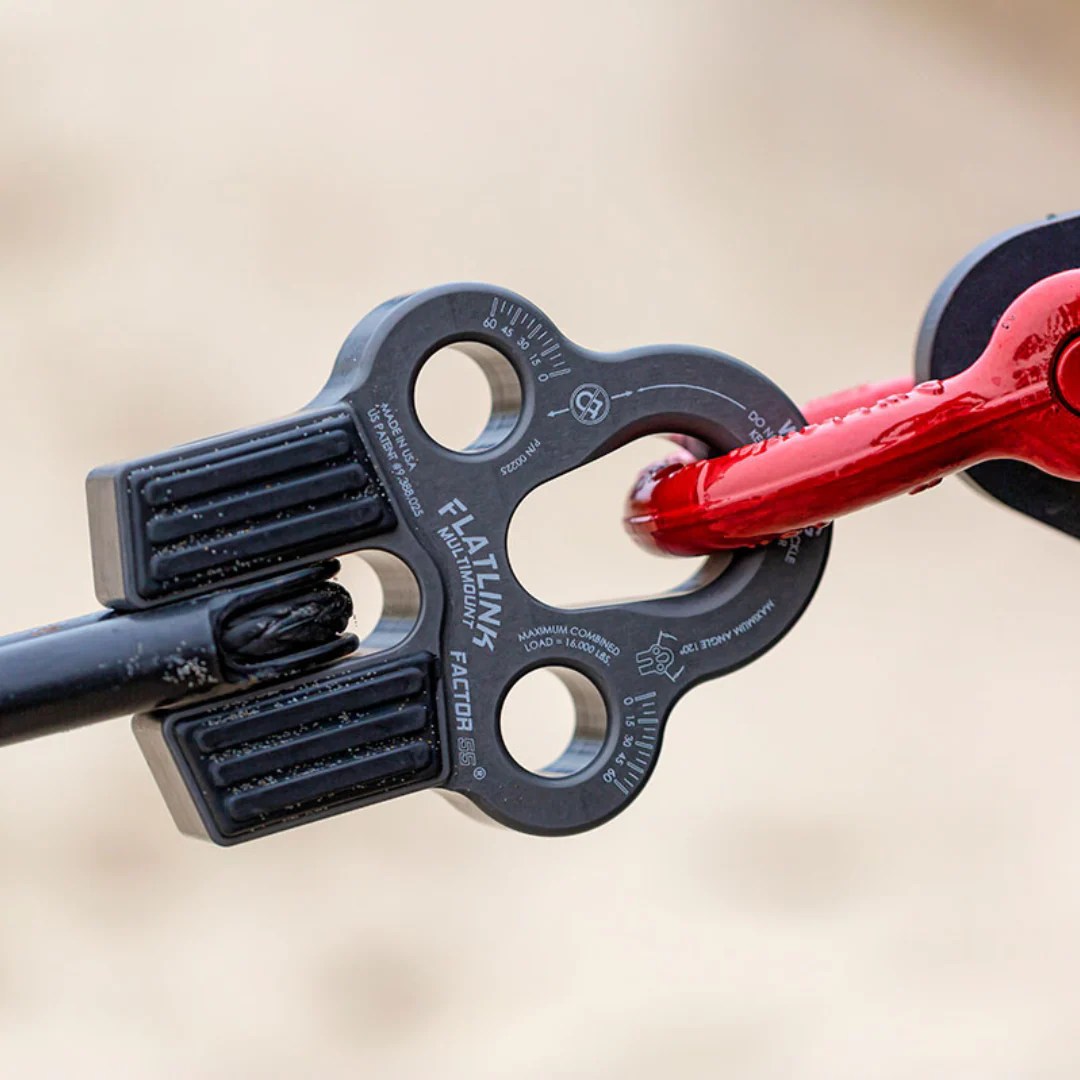

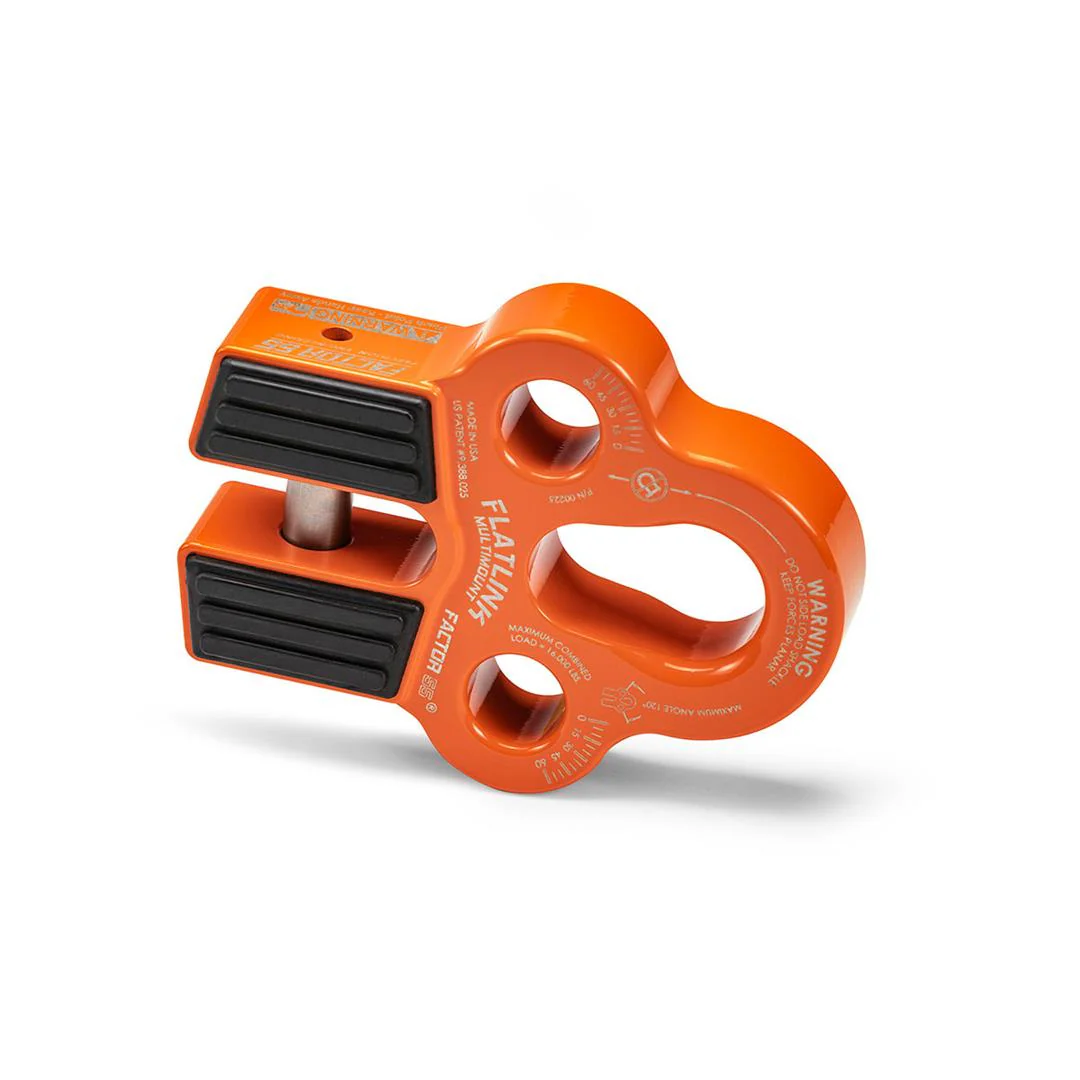

Factor 55 FlatLink MultiMount
The Flatlink Multimount is designed for difficult off-camber vehicle recovery scenarios where two different winch pull directions are often necessary. Two additional shackle pin mounting holes provide secure shackle attach points for multiple winch pull directions, while the center hole provides a secure conventional center pull shackle mount point. This arrangement eliminates any shackle side loading forces at the MultiMount interface (shackles are free to rotate and align to the load directions.Â
Features
- Multiple shackle interface: Suitable for bridle and off-camber towing.
- Lightweight: Precision CNC machined from 6000 series aluminum.
- No splicing required: Features a titanium double shear pin design.
- Versatile: Compatible with both steel cables and synthetic winch ropes.
- Protective: Integrated EPDM rubber pads for fairlead protection.
- Foldable: 1.75” thick, fits all fairlead license plate mounting brackets.
- Universal fit: Oval opening connects to common ¾” screw pin shackles and pin ends of 7/8” and 1” screw pin shackles.
- High-strength pin: 5/8” diameter 6AI-4V titanium double shear pin.
- Capacity: Accommodates rope and cable diameters up to 3/8’’.
- Compatibility: Fits over most OEM tow hooks.
- Compact: 2” thick when folded flat.
- High load capacity: Max load of 16,000 lbs., ultimate strength of 40,000 lbs.
- Lightweight: Weighs only 32 oz.
- Origin: MADE IN USA.
Applications
- Perfect for those who value functionality, safety, and versatility in recovery situations. The FlatLink MultiMount is compatible with synthetic winch lines and steel cables, offering maximum adaptability for professional and recreational use.
Specifications
- Material: 6000-series billet aluminum
- Working Load Limit: 16,000 lbs
- Ultimate Breaking Strength: 40,000 lbs
- Weight: 32 oz
- Shackle Mount Hole Size: Accepts 3/4-inch screw pin shacklesÂ
Upgrade to Professional-Grade Recovery Gear
Experience the superior safety and reliability of the Factor 55 FlatLink MultiMount. Whether you're navigating rugged terrain or performing high-stakes recoveries, this innovative tool is designed to meet the demands of true recovery experts.
Original: $286.25
-65%$286.25
$100.19Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Flatlink Multimount is designed for difficult off-camber vehicle recovery scenarios where two different winch pull directions are often necessary. Two additional shackle pin mounting holes provide secure shackle attach points for multiple winch pull directions, while the center hole provides a secure conventional center pull shackle mount point. This arrangement eliminates any shackle side loading forces at the MultiMount interface (shackles are free to rotate and align to the load directions.Â
Features
- Multiple shackle interface: Suitable for bridle and off-camber towing.
- Lightweight: Precision CNC machined from 6000 series aluminum.
- No splicing required: Features a titanium double shear pin design.
- Versatile: Compatible with both steel cables and synthetic winch ropes.
- Protective: Integrated EPDM rubber pads for fairlead protection.
- Foldable: 1.75” thick, fits all fairlead license plate mounting brackets.
- Universal fit: Oval opening connects to common ¾” screw pin shackles and pin ends of 7/8” and 1” screw pin shackles.
- High-strength pin: 5/8” diameter 6AI-4V titanium double shear pin.
- Capacity: Accommodates rope and cable diameters up to 3/8’’.
- Compatibility: Fits over most OEM tow hooks.
- Compact: 2” thick when folded flat.
- High load capacity: Max load of 16,000 lbs., ultimate strength of 40,000 lbs.
- Lightweight: Weighs only 32 oz.
- Origin: MADE IN USA.
Applications
- Perfect for those who value functionality, safety, and versatility in recovery situations. The FlatLink MultiMount is compatible with synthetic winch lines and steel cables, offering maximum adaptability for professional and recreational use.
Specifications
- Material: 6000-series billet aluminum
- Working Load Limit: 16,000 lbs
- Ultimate Breaking Strength: 40,000 lbs
- Weight: 32 oz
- Shackle Mount Hole Size: Accepts 3/4-inch screw pin shacklesÂ
Upgrade to Professional-Grade Recovery Gear
Experience the superior safety and reliability of the Factor 55 FlatLink MultiMount. Whether you're navigating rugged terrain or performing high-stakes recoveries, this innovative tool is designed to meet the demands of true recovery experts.
