Dr KDSS B.O.T.C.K Bolt-On Trackbar Correction kit for Sequoia (2023-2026)

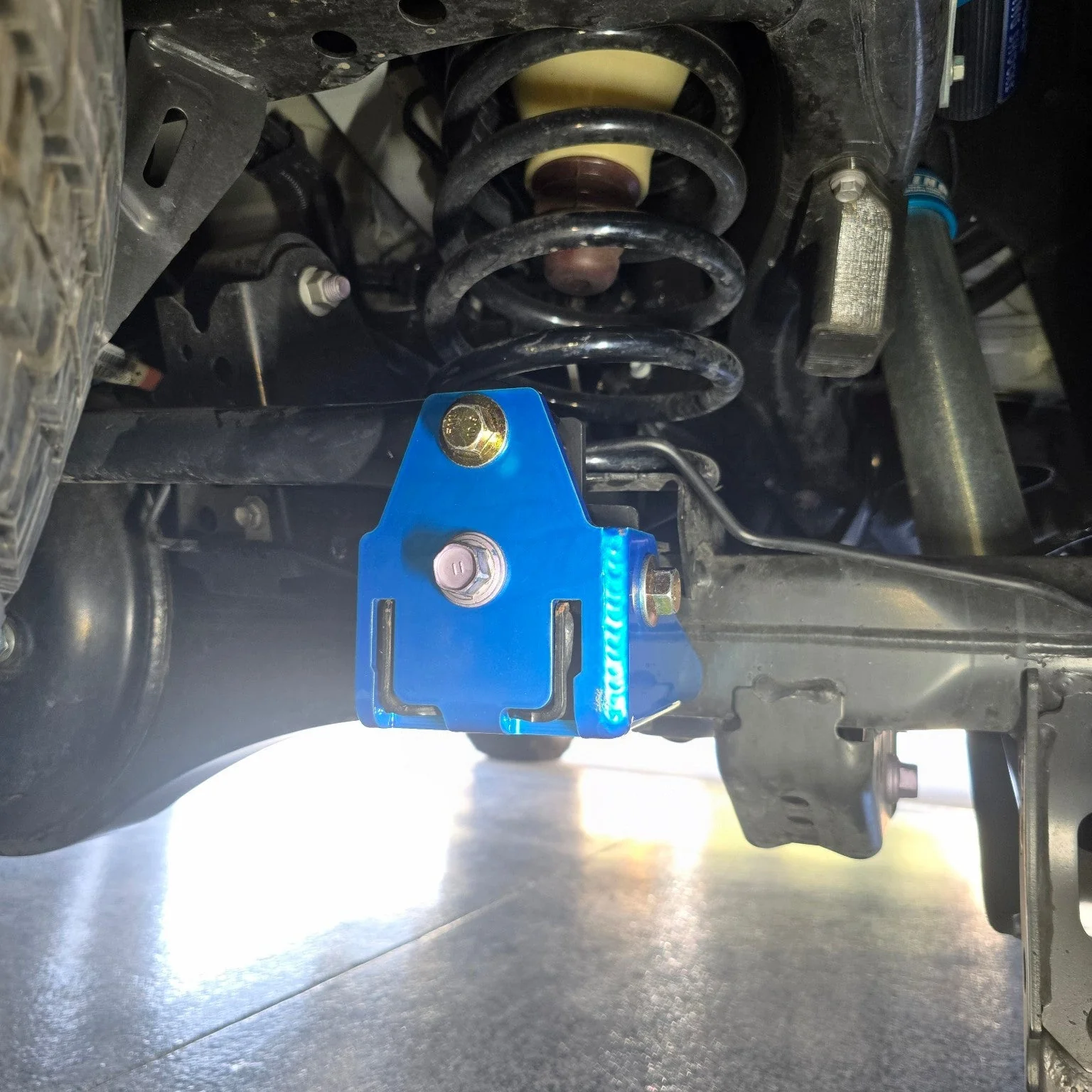

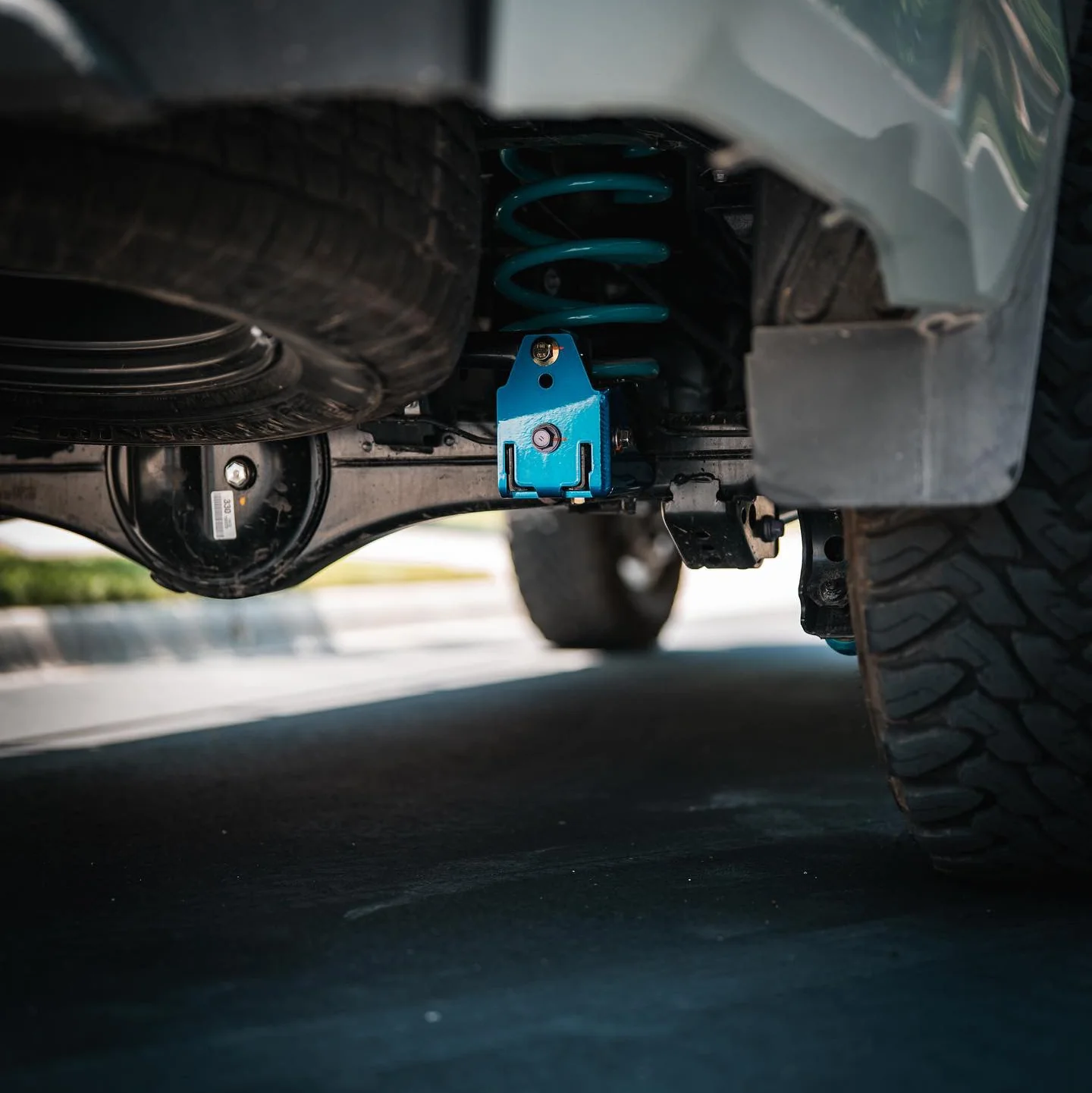

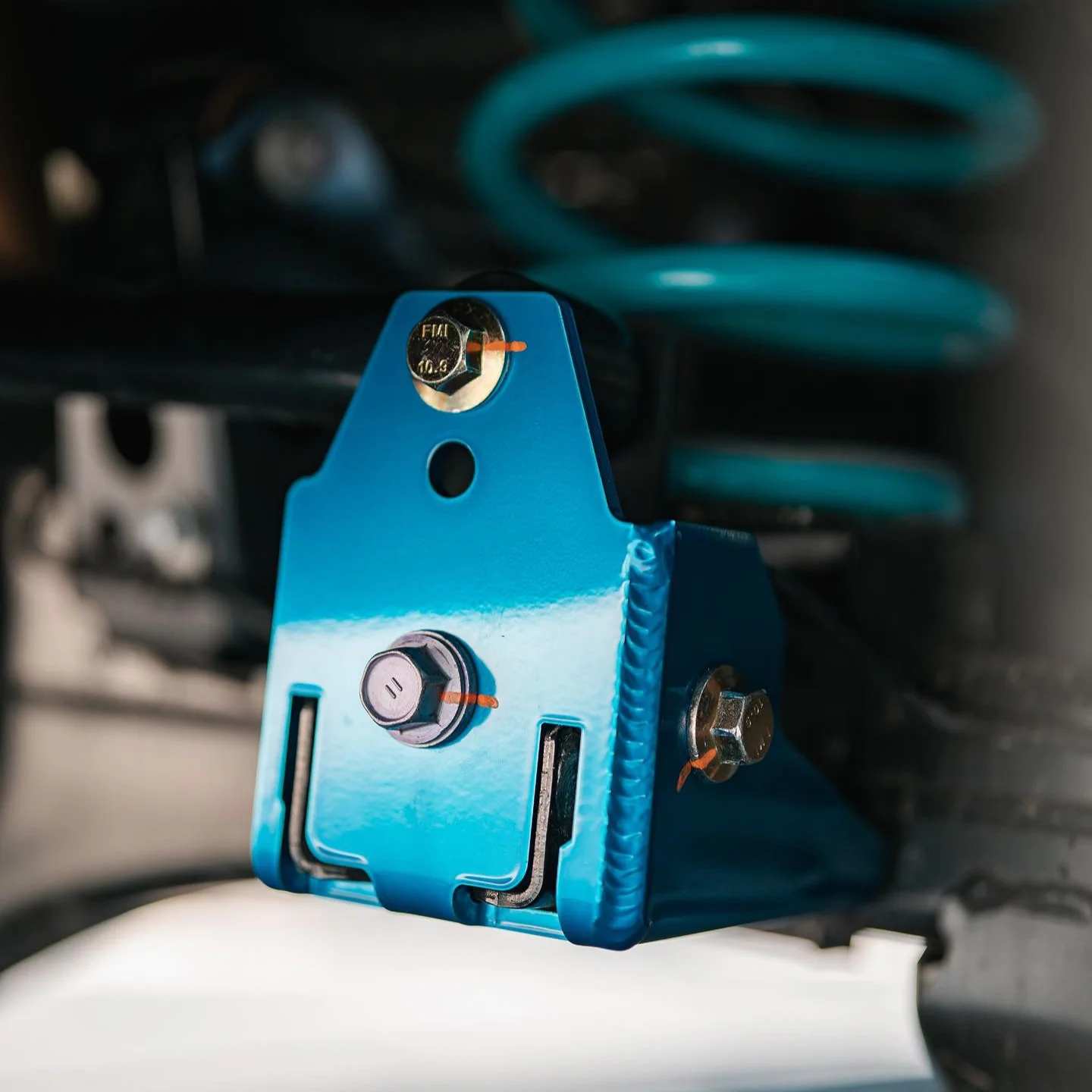

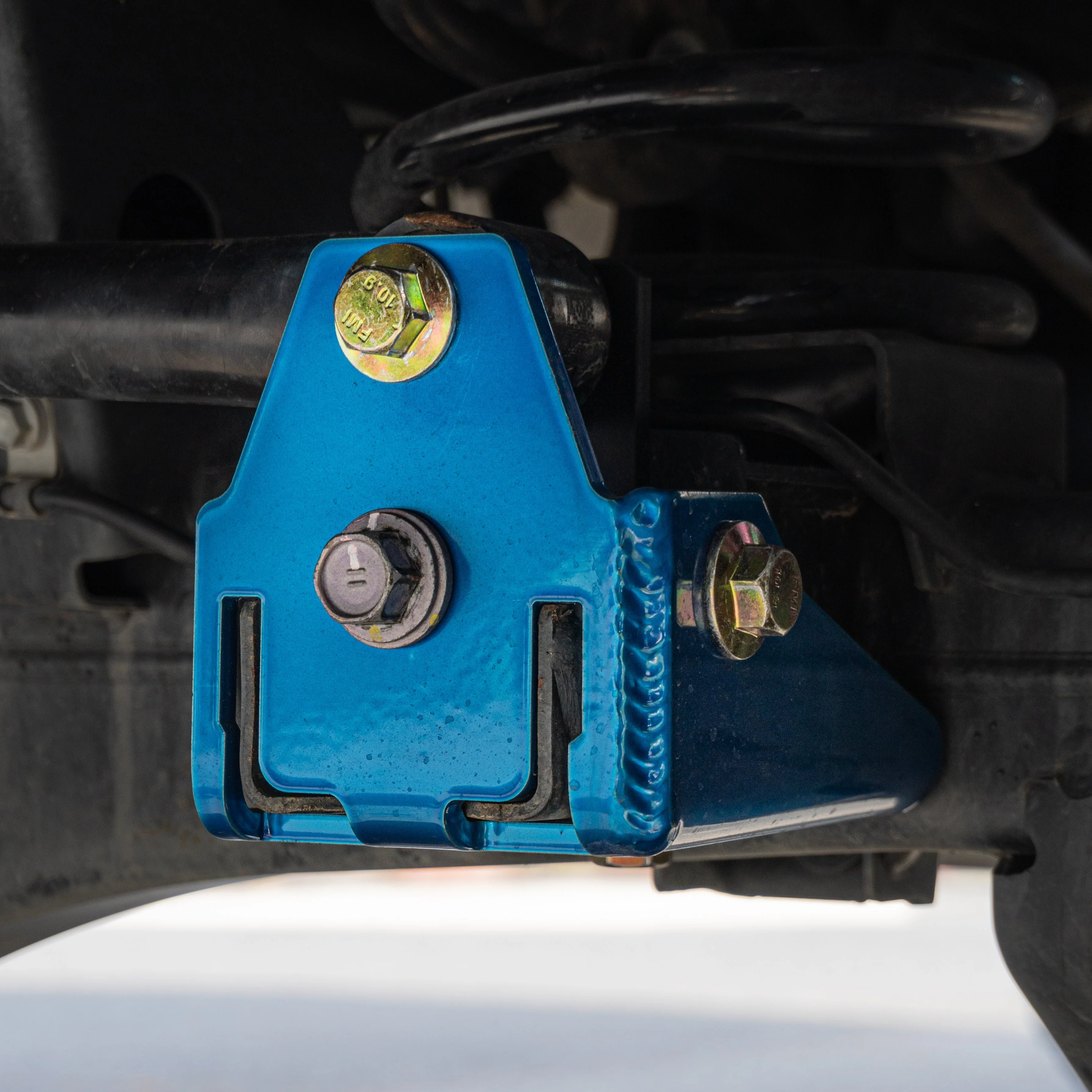

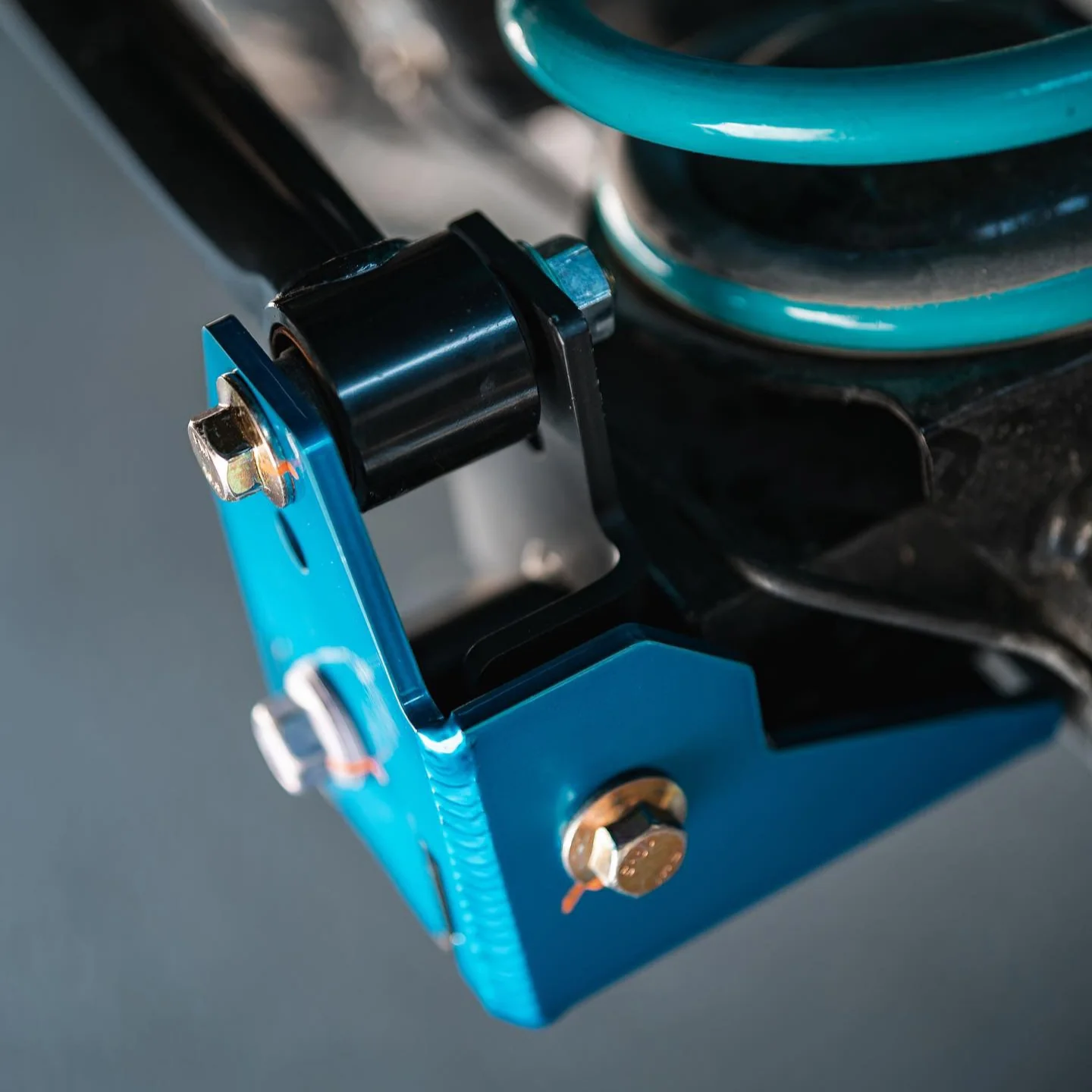

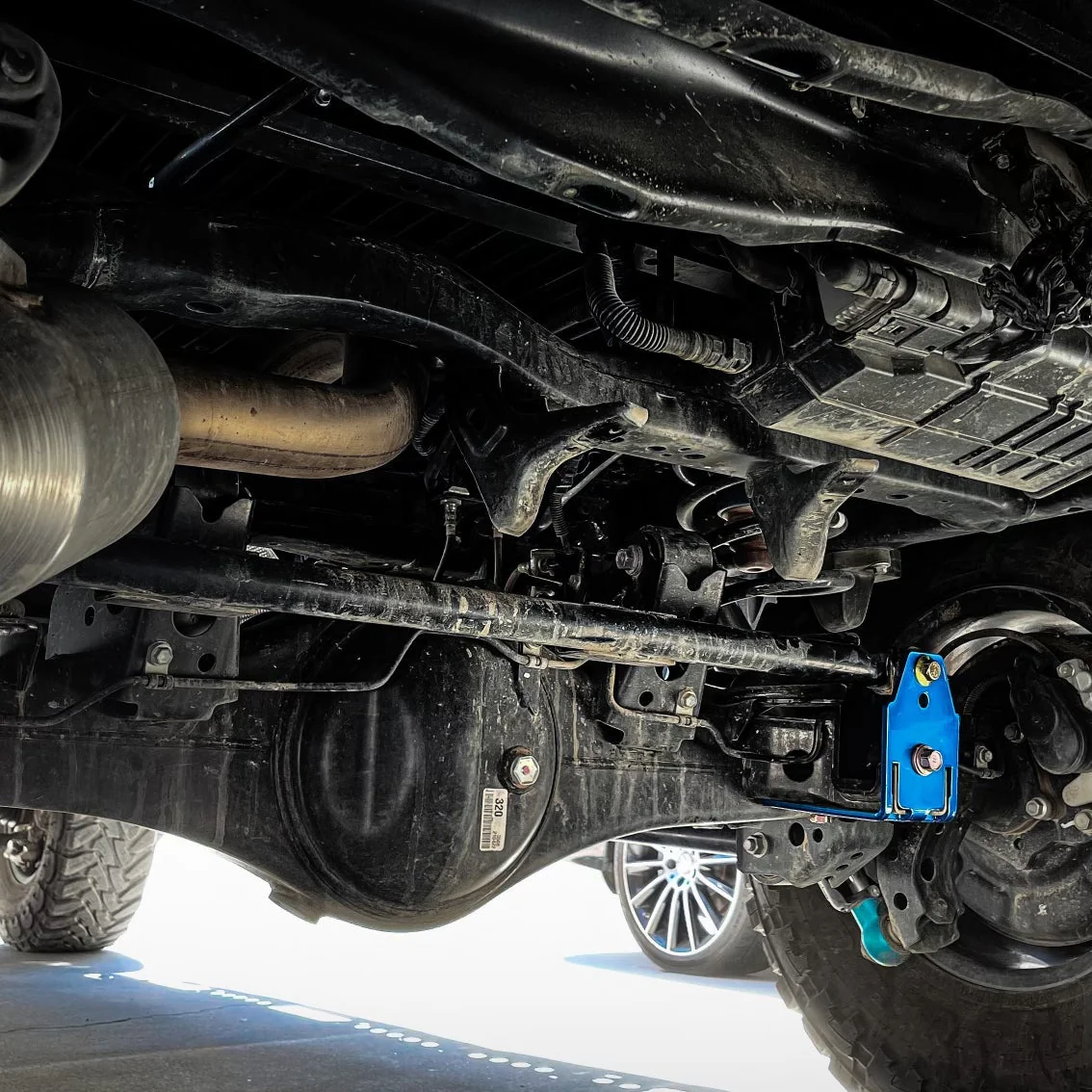

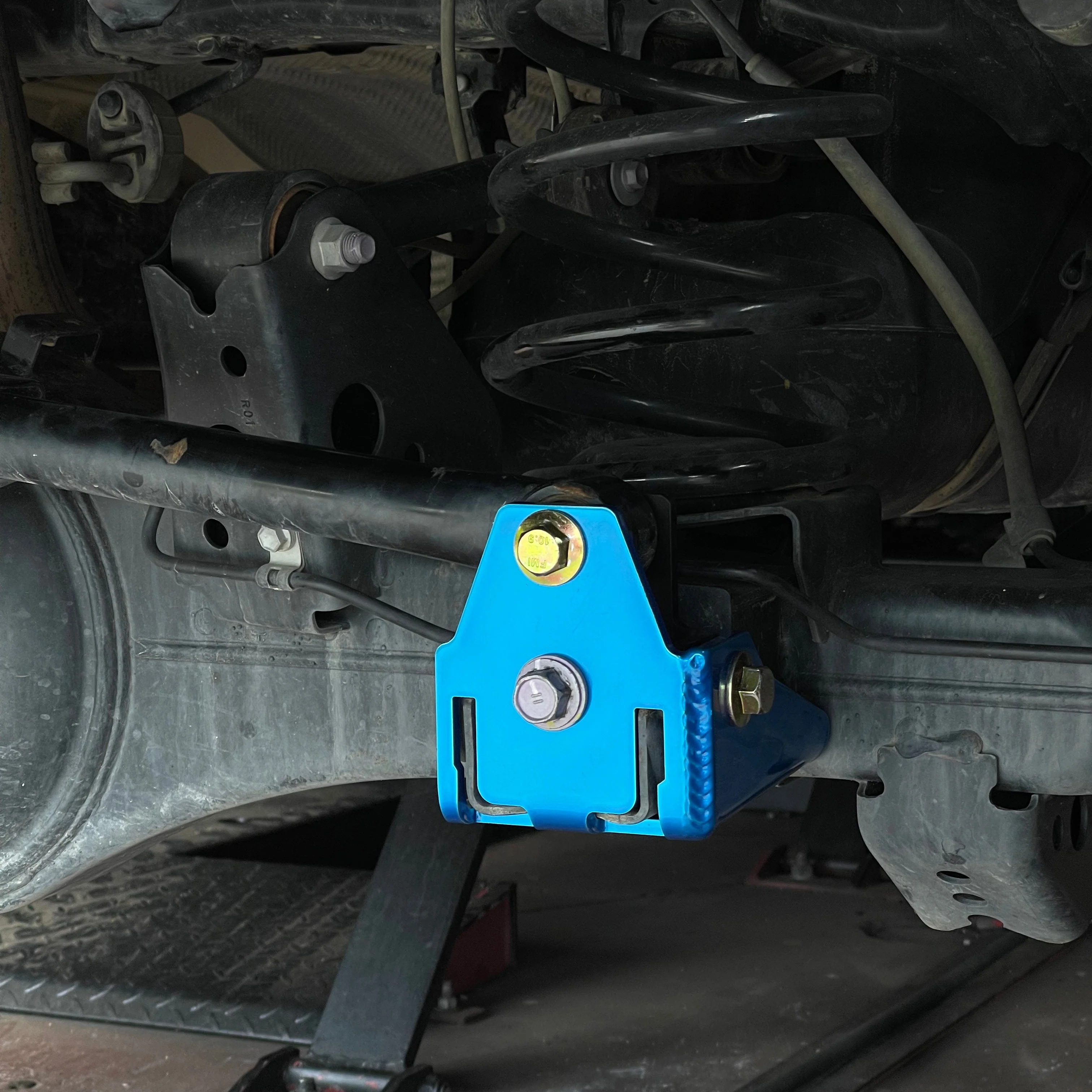

Restore proper rear suspension geometry on your lifted Sequoia with the Dr KDSS B.O.T.C.K. (Bolt-On Trackbar Correction Kit). This bolt-on solution corrects the steep track bar angle caused by suspension lifts, helping eliminate unwanted rear axle movement and restoring stable, predictable handling both on the road and off the trail.
By raising the track bar pivot point, this kit brings your panhard bar back closer to level, reducing side-to-side axle movement and improving overall suspension behavior.
Features
- Corrects Track Bar Geometry: Raises the mounting point to flatten the panhard bar angle after lifting your vehicle.
- Reduces Rear Axle Shift: Helps prevent the side-to-side movement commonly experienced after installing a lift kit.
- Improves Stability & Handling: Restores more predictable driving characteristics and better road manners.
- Bolt-On Installation: No welding, drilling, or fabrication required.
- Heavy-Duty Bracket Construction: Engineered to distribute loads across factory mounting points rather than relying on weld strength.
- KDSS & Non-KDSS Compatible: Works regardless of suspension configuration.
- Future Lift Flexibility: Standard version allows adjustment if you increase lift height later.
Fitment
- Toyota Sequoia (2023β2026)
- (Potential LC300 compatibility pending confirmation)
Works with KDSS and non-KDSS models.
How to Choose the Correct Version
To determine whether you need the Shorty or Standard version:
- Park on level ground
- Measure from the ground to the frame-side track bar bolt center
- Measure from the ground to the axle-side track bar bolt center
- Subtract the difference:
1.5"β2.99" difference β Shorty Version
3"+ difference β Standard Version
Tip: If you plan future suspension upgrades, choose the Standard Version for additional adjustment options.

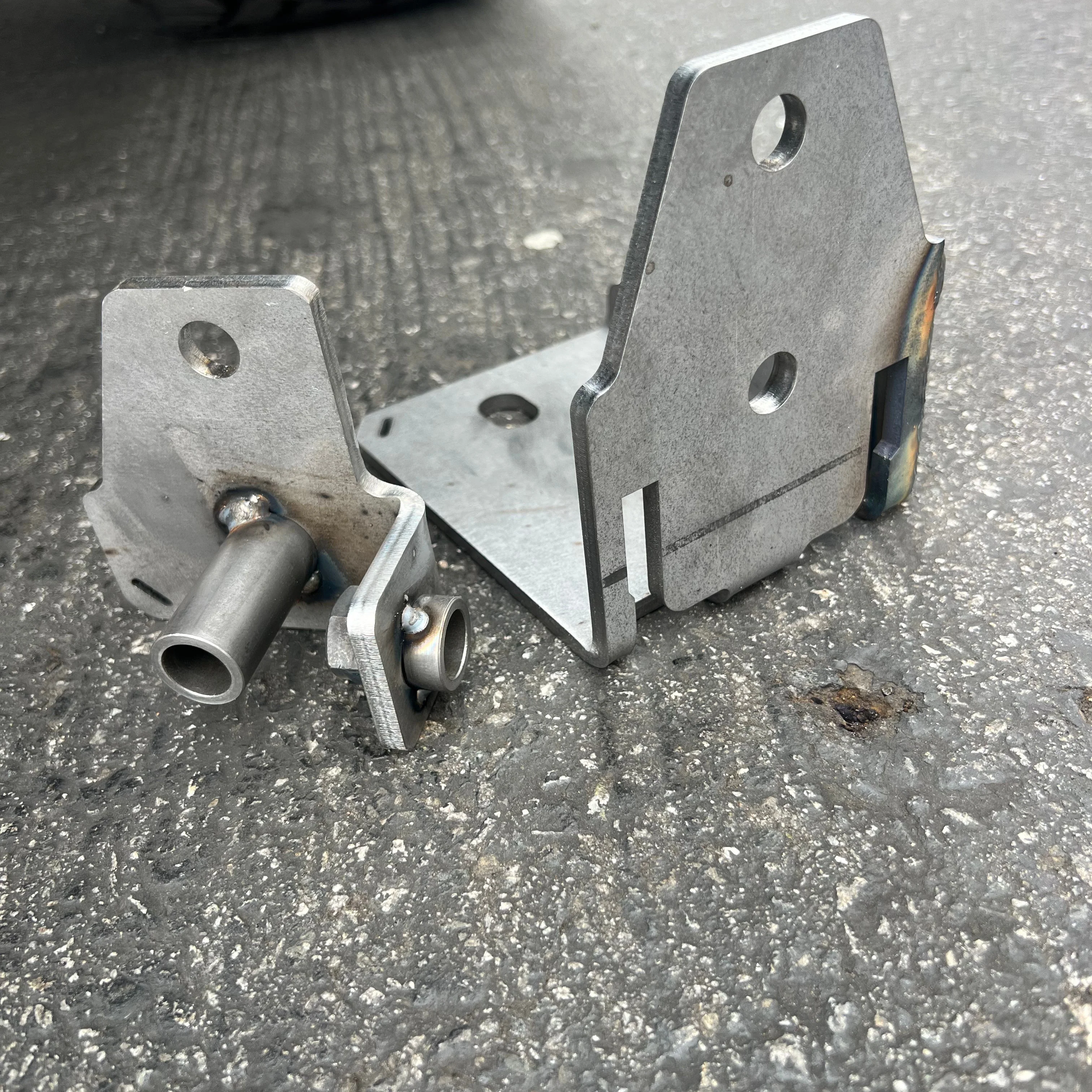

Whatβs Included

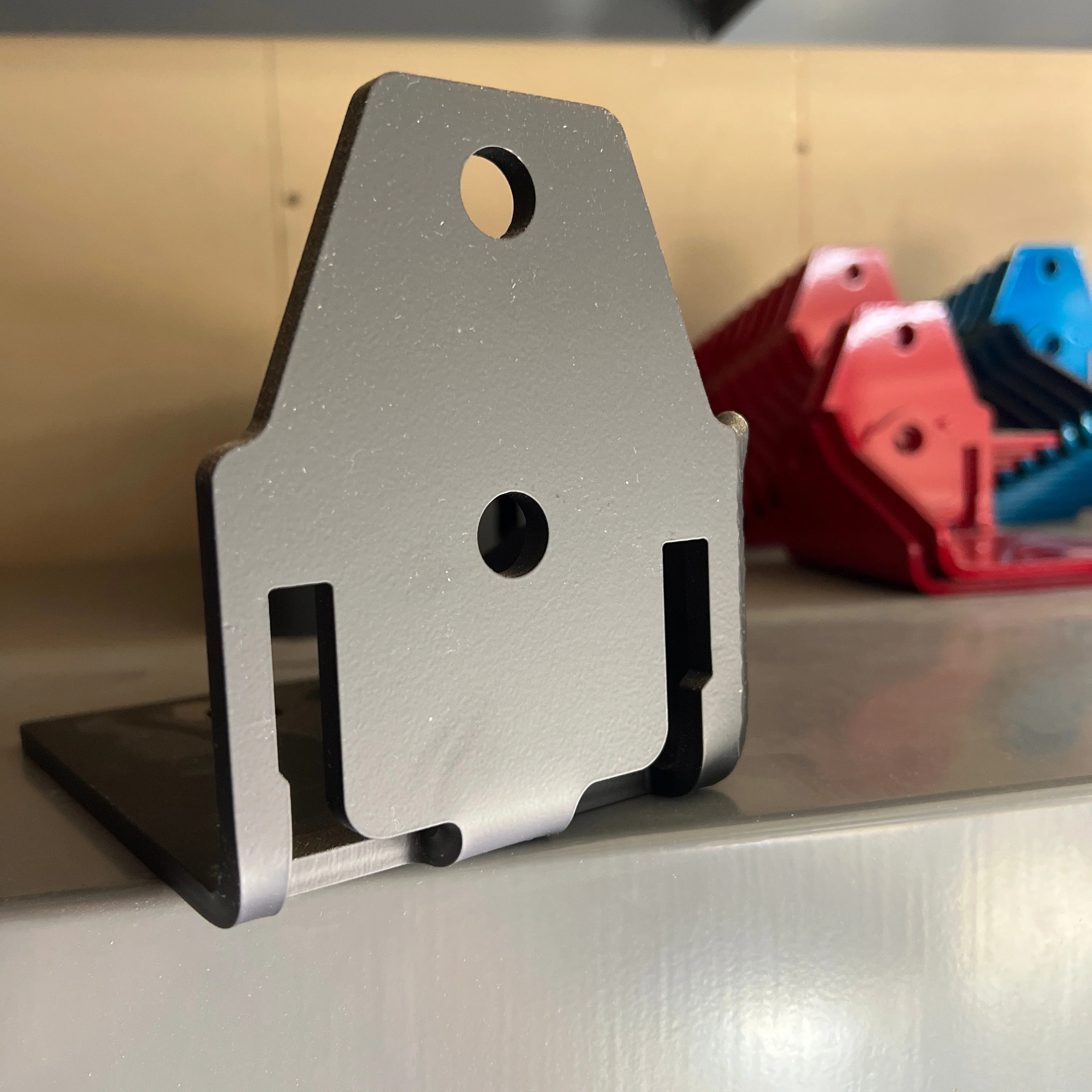

- Front bracket
- Rear bracket
- (1) M14 Γ 1.5 Γ 75mm flange head bolt
- (1) M14 Γ 1.5 Γ 80mm flange head bolt
- (2) M14 Γ 1.5 Γ 35mm flange head bolts
- (1) M14 hex nut
- Flag nut
- Zinc-coated hardware
Benefits
Restores proper suspension travel: Helps the axle move vertically instead of shifting laterally.
Improves driving confidence: Reduces rear-end instability after lifting.
Stronger than weld-on options: Load is distributed across factory mounting points.
Trail-ready durability: Designed for real off-road use, not just appearance upgrades.
Simple install: Complete bolt-on solution.
Installation Notes
- Direct bolt-on installation
- No welding or drilling required
- Use blue Loctite (or a small amount of red if preferred)
Torque Specs:
- M14 hardware: 105 ft-lbs
Summary
The Dr KDSS B.O.T.C.K. Track Bar Correction Kit for Sequoia (2023β2026) is an essential upgrade for lifted vehicles looking to restore proper suspension geometry and driving stability. If you want your Sequoia to track straight, handle better, and perform properly after a lift, this bolt-on correction kit is a simple and effective solution.
