Dr KDSS B.O.T.C.K Bolt-On Trackbar Correction kit for 4Runner (1996-2002) & Prado 90

Fix rear axle shift and restore confident handling after lifting your rig with the Dr. KDSS B.O.T.C.K. (Bolt-On Trackbar Correction Kit) for the 1996-2002 Toyota 4Runner and Toyota Prado 90. Designed specifically for lifted solid-axle setups, this heavy-duty correction bracket repositions your panhard bar to a more natural angle, improving stability both on the road and on the trail—without requiring welding.

When lifting your vehicle, the track bar angle becomes steeper, which can cause unwanted side-to-side axle movement and unpredictable handling. The B.O.T.C.K. kit corrects this geometry by raising the mounting point to bring the track bar closer to level, restoring proper suspension movement and improving overall control.

Features

• Bolt-On Track Bar Geometry Correction: Repositions the panhard bar mounting point to reduce lateral axle movement caused by suspension lifts.
• Improved Stability After Lifting: Helps restore predictable handling and reduces the unstable “rear steer” feeling common with lifted setups.
• No Welding Required: True bolt-on design makes installation accessible without needing fabrication or welding.
• Strength-Focused Design: Wrap-around bracket design distributes load across the OEM mount rather than concentrating stress on weld points.
• Designed for Lifted Vehicles: Ideal for 4Runner builds with approximately 1.5"–3"+ of lift.
• Dual Mounting Positions: Multiple mounting holes allow you to dial in geometry based on lift height:
  • 1.5"–2.99" lift: Use lower mounting hole
  • 3"+ lift: Use upper mounting hole
• Premium Powder Coat Finish: Available in multiple color options with durable powder coating for corrosion resistance and long-term durability.
• Complete Hardware Kit Included: Comes with required mounting hardware for installation.

Installation Notes

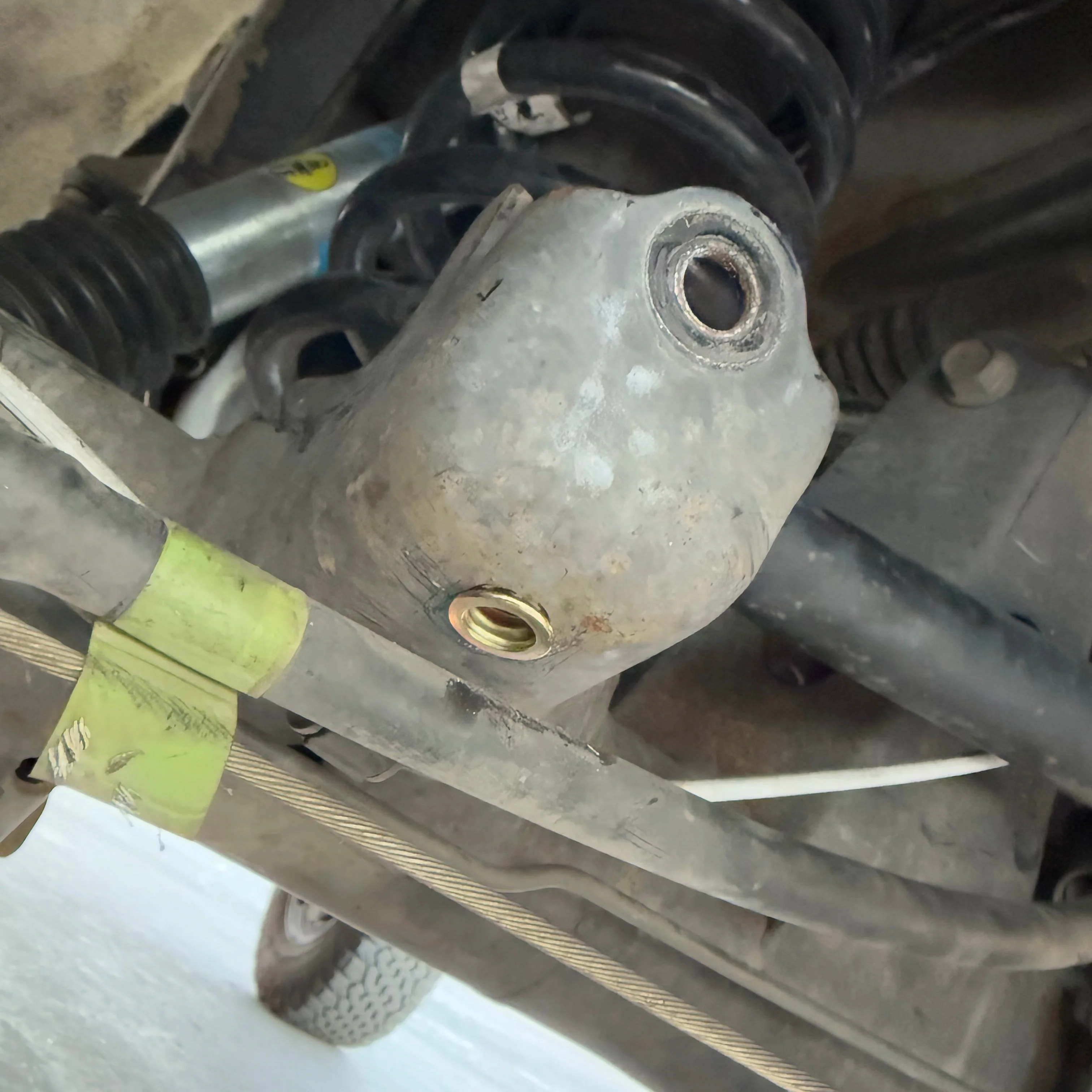

• Requires drilling one mounting hole
• Rivet nut tool recommended for installation
• Updated torque spec: 105 ft-lbs on all bolts
• Blue thread locker recommended
• Professional installation recommended if unfamiliar with suspension components

What’s Included

• Main front bracket
• Rear support bracket
• Wing nut
• (1) M12 x 1.25 x 80mm flange head bolt
• (1) M12 x 35 flange head bolt
• (1) M12 x 1.25 flange nut
• (1) M12 rivet nut
• (1) M12 x 1.75 x 25 flange head bolt
• M12 washer

How to Determine If You Need This Kit

1. Park on level ground
2. Measure from ground to center of frame-side track bar bolt
3. Measure from ground to center of axle-side track bar bolt
4. Subtract the measurements

If the difference is 1.5 inches or greater, this correction kit is recommended.

Summary

If you've lifted your 1996-2002 Toyota 4Runner, the Dr. KDSS B.O.T.C.K. Bolt-On Trackbar Correction Kit is a simple but critical upgrade to restore proper suspension geometry, improve driving confidence, and protect your investment. With a strong bolt-on design and no welding required, it's one of the easiest ways to correct rear suspension behavior on lifted builds.
