Diode Dynamics Stealth Bumper Lightbar Kit for Tundra (2022-2025)

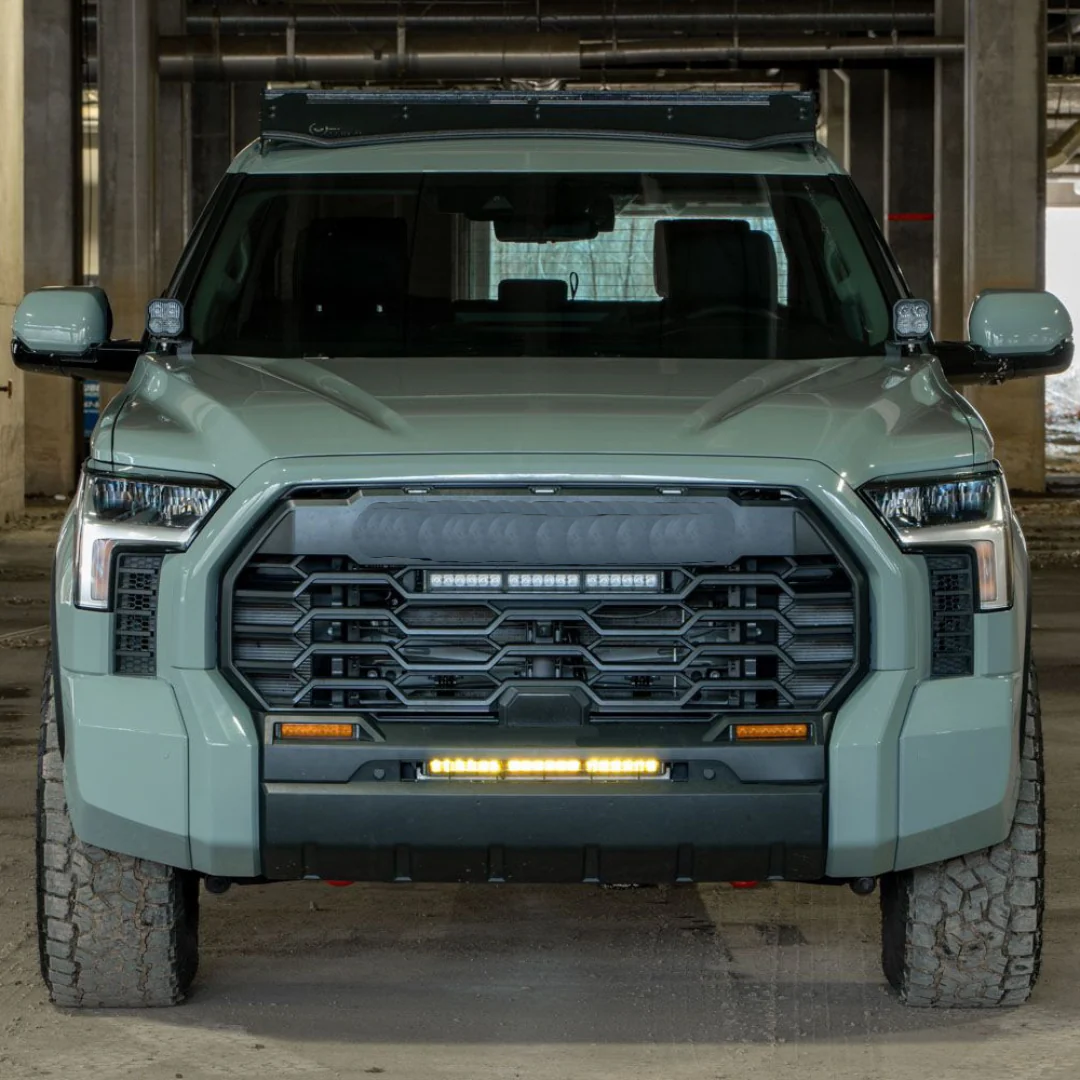

The Stealth LED Light Bar Kit for the 2022+ Tundra from Diode Dynamics allows you to easily mount a 18" light bar in the factory lower bumper opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit retains the factory lower grille for a clean, OEM-like appearance.
Features
- Direct fitment on 2022+ Toyota Tundra.
- Allows you to mount one 18" light bar in the lower bumper opening.
- CAD-designed for perfect fitment and OEM-like appearance.
- Utilizes existing mounting points for easy installation - no cutting or drilling required.
- Highly durable powdercoated steel construction.
- Plug-and-play wiring harness included to power light bars.
In the Box:
- One (1) Stealth SS18 Bracket Kit for 2022+ Toyota Tundra
- One (1) SS18 Stage Series 18" Light Bar
- One (1) Heavy Duty Lightbar Wiring Harness
- Installation Guide
Fitment
NOTE: This kit cannot be installed alongside the SS5 Grille CrossLink Lightbar Kit for the 2022+ Toyota Tundra.
- Make: Toyota
- Model: Tundra
- Years: 2022, 2023, 2024,
Specifications
- Beam Angle: Combo (Driving and Flood)
- Power (watts): 137.2
- Operating Voltage: 9-24V
- Current (amps @ 14V): 9.8
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP68 Waterproof
- Product Weight (lb): 9.20
- Shipped Weight (lb): 11.3
Installation
- Installation Time: 1-2 hours
- Tools Needed: Basic Toolset
- Modification: Basic Wiring Only
- Installation Guide: Click to download
Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 18" Combo Light Bar features a flood lens in the middle with two driving lenses on the outer edges.
