Blaze Off-Road Light Array One Piece Harness

Wiring multiple off-road lights together can quickly become complicated with amperage calculations, connector types, splicing, and switching limitations. The Blaze Off-Road Light Array One-Piece Harness eliminates that complexity by providing a fully pre-built, plug-and-play wiring solution designed to connect multiple light pods or bars into a clean, professional system.

Simply start at the light furthest from your switching system, plug each light into the harness, connect your power, ground, and optional backlight circuits, and you're ready to go. No complicated wiring, no special tools, and no advanced electrical knowledge required.

Features

• True Plug-and-Play Design: No crimping, splicing, or soldering required for most installations.
• Designed for Light Arrays: Perfect for roof rack lighting setups, bumper pod arrays, and multi-light off-road builds.
• Single or Dual Zone Options: Configure lights to run on one or multiple switches.
• Backlight Support Included: Backlighting circuits combined into a dedicated wire at no additional cost.
• Premium Components: Built using high-quality motorsports-grade wiring and connectors.
• Made in the USA: Manufactured to meet the demands of harsh off-road environments.
• Clean Installation: Reduces clutter and simplifies complex lighting installs.
• DIY Friendly: Designed so enthusiasts can install without professional wiring experience.
• Custom Built: Each harness is made to match your specific lighting setup.

Zone Configuration Options

Lighting "zones" simply refer to how your lights are divided across switches.

One Zone – All Lights Together

• All lights controlled by one switch
• Best for lower amperage setups

One Zone – With Relay Kit (Most Popular)

• Allows multiple lights on one switch
• Keeps amperage load off your switching system
• Recommended for higher power setups

Two Zones – Alternating Lights

• Example: White / Amber / White / Amber / White
• Allows independent control of different beam patterns or colors

Two Zones – Outside / Inside Layout

• Example: Flood or amber lights on outside
• Spot or white lights on inside

Custom configurations available upon request.

Installation Information

Installation typically requires:

• Connecting lights to harness
• Routing harness along mounting location
• Connecting ring terminals to switching system

Most installs require only:

• Phillips screwdriver
• Basic hand tools
• Zip ties for routing

Installation usually takes less time than routing the wiring.

Compatibility

Designed to work with switching systems such as:

• Garmin PowerSwitch
• Switch-Pros
• sPOD
• Similar auxiliary switch systems
• Factory upfitter switches (optional flying lead configuration available)

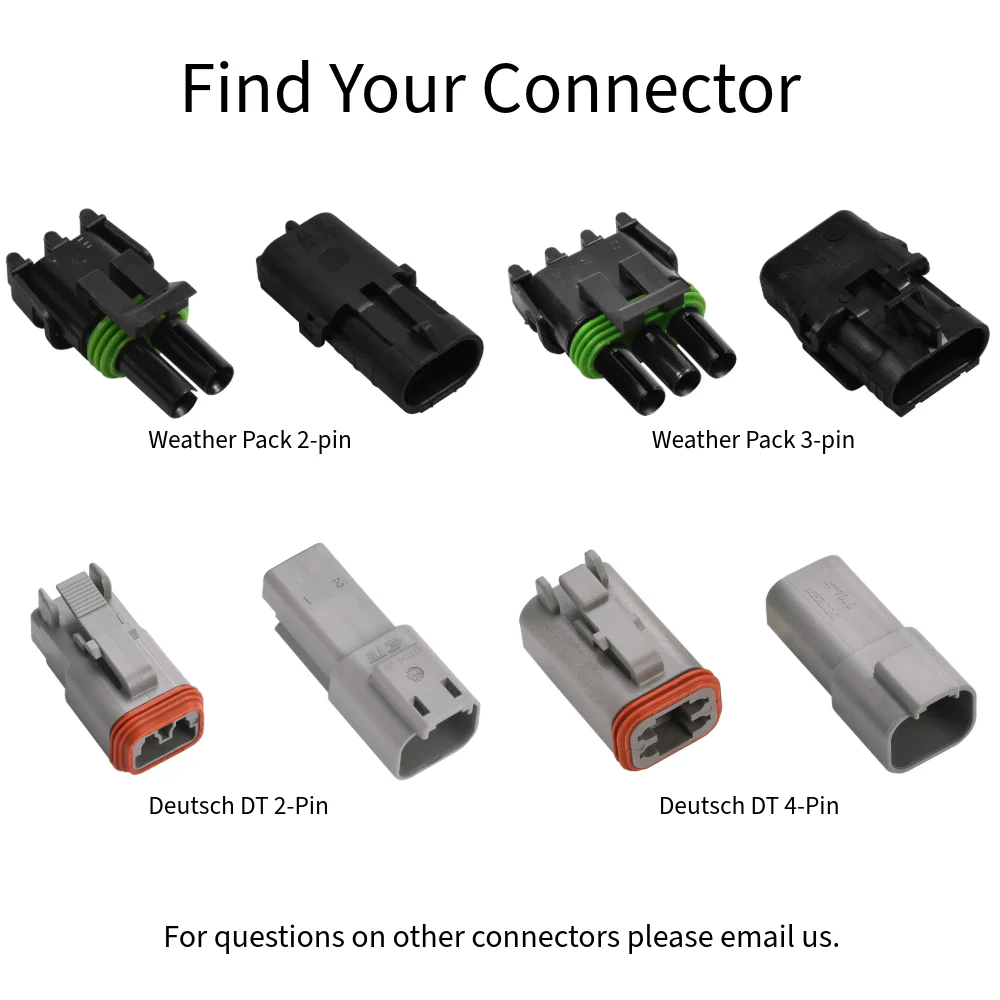

Common Connector Types Supported

Baja Designs Weather Pack 2-Pin:

• S1
• S2
• Squadron

Baja Designs Weather Pack 3-Pin:

• XL Series
• S8 Light Bars
• OnX6 Light Bars

DT 2-Pin:

• Morimoto pods
• Diode Dynamics light bars
• Rigid pods (non-backlit)

DT 3-Pin:

• KC backlit pods

DT 4-Pin:

• Baja Designs LP Series
• Diode Dynamics backlit pods
• SS5 Light Bars

DTP Connectors:

• Higher amperage light bars
• Custom builds available upon request

If unsure of your connector type, contact us before ordering.

Important Ordering Information (READ BEFORE ORDERING)

Because these harnesses are custom built:

You must include:

• Vehicle make/model/year
• Light brand and model
• Number of lights
• Switching system used
• Connector type (if known)

Orders built from incorrect customer information cannot be refunded or rebuilt.

Important Product Notes

• Low beam circuits are not supported on dual-intensity lights.
• Backlights will be combined into one circuit.
• Customer responsible for confirming amperage compatibility.
• Relay kits available for high amp setups.
• Harnesses designed primarily for under-hood switching systems.

Order Policies

• Made-to-order product
• Estimated lead time: 2–3 weeks
• 50% cancellation fee once production begins
• No cancellations or returns after shipment
• Modified harnesses are not eligible for return

Warranty

Blaze Off-Road harnesses include a limited lifetime warranty, subject to inspection and proper use.

Summary

If you're running multiple off-road lights and want a clean, reliable wiring solution without the headache of building your own harness, the Blaze Off-Road Light Array One-Piece Harness is the professional solution. Designed for easy installation and built with premium materials, this harness gives your lighting system the reliability your build deserves.
